![[Laser cut and engrave] Laser Engraving Test Card with Speed and Power Settings on Black Material](https://image-res.atomm.com/resource/xtool/community/attachment/xtool-community/be20cbca-3401-41f9-bb86-c996a5abe121.jpeg?x-oss-process=image/resize,w_1200,h_900,limit_0/interlace,1/format,webp/auto-orient,1)
Black aluminium business card UV test
Remix
Instruction

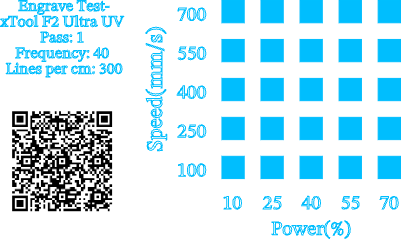

Card test for xTool F2U UV
.xcs
Application scenario
Laser processing (2min)
Machine & module
xTool F2 Ultra UV
5WMaterial used
1/64"(0.2mm) Black Coated Aluminum Alloy
117
1715
Information
Inspired by an F2 test for their IR settings, I decided to try the same using UV on my lovely new F2 Ultra UV.
This remix is based on
Black Coated Aluminum Card - IR Speed / Power Test Grid with QR Code
rdeluzuriagaInstruction
1
Step1
Preview
Open the template and place a black card on the work area.
Measure card for focus and position.
Run the process.
