![[Laser cut and engrave] Laser Engraved Metal Test Grid for Speed and Power Calibration](https://storage-us.atomm.com/resource/xtool/community/attachment/xtool-community/6f4a3151-a10e-4b27-962b-fc7f75943d1e.jpeg?x-oss-process=image/resize,w_1200,h_900,limit_0/interlace,1/format,webp/auto-orient,1)

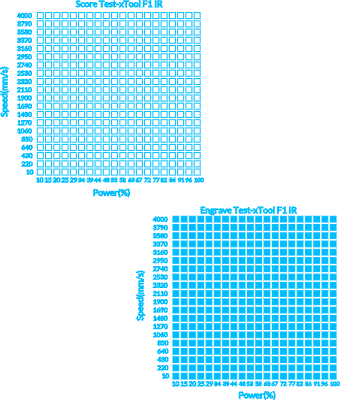

Aluminum IR engrave and score grid test
4mmaluminiumIRtest
.xcs
Show 2 more
Application scenario
Laser processing
Machine & module
xTool F1
2W, 10WCompatibles · 1
Material used
1/6"(4mm) 6061 Aluminum
1/13"(2mm) 6061 Aluminum
1/8"(3mm) 6061 Aluminum
1/5"(5mm) 6061 Aluminum
6061
9
229
Information
Aluminum IR engrave and score grid test, for the life of me couldn't find a grid test for this material. It's just a basic aluminum plate, I don't have the other thicknesses but I bet it would yield the same results. Used the F1. I do have all of the words grouped together so if you want to move each test individually I recommend ungrouping them.
