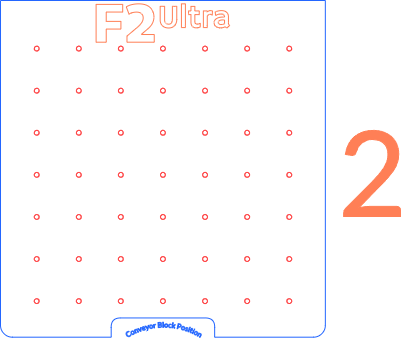

F2Ultra Work area protection jig
Instruction
F2Ultra Work area protection jig
.xcs
Application scenario
Laser processing (80min)
Machine & module
xTool D1 Pro
20W
xTool P2
55W
xTool P2S
55W
xTool P3
80WCompatibles · 10
Material used
1/8"(3mm) Basswood Plywood
1
9
Information
1. Prevents accidental damage from objects placed in the work area or the laser.
2. Creates 5mm-wide grids to visually check and align materials at right angles.
3. Clearly indicates the designated positions for RA2 A-C and L.
4. The enclosure can be sealed with the conveyor fixing jig still attached.
Google Translate
Instruction
1
Step1
Regarding jig mounting Threaded hole: 4mm Stainless steel M4 x 15mm screws (6-7 pieces) can be installed. Even if they are a little tight, the screws will trim them down each time you attach the jig.
