[Laser cut and engrave] RA2 Rotary Base Jig
Project made with xTool S1 machine for Laser cut and engrave.

RA2 Rotary Base Jig

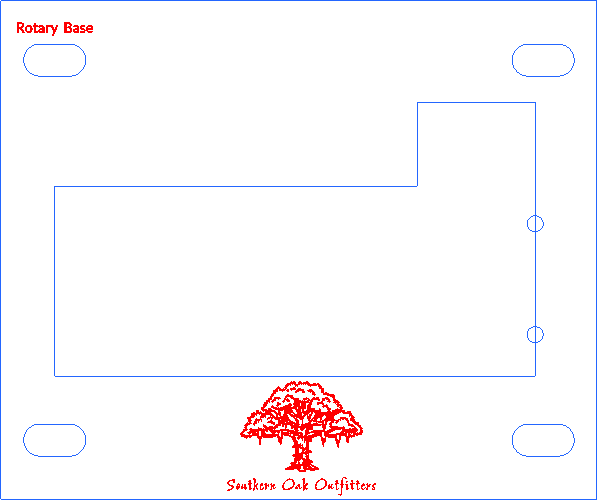

RotaryBaseJig.xcs
RotaryBaseJig
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
10W, 20W, 40W
Compatibles · 11
Material used
1/8"(3mm) Basswood Plywood
167
1343

Information

      Square your ra2 base the same way each time. Customize the engraving if you want with your logo, cut the magnet holes, cut the perfect square.
tool base
rotary base
laser cutting
precision tool accessory
engraving machine accessory
