[Laser cut and engrave] Laser Cut Foam Tool Organizer Insert for Workshop Storage — Project made with xTool D1 Pro,xTool P2,xTool P2S,xTool P3 machine for Laser cut and engrave.

RA2 tool (F2Ultra/F2UltraUV-magnetic fan guard) case

Instruction

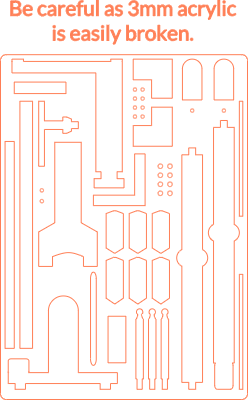

RA2 tool case

.xcs

Application scenario

Laser processing (60min)

Machine & module

xTool D1 Pro

20W

xTool P2

55W

xTool P2S

55W

xTool P3

80W

Compatibles · 1

Material used

1/8"(3mm) Basswood Plywood

Information

      If you have a storage case for RA2 parts and tools, you can easily see the components and the relationship between the screws.
The basswood is colored with acrylic paint to prevent the base from getting dirty.
Google Translate

tool storage solution

Instruction

Step1

In addition to the RA2, there's also space for the F2Ultra/F2UltraUV magnetic fan guard and other tools.
Regarding the material:
Acrylic panels are not recommended because they are weaker than other plastics.
I used them initially, but the parts with tight spacing broke when inserting or removing them.

Please look at each canvas and notice that there is no space to store the second and subsequent canvases because the height needs to be adjusted to fit each part.
We recommend using EVA board or XTOOL packaging material for the second and subsequent canvases to prevent scratches on the parts.
