Laser Cut Wooden Hip Flask Jig for Precise Engraving
Instruction
HipFlaskJigwithSettings
.xcs
Application scenario
Laser processing
Machine & module
xTool M1 Ultra
10WCompatible xTool Machine
New
M2
10W, 20WF2 Ultra UV
5WF2
15WP3
80WF2 Ultra
40WF1 Ultra
20WM1
5W, 10WD1
5W, 10W, 20WD1 Pro
5W, 10W, 20W, 40WP2
55WF1
10WS1
10W, 20W, 40WM1 Ultra
20WP2S
55WMaterial used
1/8"(3mm) Basswood Plywood
Black Hip Flask 8oz(240ml)
56
1292
Instruction
1
Step1

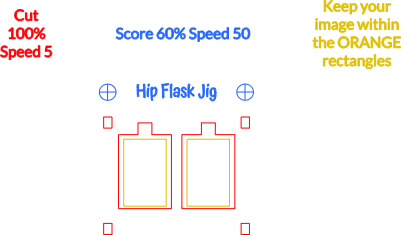

Set 3mm Plywood and Score/Cut the jig. Remove CUT parts.
Remember to turn OFF the output for the jig parts.
Import image and filter it “Black and White”. Then trace that image.
Delete the original image.
Scale the image to fit inside the ORANGE rectangles.
Have fun and let me know if it needs any more work.
