Bench Dogs / Dog hole jig for MFT - 20mm

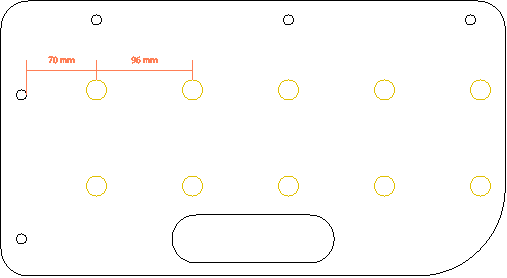

Benchhole-PocketholeJig-20mm
.xcs
Application scenario
Laser processing (6min)
Machine & module
xTool P2S
55WCompatible xTool Machine
M2
10W, 20WF2 Ultra UV
5WP3
80WF2 Ultra
40WF1 Ultra
20WM1
5W, 10WD1
5W, 10W, 20WD1 Pro
5W, 10W, 20W, 40WP2
55WF1
10WS1
10W, 20W, 40WM1 Ultra
10W, 20WMaterial used
5/16"(8mm) Basswood Plywood
16
1258
Information
Benchhole / Pockethole jig for MFT - 20mm. Use a router to edge trim the holes to your own workbench after pre-drilling it. I used some 10mm dowels to align the corner of the bench, but anything 10mm thick can be used.
