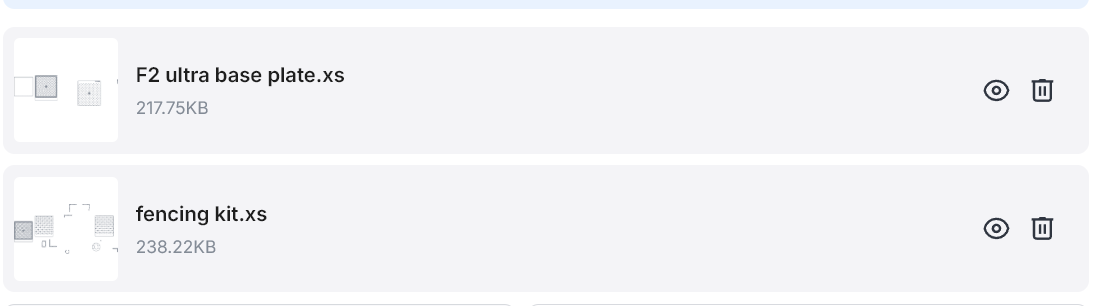

F2 ultra base plate.xs

F2 ultra base plate

.xs

Show 1 more

Application scenario

Laser processing

Machine & module

xTool M2

10W

Compatible xTool Machine

New

M2

3W, 20W

F2 Ultra UV

5W

F2

5W, 15W

P3

5W, 80W

F2 Ultra

40W, 60W

F1 Ultra

20W

M1

5W, 10W

D1

2W, 5W, 10W, 20W

D1 Pro

2W, 5W, 10W, 20W, 40W

P2

55W

F1

2W, 10W

S1

2W, 10W, 20W, 40W

M1 Ultra

10W, 20W

P2S

55W

F2 Ultra (Single)

60W

Material used

1/8"(3mm) Frosted Black Acrylic

1/8"(3mm) Black Acrylic

gift

15

808

Information

      I made this Plate, so it can either be 3D Printed or Cut on the M2 laser.

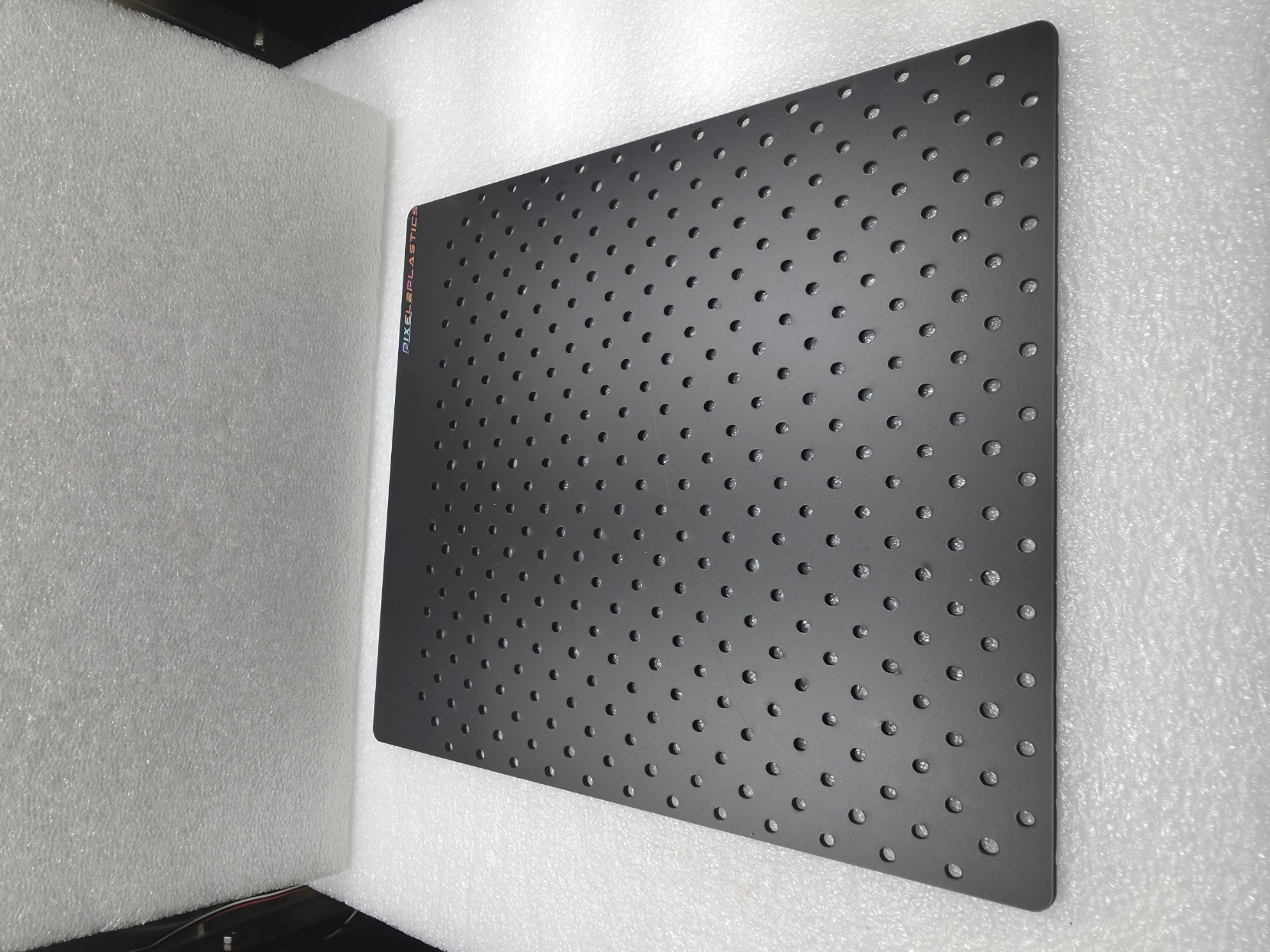

It covers Almost all of the baseplate on the F2 ultra laser's.

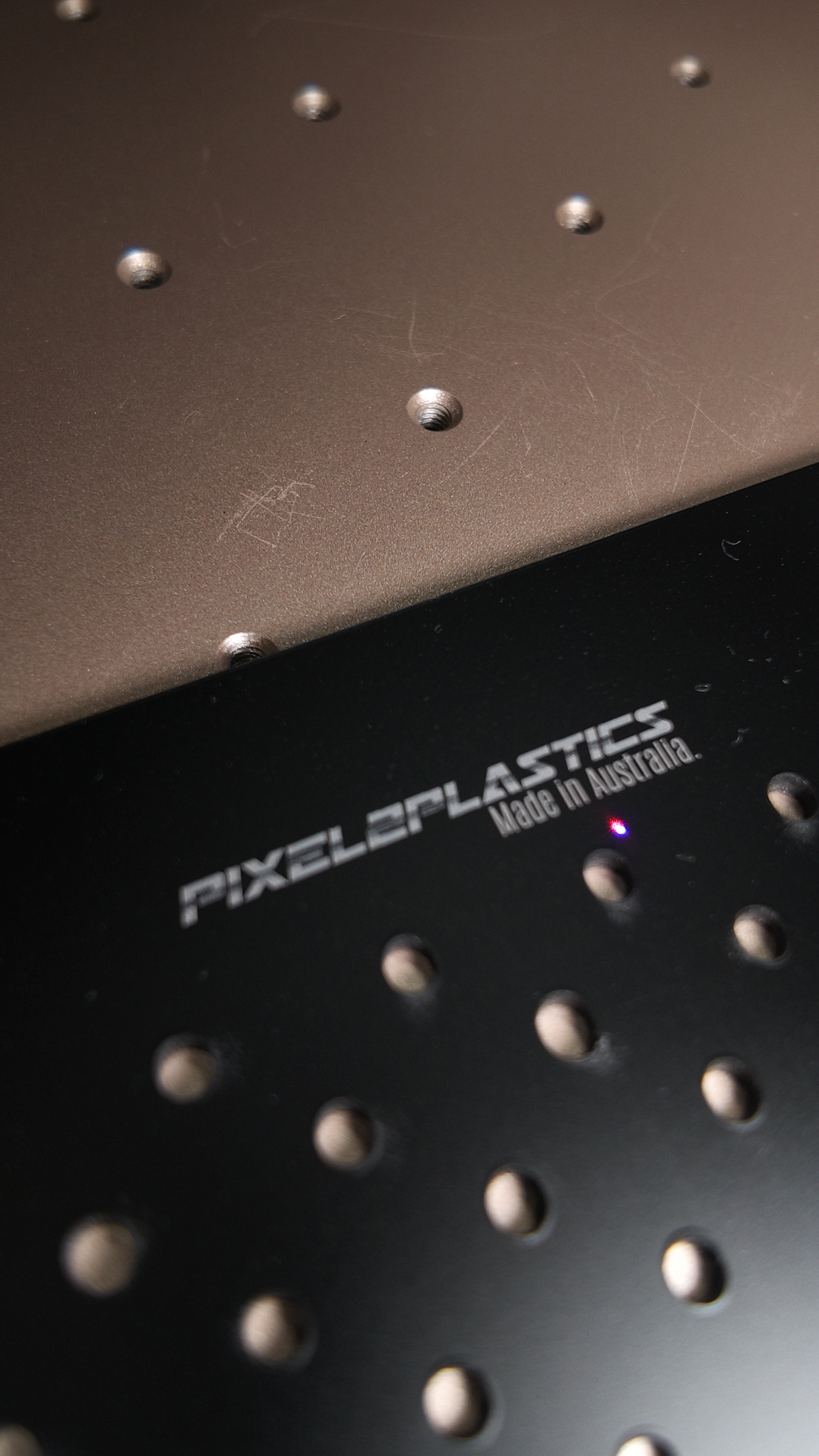

It keeps the stock 35mm square grid holes but also add's extra holes that can be Tapped with an M4 tap.

Some holes are meant to be 4.1mm - these do not need to be tapped and will use existing threads in the baseplate.

The rest/majority of holes need to be 3.4mm - these will be tapped to M4.

Anything higher than 3.44 and you may not get good threads.

It will fit the F1 Ultra but the Lid will not close completely.

Social Media Share:

FB: https://www.facebook.com/reel/1634957224250440

IG: https://www.instagram.com/p/DZ7cyAbhgYO/

YT: https://youtube.com/shorts/V3IZhzqb-34

F2 ultra baseplate

base plate protection

square grid holes

Fencing squaring jig tools

1PercentMakerChallenge

Instruction

1

Step1

Compatability: This can be cut on any gantry laser.

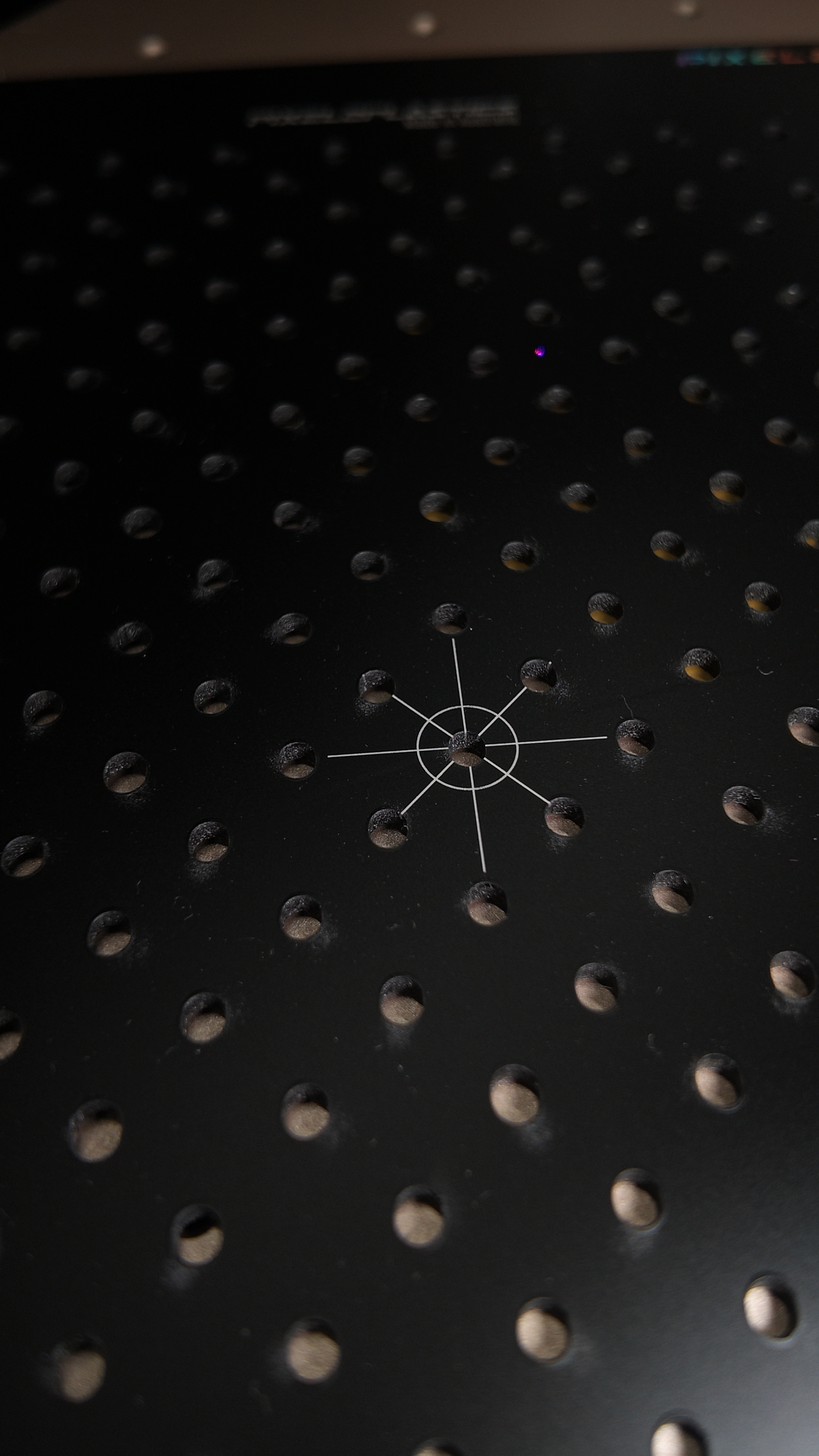

Important : When engraving the Crosshairs in the middle, place a alu business card under the plate, so you don't engrave the baseplate!

https://youtube.com/shorts/V3IZhzqb-34

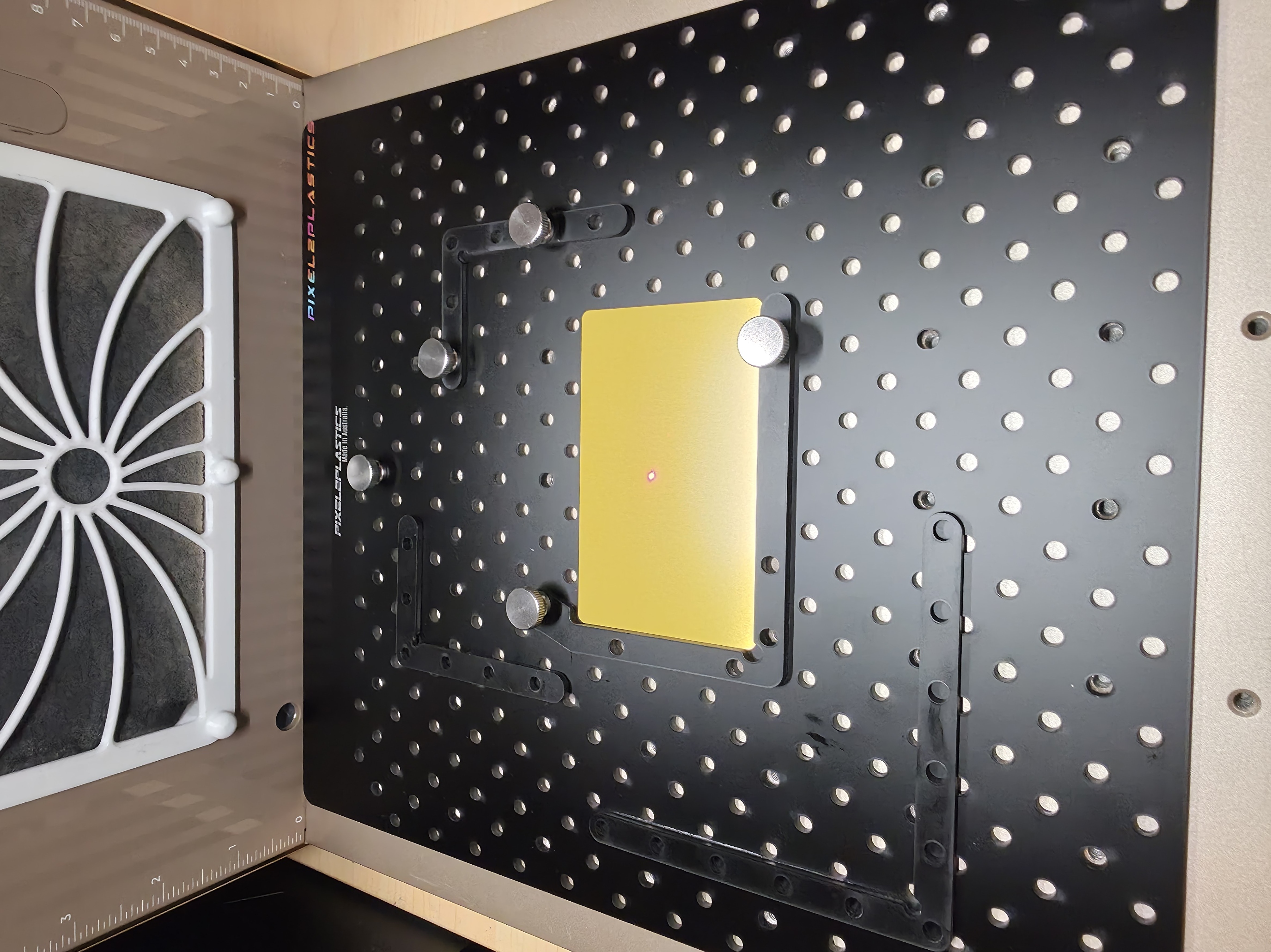

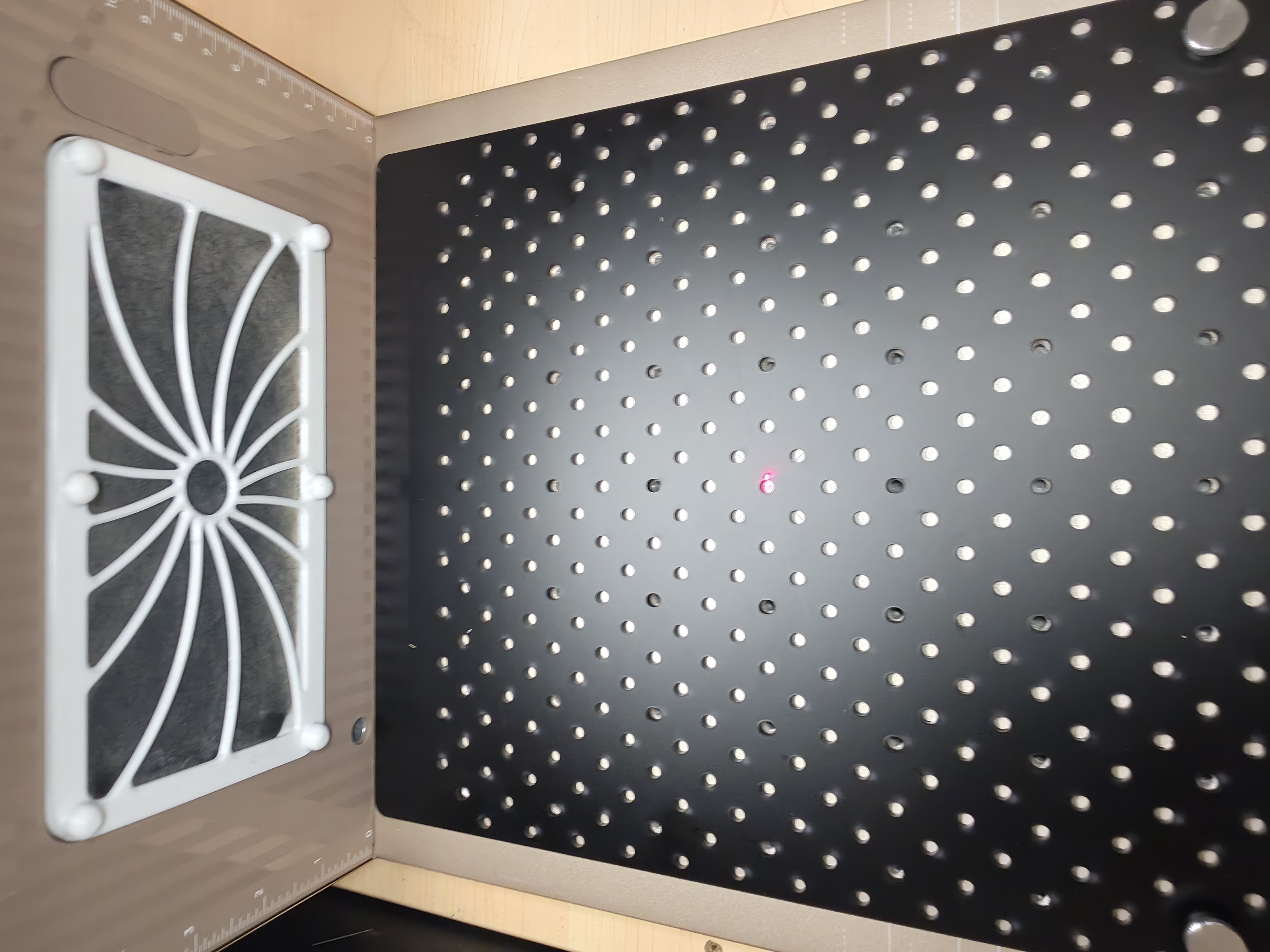

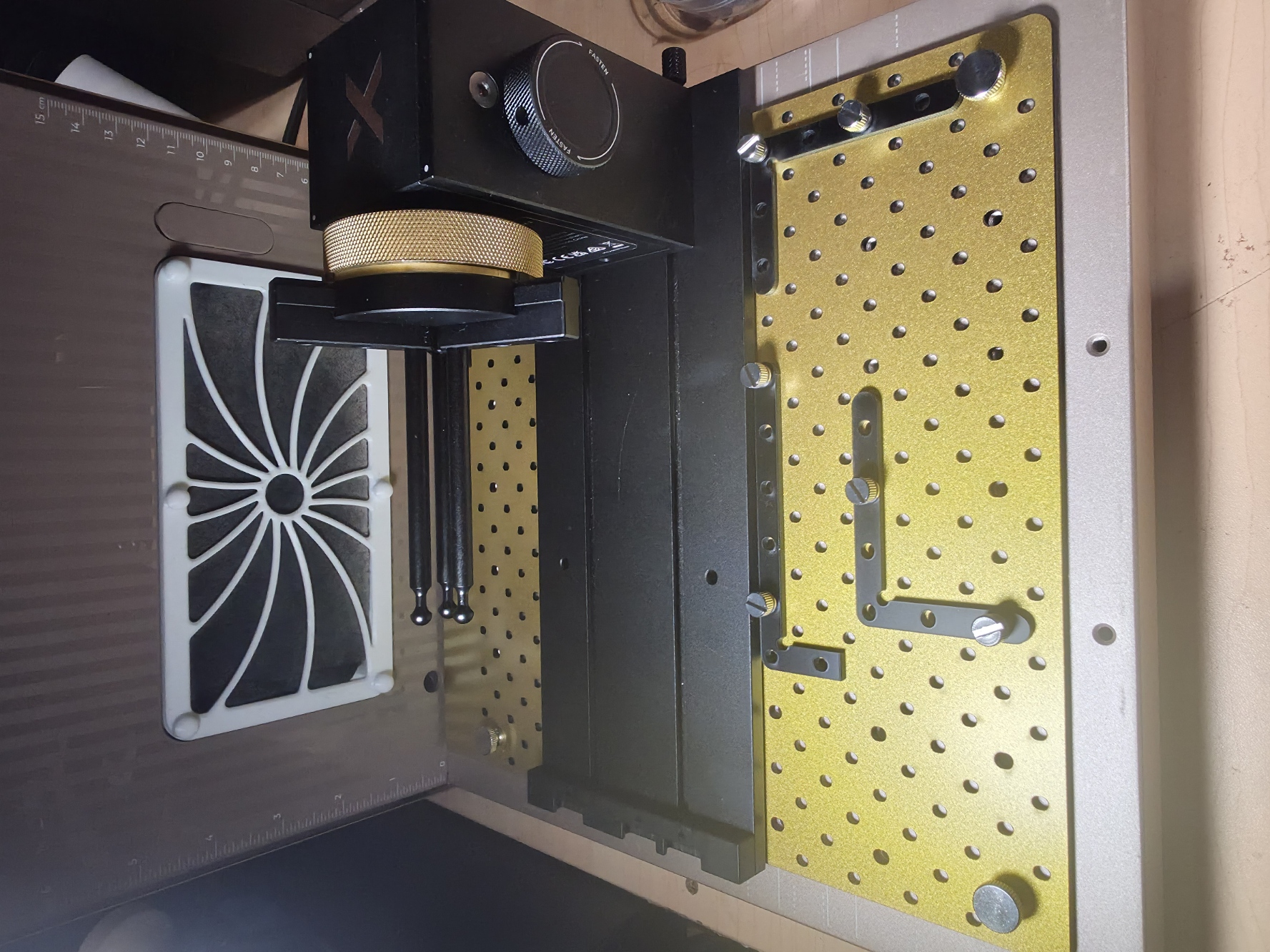

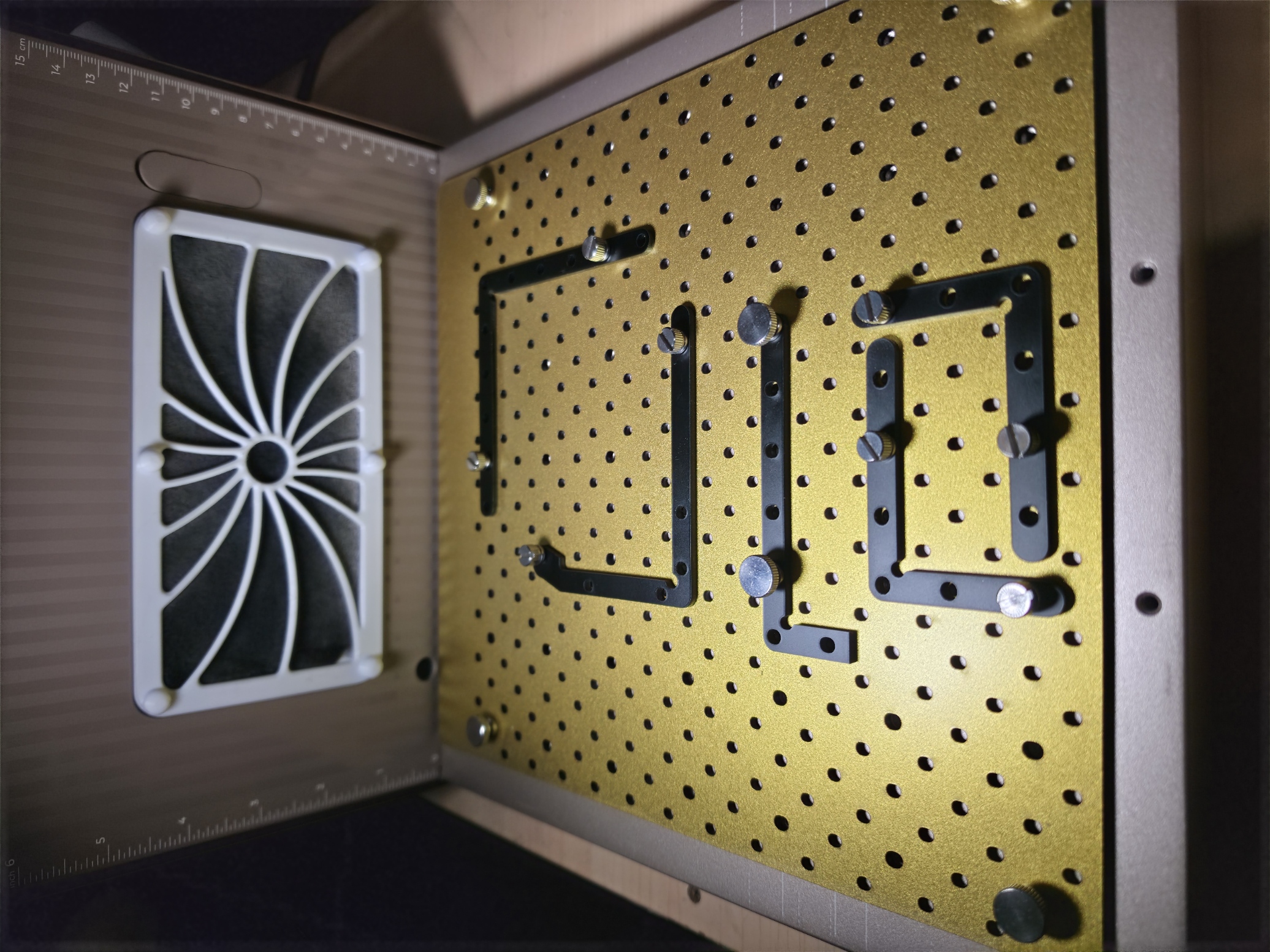

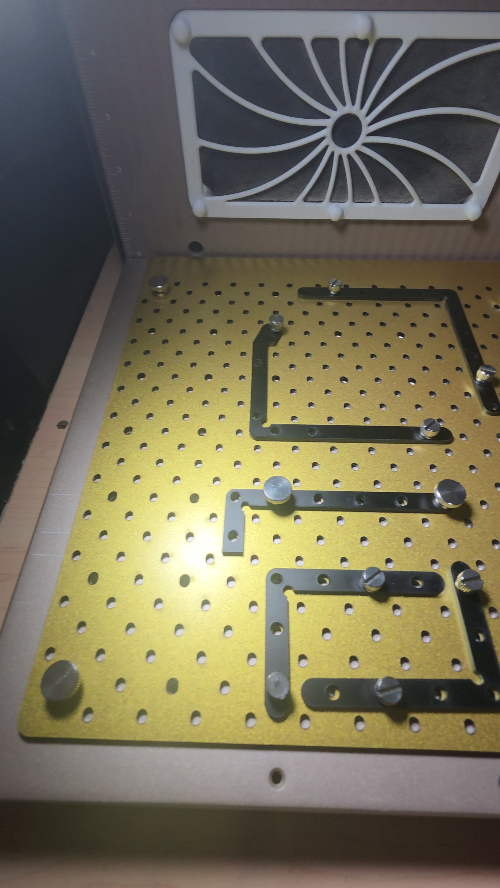

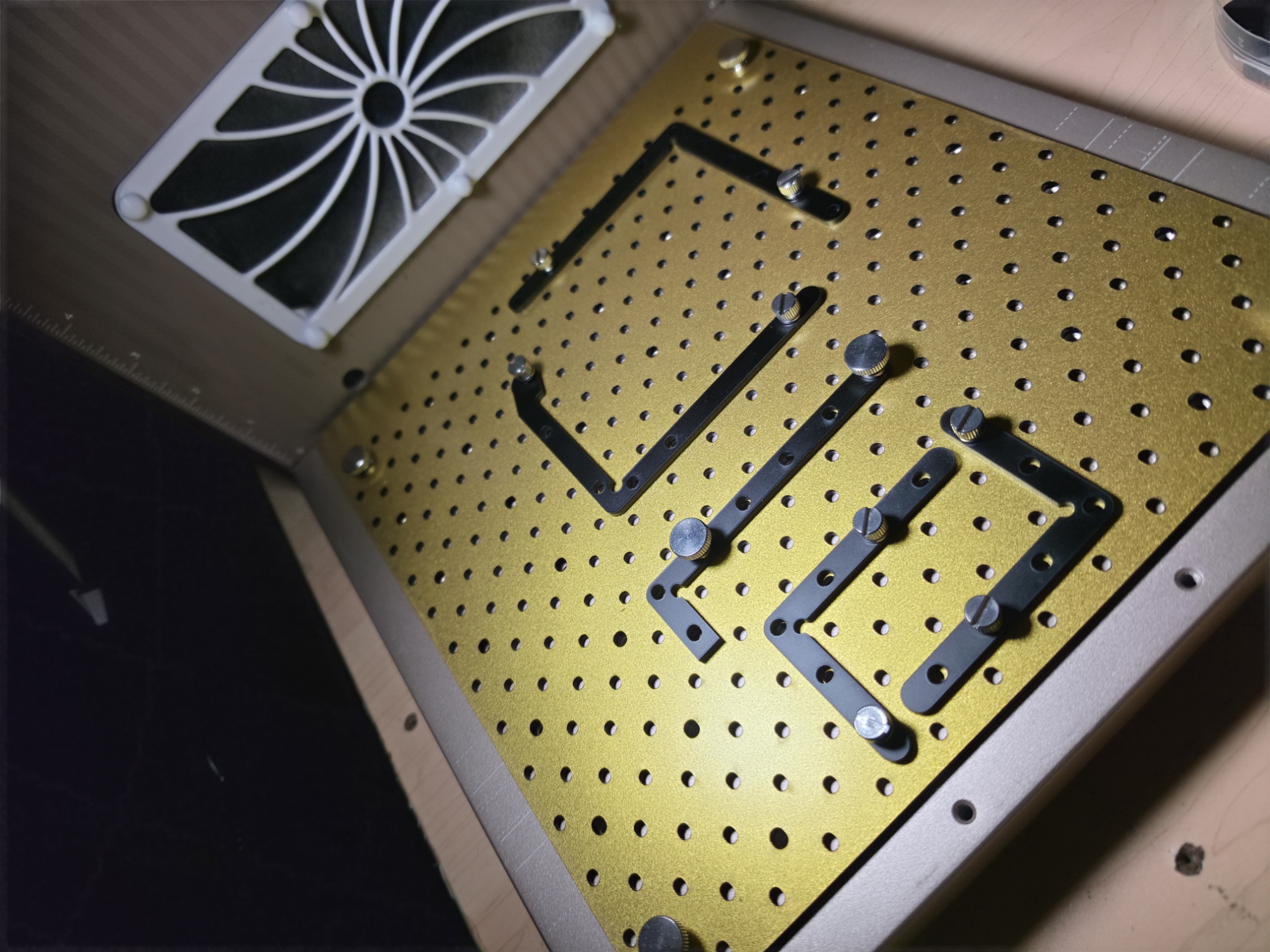

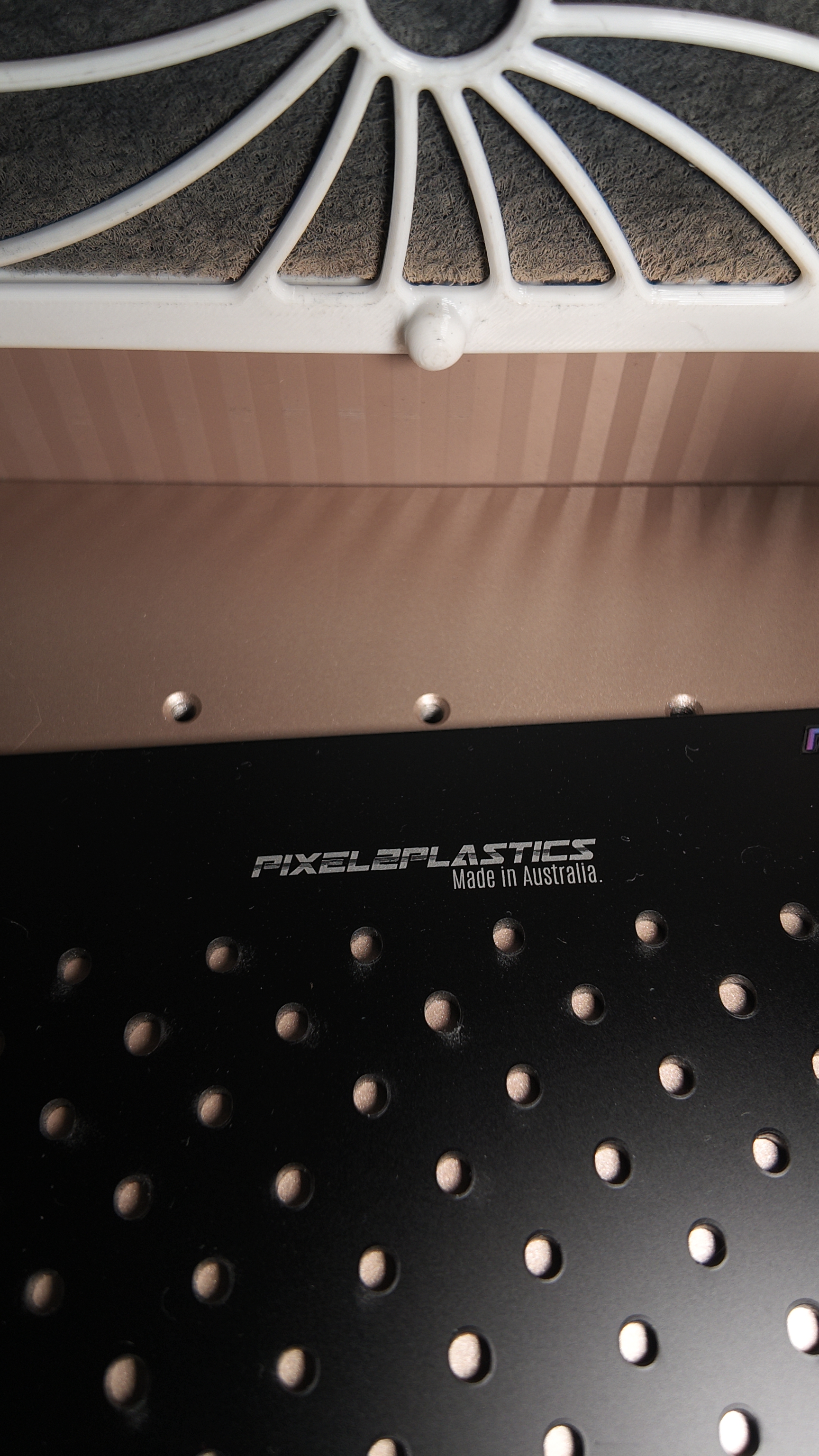

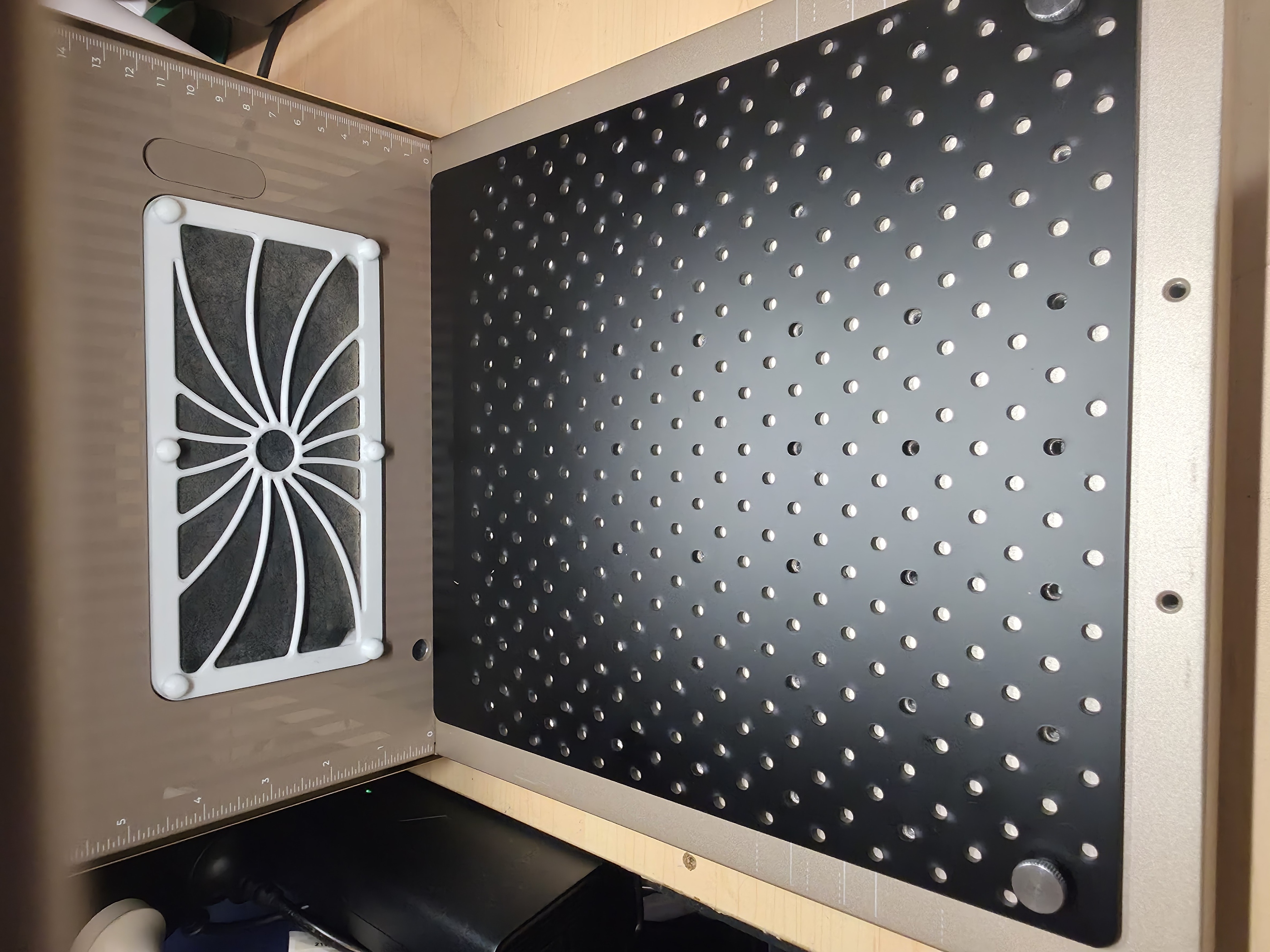

The purpose of this baseplate is to protect the laser's base surface during engraving. It uses the same hole spacing as the laser's base plate, so you can still place your other jigs on top.

You can also use this to square your RA3 rotary tool.!

1. Material selection:

I have tried this with Both Gold to Black acrylic and Just standard Black acrylic.

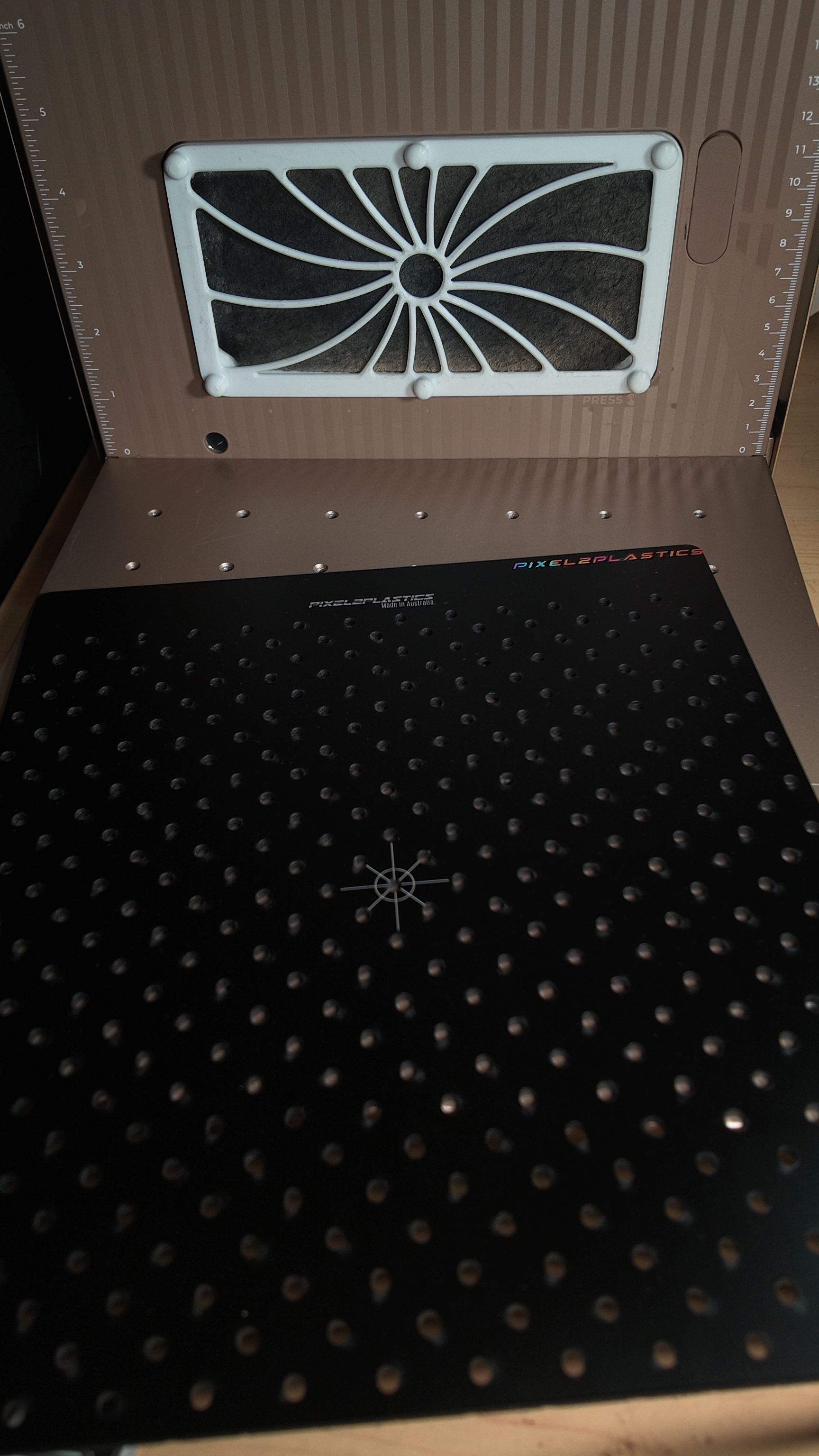

Engrave the central crosshairs on your Fiber laser or the laser, that you will be using the baseplate on.

Do not Not engrave it on the machine used to cut the plate if possible.

Video:

The Holes and the outline need to be set to cut, rest are Engrave only.

Squaring tools are in the 2nd File that was uploaded separately.

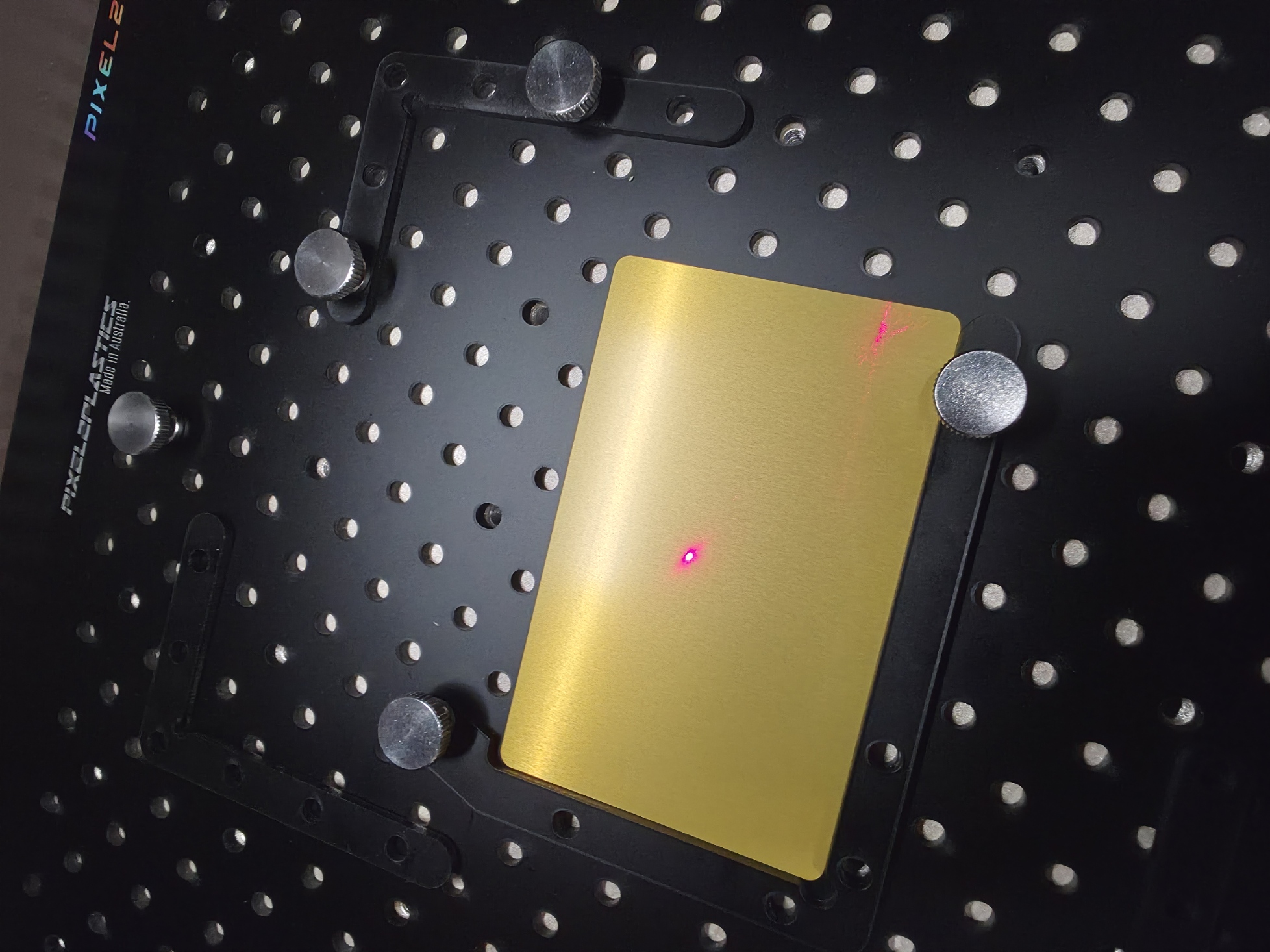

These are for 50 and 40mm Coins:

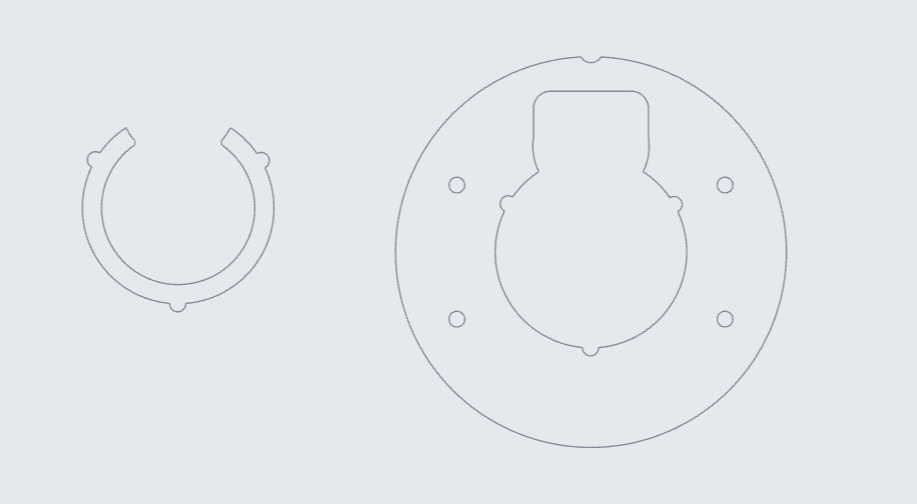

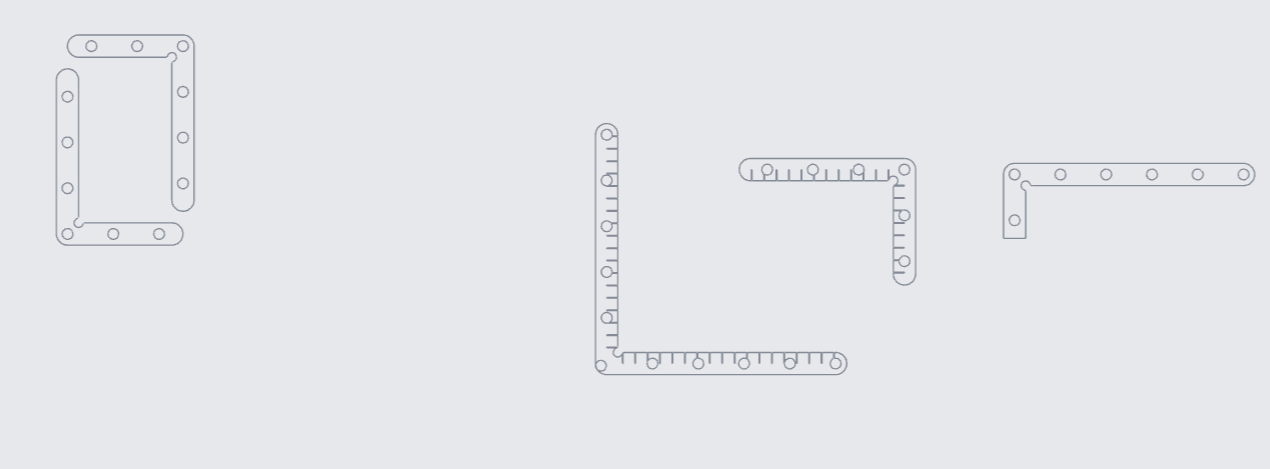

Angled Squaring pieces:

These are for Metal business Cards:

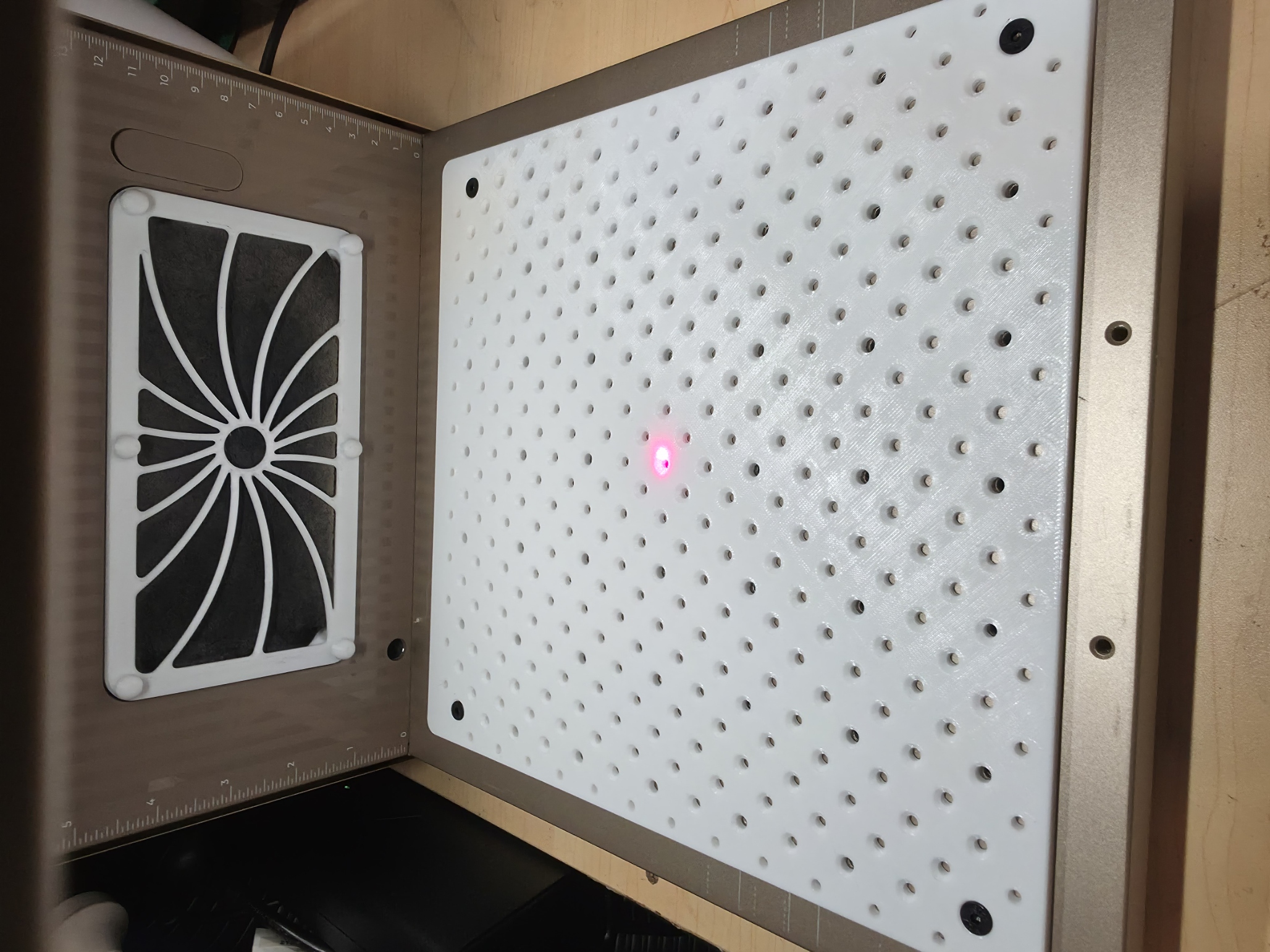

3D Printable versions:
