30mm Round Keychain Jig for P2S, F2 Ultra, and Others

Instruction

30mm Round Keychain Jig.xs

30mm Round Keychain Jig

.xs

Application scenario

Laser processing

Machine & module

xTool P2S

55W

Material used

1/8"(3mm) Basswood Plywood

1/16th basswood

bar magnet

gift

5

747

Information

      Jig for 30mm round keychains.

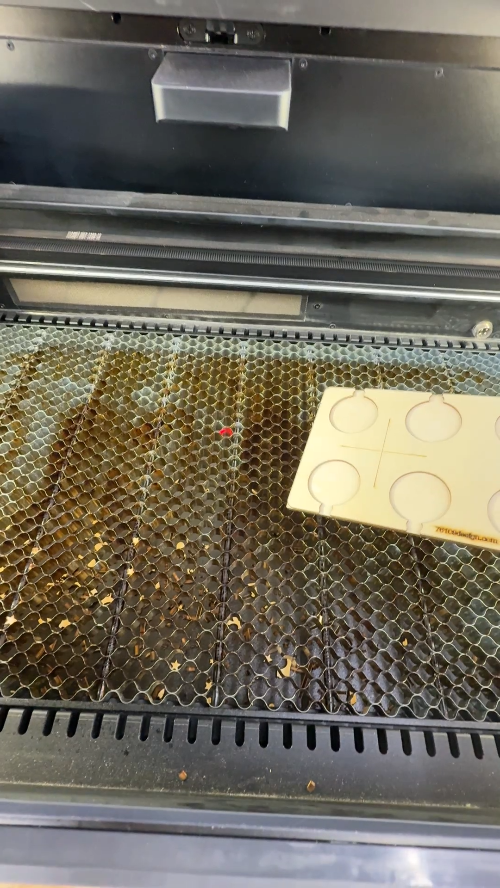

The jig is composed of 2 halves, a top and bottom. These halves are meant to be joined together. The top half is 1/16" (1mm) thick basswood and has provisions for 10 30mm round keychains (~1.5mm thick) with slots for the ring to hang off so the keychain itself lays flat. The bottom half is 1/8th" (3mm) thick basswood and has a provision for a 60Lx10Wx3H mm bar magnet to help hold the assembly in place. There are also 2 alignment crosses that will help you visually align the jig with your P2S's camera and onscreen grid or by using the framing function in your F2 Ultra. For the P2S I recommend you take a stitched close up shot for best detail and alignment.
