      # 6 Business Card Jig for xTool F2 Ultra UV

Increase your productivity with this precision-designed 6 Business Card Jig for the xTool F2 Ultra UV. Designed specifically for repeatable, accurate engraving, this jig securely holds up to six standard business cards at once, helping you complete larger batches with confidence.

Constructed from three layers of precision laser-cut plywood, the jig is easy to assemble using wood glue. The integrated easy-lift cutouts allow you to remove engraved cards quickly without damaging the edges.

The included I-shaped alignment jig works together with the xTool F2 Ultra UV's original L-shaped alignment tool and two Easy Screws from the Crystal Laser Module to create a reliable positioning system for consistent results every time.

## Features

* Holds 6 standard business cards
* Precision laser-cut plywood construction
* Three-layer laminated design for durability
* Easy-lift finger cutouts for quick card removal
* Includes I-shaped alignment jig
* Fast and simple assembly with wood glue
* Designed specifically for the xTool F2 Ultra UV
* Provides accurate and repeatable positioning for batch engraving

**Note:** Wood glue, the xTool F2 Ultra UV L-shaped alignment tool, and the two Easy Screws from the Crystal Laser Module are required for assembly and installation but are not included with this digital design.

Instruction

Step1

6 Business Card Jig Assembly Instructions

Thank you for downloading this 6 Business Card Jig.

This jig is designed for the xTool F2 Ultra UV laser and allows you to engrave up to six business cards with consistent positioning and repeatable results.

Materials Required

Wood glue

xTool F2 Ultra UV L-shaped alignment tool (included with your laser)

2 Easy Screws from the Crystal Laser Module

Clamps or heavy objects (optional, while the glue dries)

Package Contents

3 precision-cut plywood layers

1 I-shaped alignment jig

Easy-lift card cutouts for quick card removal

Assembly Steps

Lay the three plywood layers on a flat surface.

Apply a thin, even layer of wood glue between each layer.

Carefully align all outside edges so the three layers are perfectly flush. Accurate alignment is important for proper card positioning.

Press the layers together and clamp them or place a heavy object on top until the glue has completely cured according to the glue manufacturer's instructions.

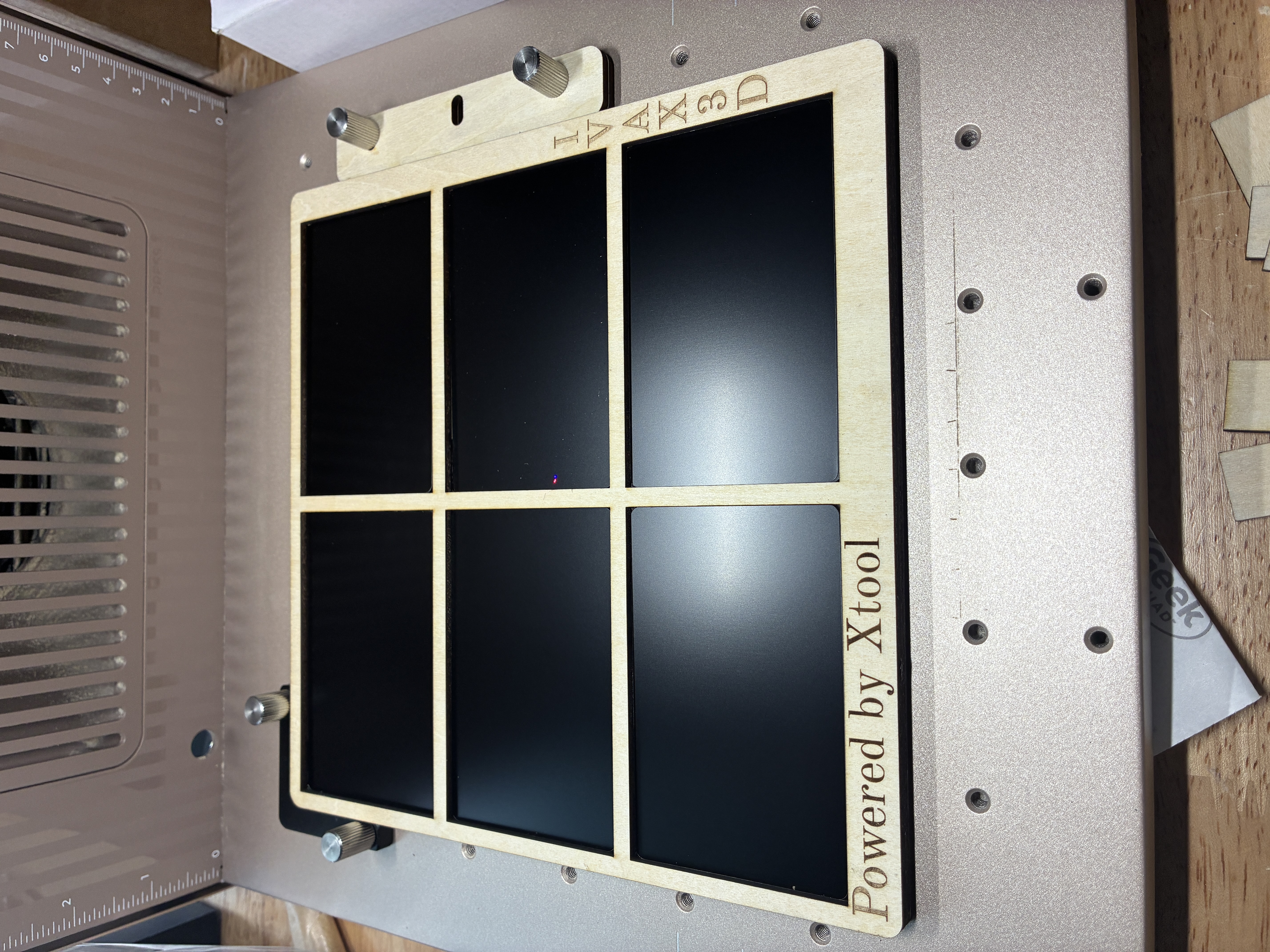

Once the glue has dried, place the jig inside your xTool F2 Ultra UV.

Position the jig using the original L-shaped alignment tool that came with your laser.

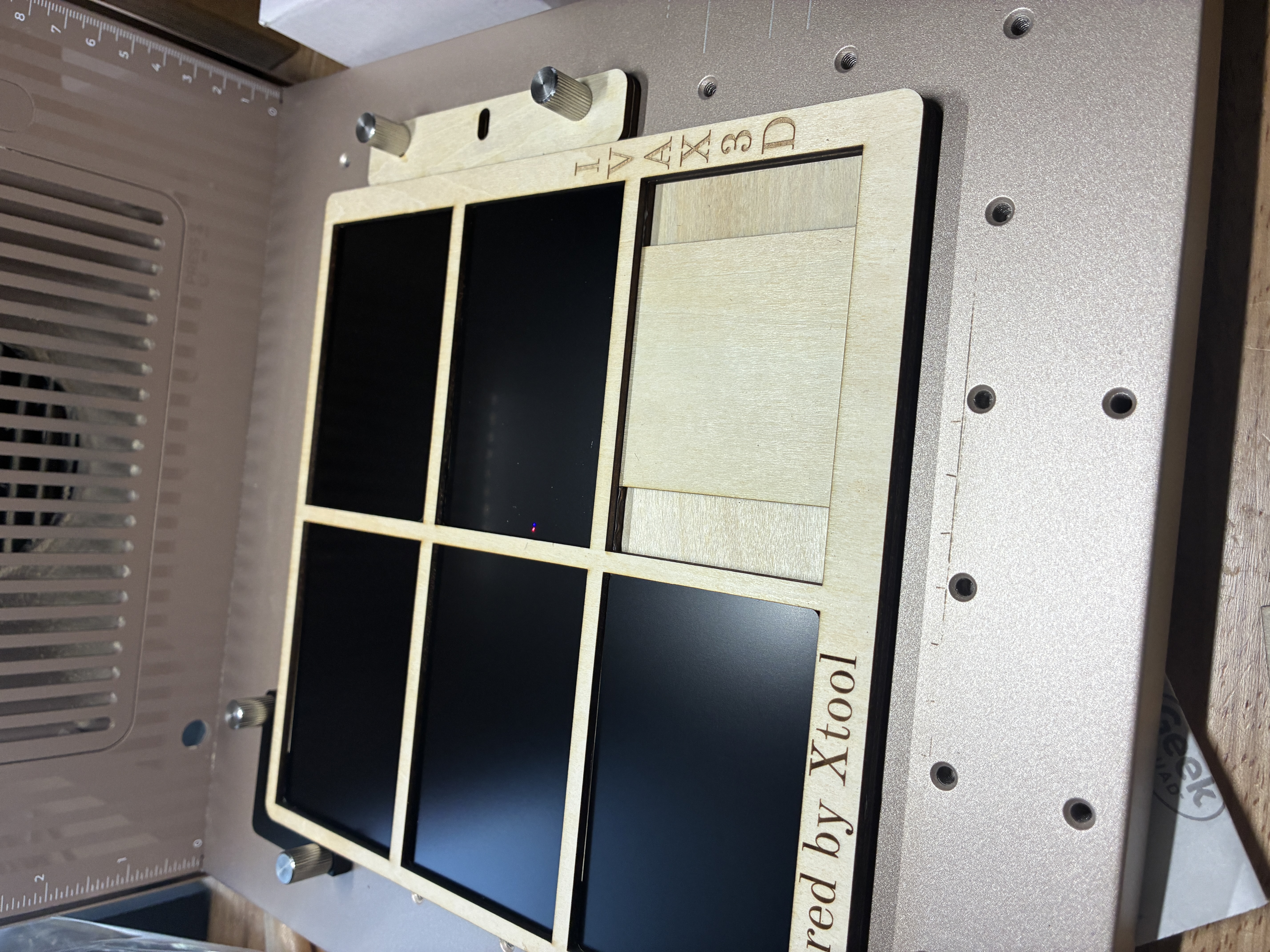

Install the included I-shaped alignment jig using the two Easy Screws from your Crystal Laser Module. This creates a repeatable reference point so the jig can be positioned accurately every time.

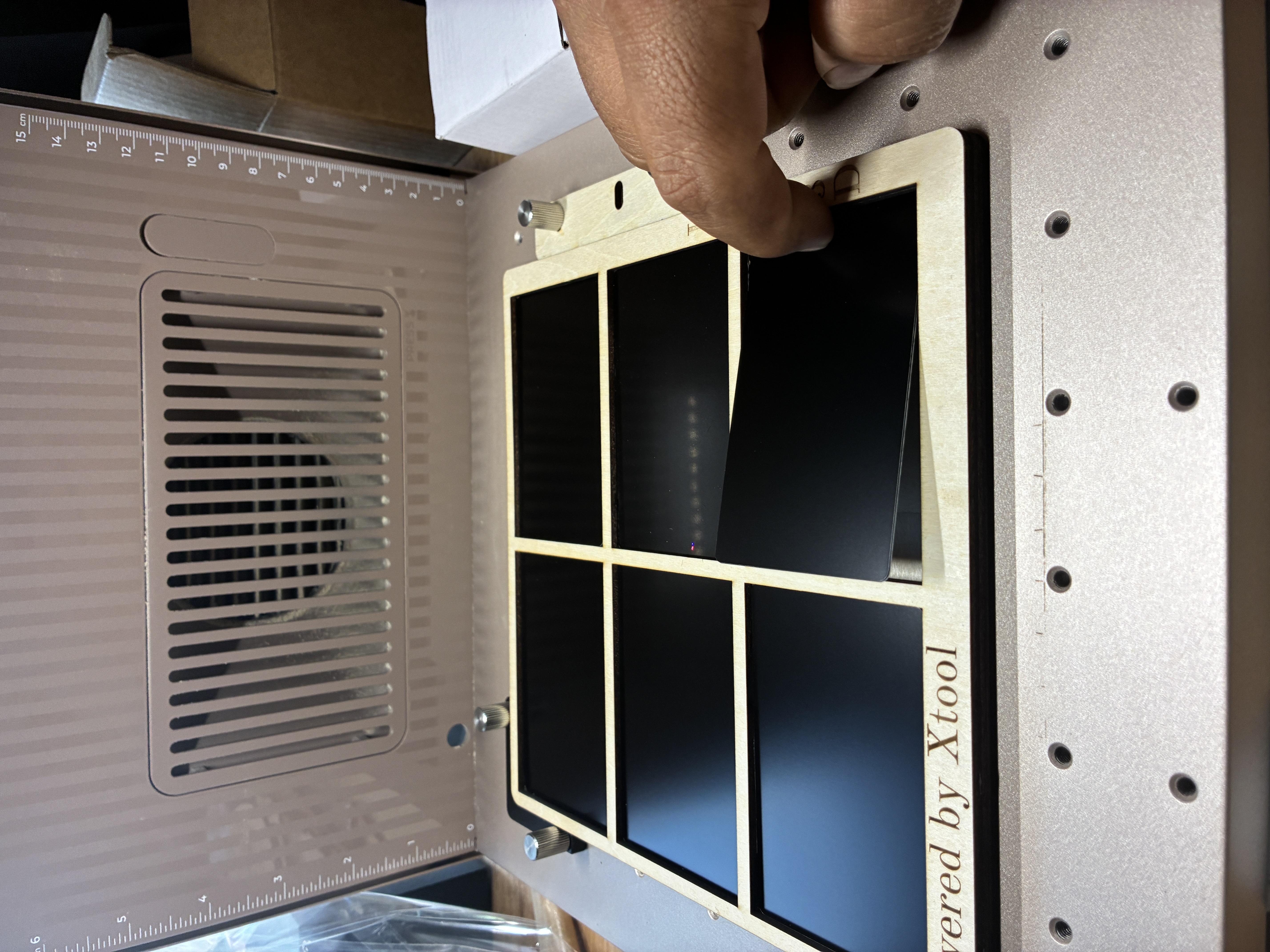

Insert up to six business cards into the jig. The easy-lift cutouts make removing finished cards quick and effortless after engraving.

Your jig is now ready to use. Enjoy fast, accurate, and repeatable engraving with minimal setup time.
