signboard regarding Father's Day. (without wall mounting)

Instruction
Vaderdag.xcs
Vaderdag
.xcs
Application scenario
Laser processing
Machine & module
xTool P2S
55W
Compatibles · 7
Material used
3mm MDF Board
3mm Basswood Plywood
3mm Blue Mirror Acrylic
3mm Green Acrylic Sheet
3mm Green Acrylic Sheet(Opaque,Glossy)
3mm Light Gold Mirror Acrylic
3mm Light Gold Mirror Acrylic (5pcs)
3mm Silver Mirror Acrylic
3mm Silver Mirror Acrylic (5pcs)
2
130
Information
      For Father's Day I created a (hanging) sign, where the letters "Father's Day" are the first letters of an appropriate word. To give the sign a beautiful look, I worked with different types of wood, acrylic and mirror acrylic.

In another creation, I also made a matching wall bracket.(https://www.atomm.com/template/55728-wall-bracket-for-fathers-day-wall-sign )

Instruction
1
Step1: Overview.
Preview
Preview

Step 1 is a logical step.

First print all the parts and then you will find an overview here, how everything comes together and fits together. In the other steps I will come back to that step by step.

This is purely intended as an overview

2
Step2: Let's go: glue the parts with large compartments on centerplate
Preview
Preview

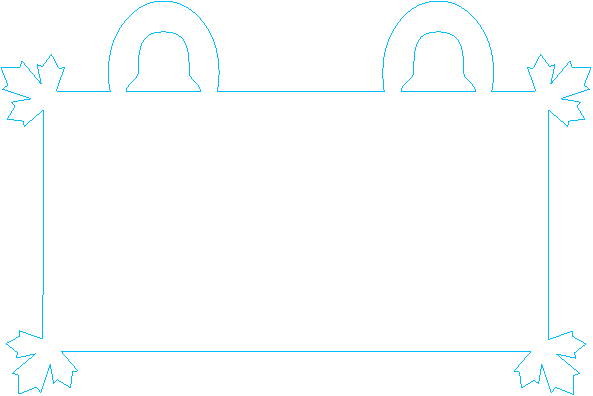

We start with the base. This is the first complete frame of MDF, which only concerns the outline of the board. This will also become the middle part of the board.

For convenience, we will now call this the center plate

On this we glue, with wood glue, the next part, from which the largest compartments in the middle are cut out.

We do this on both sides of the center plate.

Tip: always apply the glue to the part you are going to glue and not the construction itself.

This way, surfaces that still need to be used, or where other things need to be used later, remain (still) free of (dried) glue.



3
Step3: Placing the large acrylic pieces
Preview
Preview
Preview

Now glue the large acrylic pieces into the resulting open areas. Also do this on the other side of the  center plate.

If you want to hang your creation outside, it is important to protect it from moisture and of course use waterproof glue.

The construction that is already light in front of you, will be treated again later. You can also treat this once now. However, you must then ensure that the protective film is still on the acrylic.

Acrylic and varnish are not friends of each other. When the varnish is dry, you can remove the plastic from the acrylic

If you want to use it indoors, come on, you can now remove the plastic from the acrylic.



4
Step4: Protection against moisture
Preview

Protection against moisture

If you want to hang your creation outside, it is important to protect it from moisture and of course use waterproof glue.

It is now also smart to spray the front panels with varnish. This makes the panel a bit darker and it is better protected against weather influences.



5
Step5: Placing frond plate
Preview
Preview

It's time for the front. We also stick this on the front and back of the construction.

Note:

Both sides of the board are not identical. So make sure you glue the right part on the right side of the center plate.

Otherwise the text will not match the acrylic on the bottom and the "mounting eyes" will not match each other

Here olso, spread the glue on the part you are going to apply. This way you get a good (waterproof) connection with the acrylic and wood and you also ensure that you do not immediately have problems in inserting the pieces in the beer glass and figure mirror acrylic.

(thas was the case with me,when gluing the front to the structure on this side of . Hence this comment)

6
Step6: Placement of acrylic mirror
Preview
Preview

We are olmost there.

If you plan to use the board outdoors, leave the protective film on the mirror acrylic!

Glue the last parts into the sign.

7
Step7: finish
Preview

The sign is ready. Except.................

If you want to hang it outside. Then you have to treat it again with varnish. When that is all done and dry, you can remove the protection from the brier glass and the man and your (outdoor) sign is ready to be hung.

Do you have no idea for a hanging system?

I am now busy making a matching wall bracket. This will soon be available to Atomm.

8
Step8: Bundle the 2 projects into 1 project
Preview
Preview
Preview
4 More images

As written in the subject, you can use this project separately and we have also put it separately on Atomm. https://www.atomm.com/template/55728-wall-bracket-for-fathers-day-wall-sign

However, there is also a project of a sign in the same style as this one. If you have already made the other project, you can now combine them using iron rings and chains.

This makes it a nice Father's Day gift for in the garden.

→ Happy  Father's Day - everyone ←
