Leather Keychain Jig

Instruction

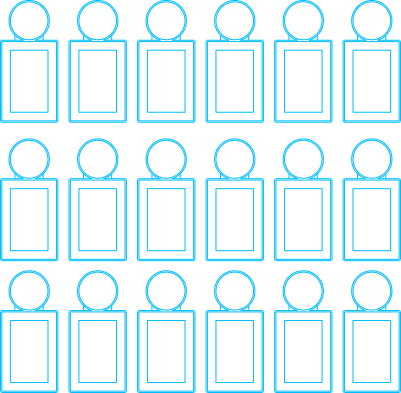

Kaychain_Leather_1

.xcs

Application scenario

Laser processing

Machine & module

xTool M1 Ultra

20W

Compatibles · 13

Material used

1/8"(3mm) Basswood Plywood

Information

      As a first project I wanted to be able to engrave as many keychains at once as possible, so I made this simple jig. The file provides not only the cutout area, but the working area of these keychains, making setting up the engravings super fast and easy!

laser cut

jig

Basswood

Instruction

Step1

Set up the material to be cut at the 0,0 location of the working area of your laser.
1. Hint: Zoom in to the top left corner as much as you can and put the red crosshairs on 0,0. Now lay down your material so the crosshairs of your laser match the top left corner of your material.
Cut away!

You can also use the layout to position your engravings on each of the keychains.
