[Laser cut and engrave] Laser Cut Wooden Secret Treasure Box with Puzzle Lock — Project made with xTool S1 machine for Laser cut and engrave.

Simple Secret Compartment Box

Instruction

.xcs

Application scenario

Laser processing

Machine & module

xTool S1

40W

Compatibles · 13

Material used

1/8"(3mm) Basswood Plywood

Information

      This is a simple box with a secret compartment unlocked by moving the side decorations forward. The design can be modified or expanded. Adding decorative detail to the front and back would conceal the tab from the false bottom.

laser cut

puzzle box

secret compartment

Instruction

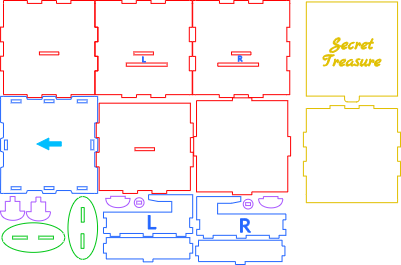

Step1: Build the secret compartment and the locking pieces.

Preview

2 More images

Glue required.

Carefully note the orientation of the locking pieces. It's easy to install one upside down.

Step2: Build the main box and insert the locking pieces

Preview

3 More images

Insert the locking pieces (decorative side pieces) and glue on the collar. It may be easier to do this before gluing the right and left sides in place.

Double check the orientation before gluing the collar on to the locking arm.

Test that everything is moving smoothly.
