[Laser cut and engrave] Polarization - Lighting — Project made with xTool P3 machine for Laser cut and engrave.

Polarization - Lighting

Instruction

Polarization - Acrylic

.xcs

Show 1 more

Application scenario

Laser processing

Machine & module

xTool P3

80W

Material used

5mm Acrylic

Information

      Introducing the Polarization, a striking tower lamp that utilizes optics and structure to create a dynamic, radiant light effect. This piece serves as a bold, contemporary accent, perfect for adding vertical dimension and focused light to modern interiors.
Polarization is an ideal piece for those who appreciate high-tech design and complex light diffusion, transforming standard illumination into a patterned, glowing column.

Key Features:
Design Style: High-Tech Minimalist, Architectural, Industrial.

Materials: Clear/Frosted Acrylic, Internal Patterned Inserts, and Polished Metal Hardware.

Aesthetic Appeal: Tall, slender column that utilizes internal barriers to produce a distinctive, horizontally banded light pattern.

Illumination: Creates a bright, vertically-oriented, and patterned ambient light.

Instruction

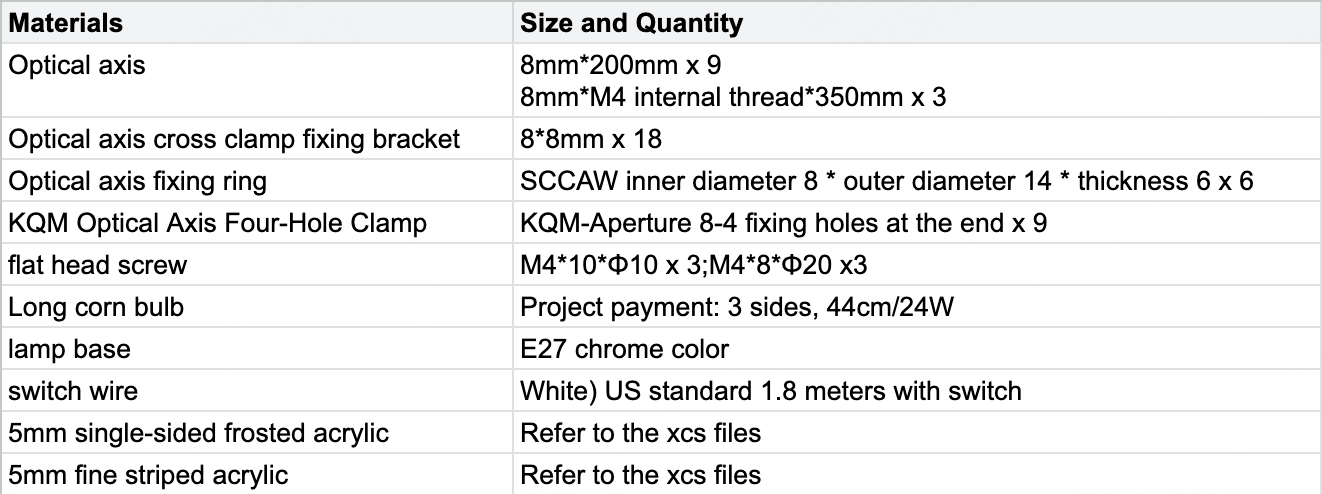

Step1: Bill of Materials

Step2: Assembly Steps

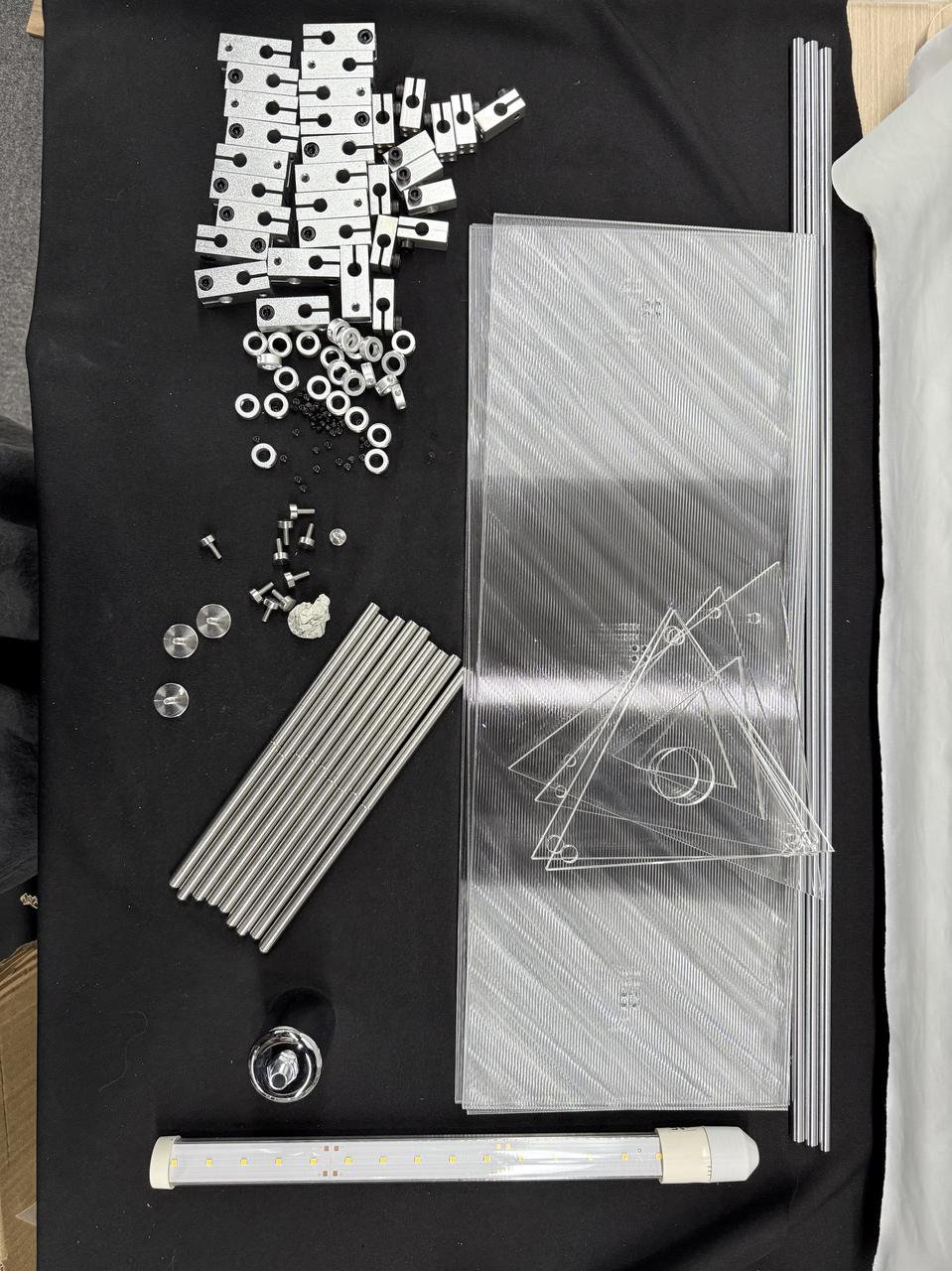

Prepare the installation materials.

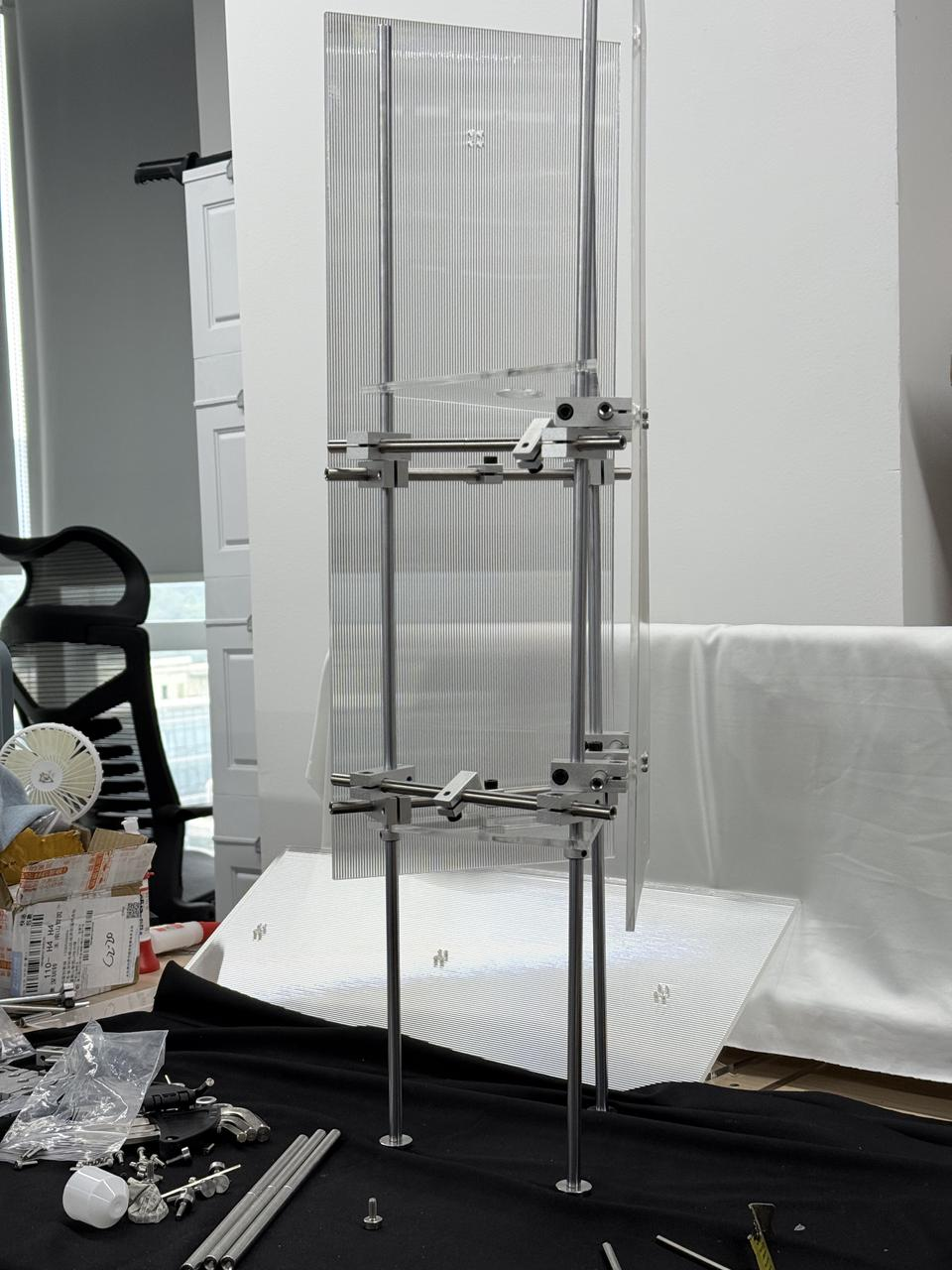

Install the supporting structure and the external protective acrylic panels in sequence.

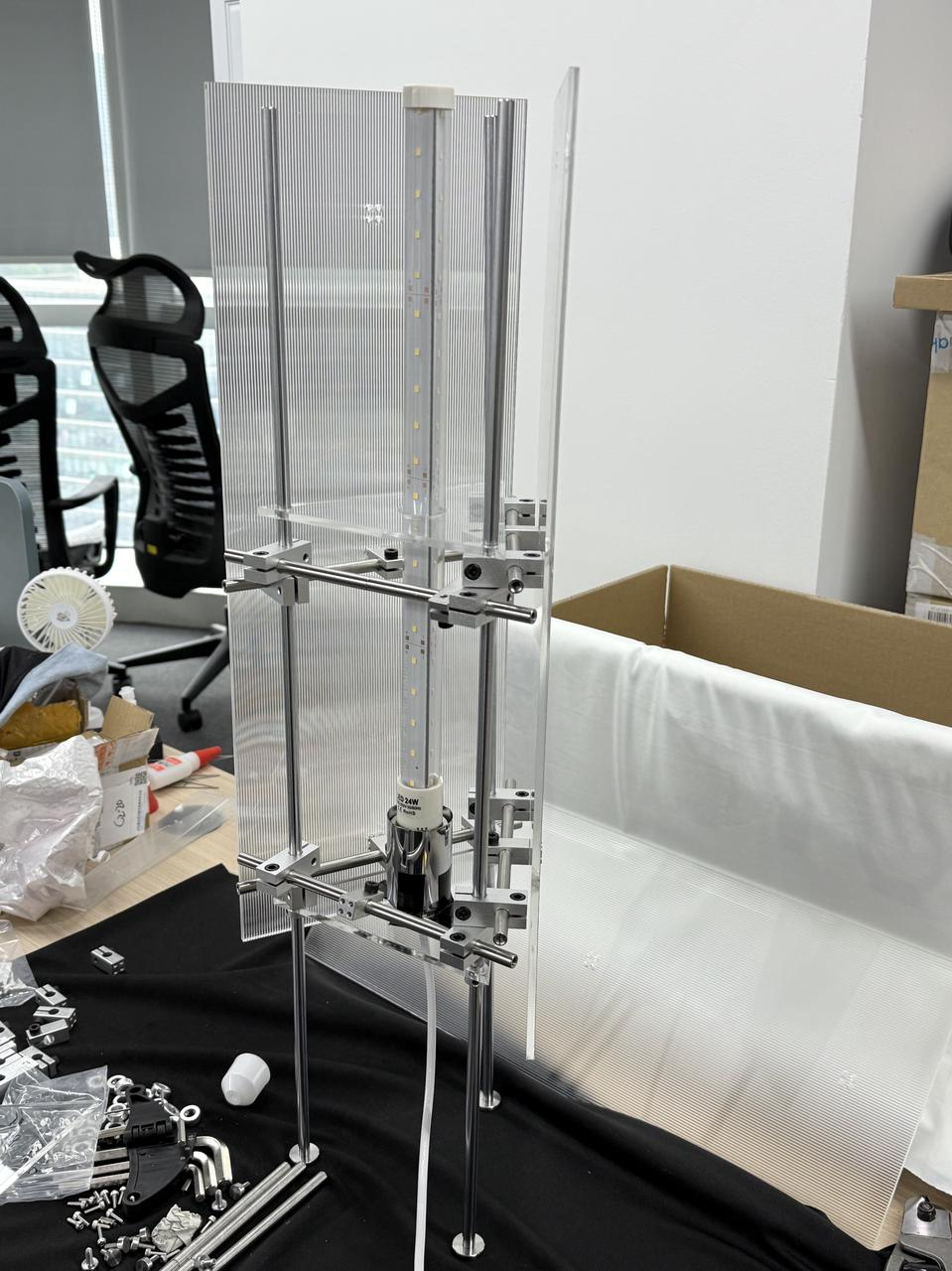

Install light bulbs and lamp sockets.

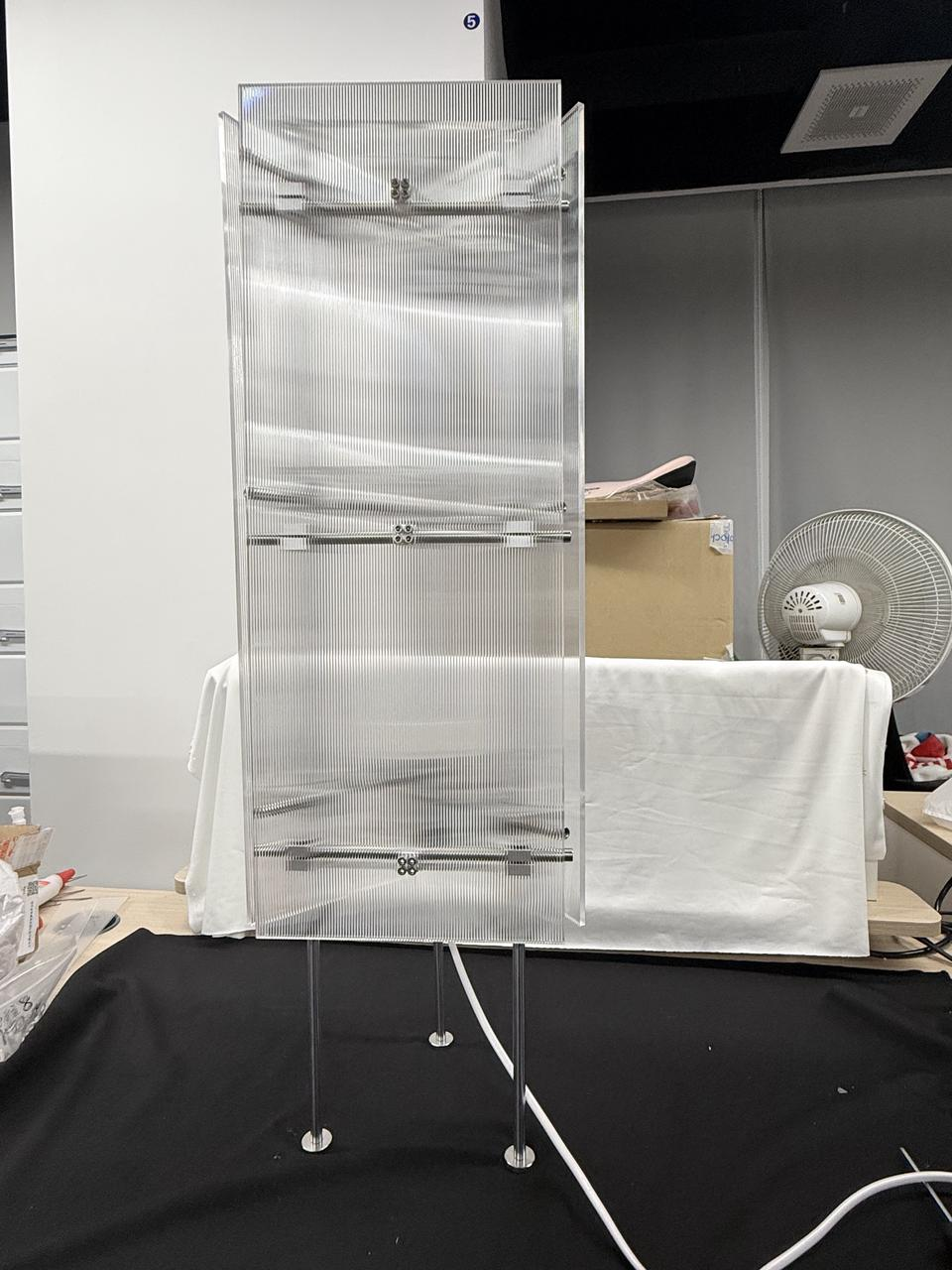

Install the top acrylic panel and the third external acrylic panel; installation completed.

Step3: Notes

Both the switch wire and bulb in the bill of materials are universal wide-voltage versions compatible with national standards and American standards, and they are replaceable. Using a transparent switch wire will yield better results.
The triangular acrylic sheet is sharp, so be careful not to get scratched.
If the angles of the three supporting optical axes are incorrect, the overall structure will tilt. Please adjust them carefully.
