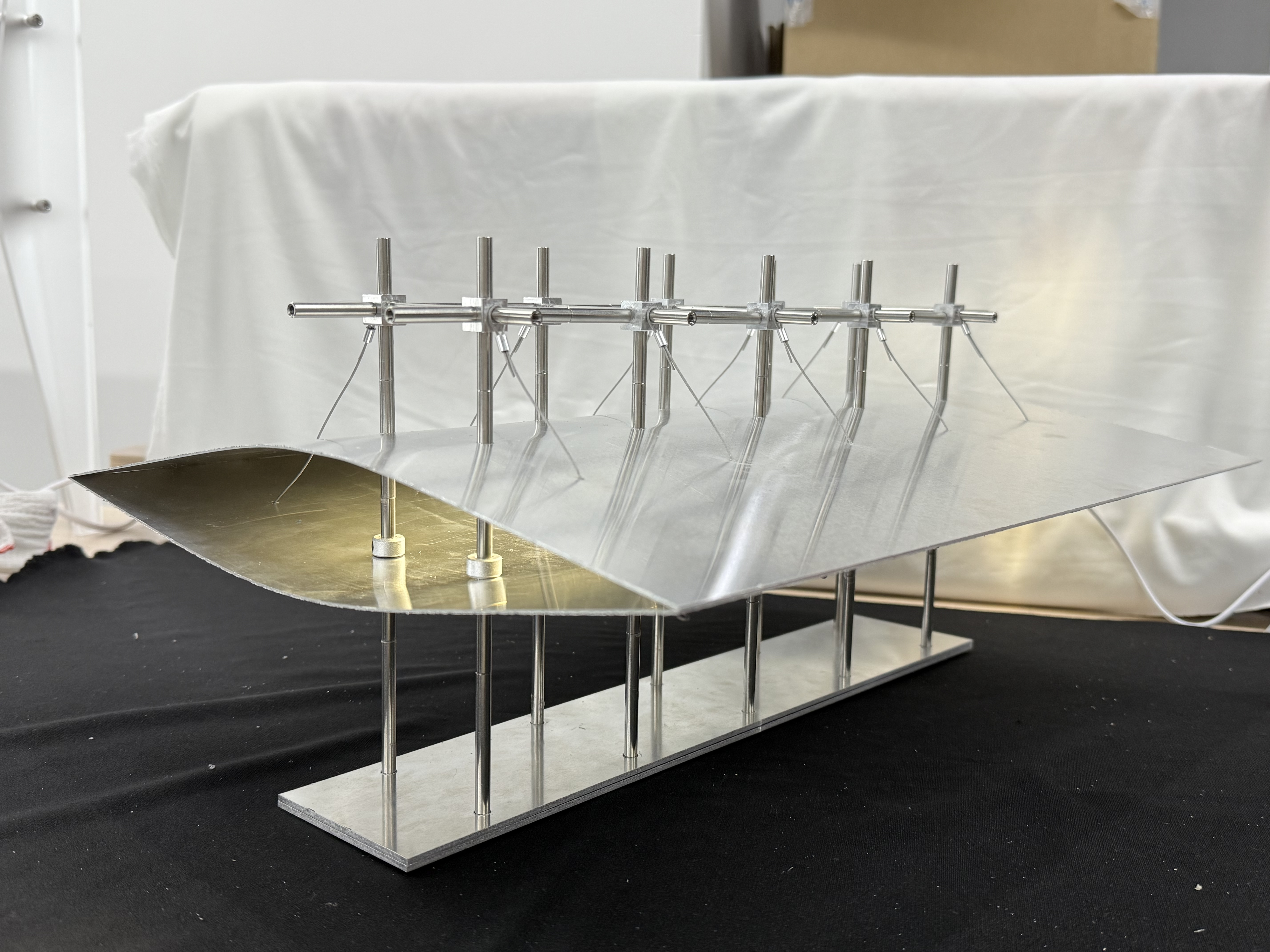

The Cantilever - Lighting
Instruction
The Cantilever - Aluminum

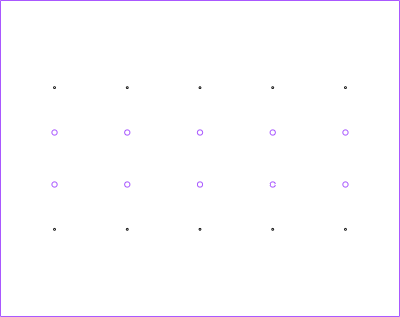

.xcs
Show 1 more
Application scenario
Laser welding / cleaning
Machine & module
xTool MetalFab Laser Welder
1200WCompatibles · 1
Material used

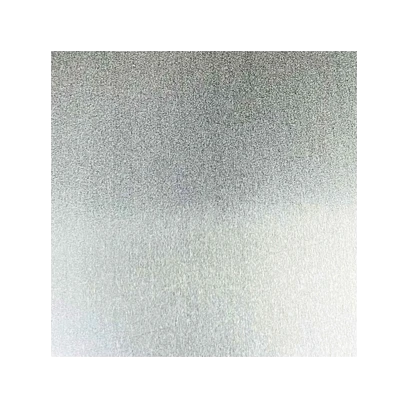

5/64"(2mm,Ga.12) 1060 Aluminum
22
Instruction
1

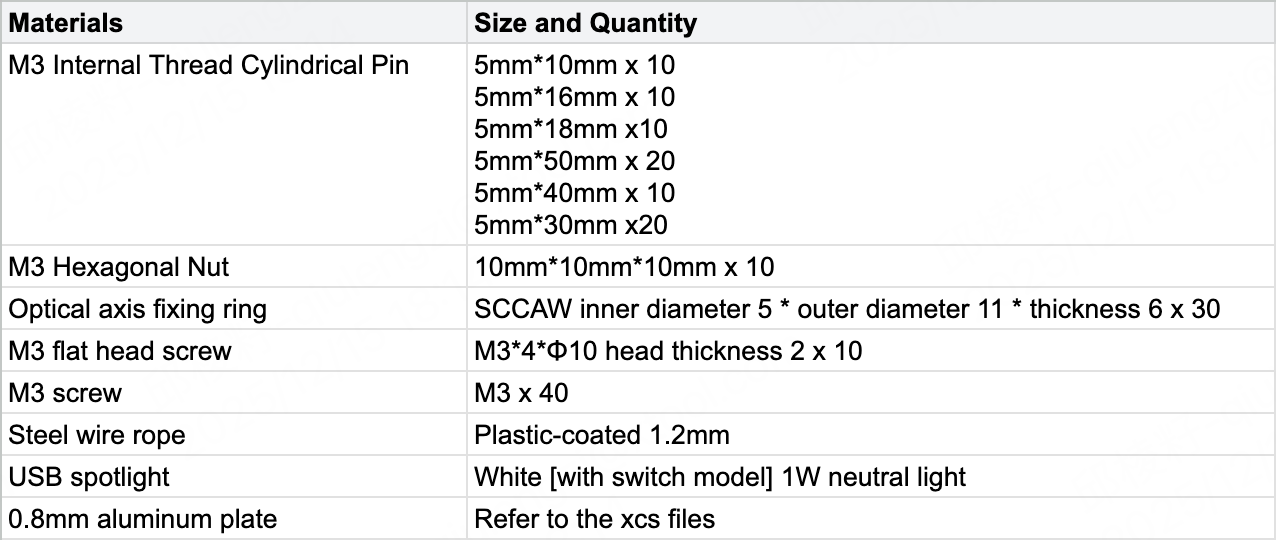

Step1: Bill of Materials
2
Step2: Assembly Steps

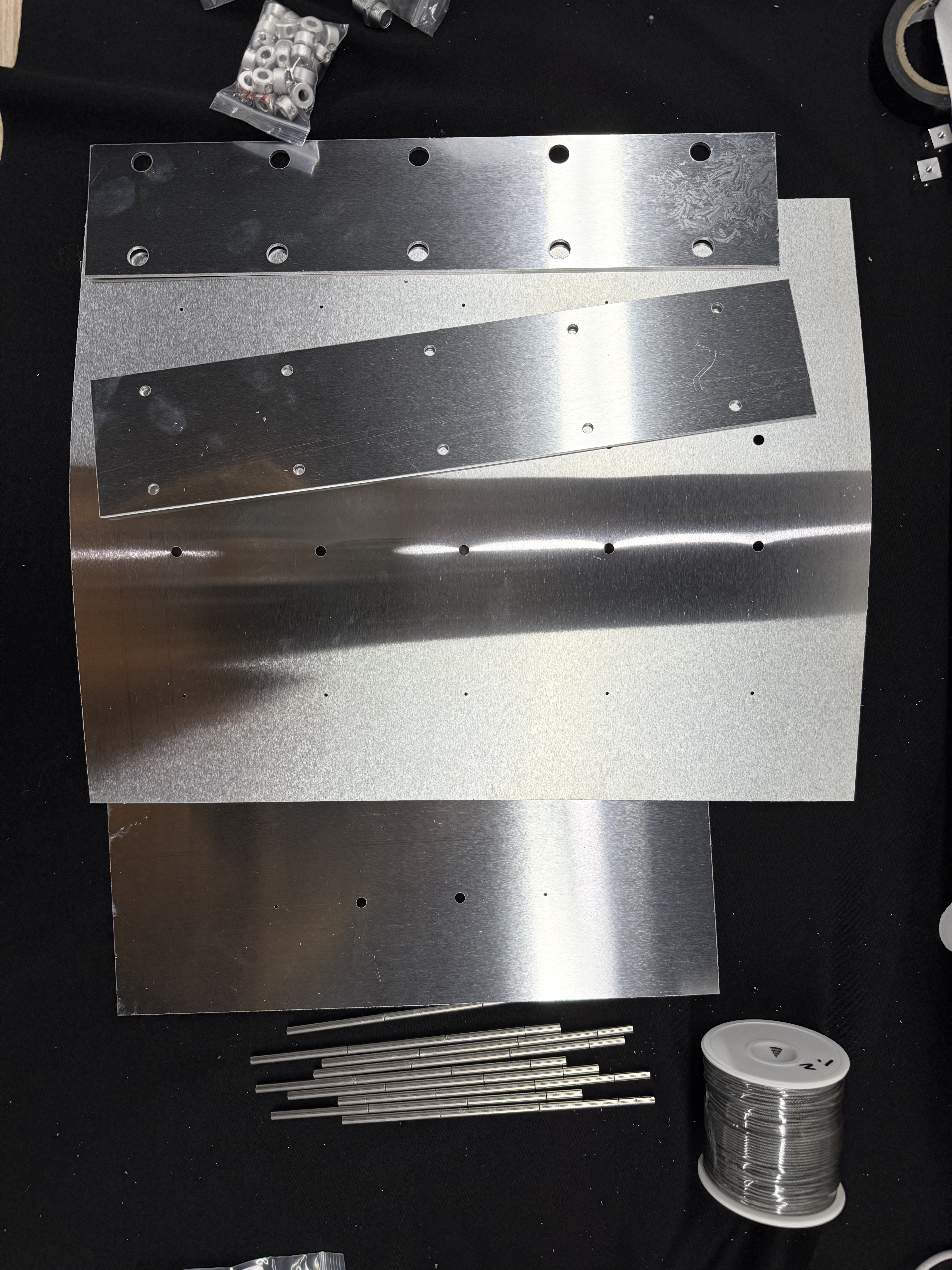

Prepare the installation materials.

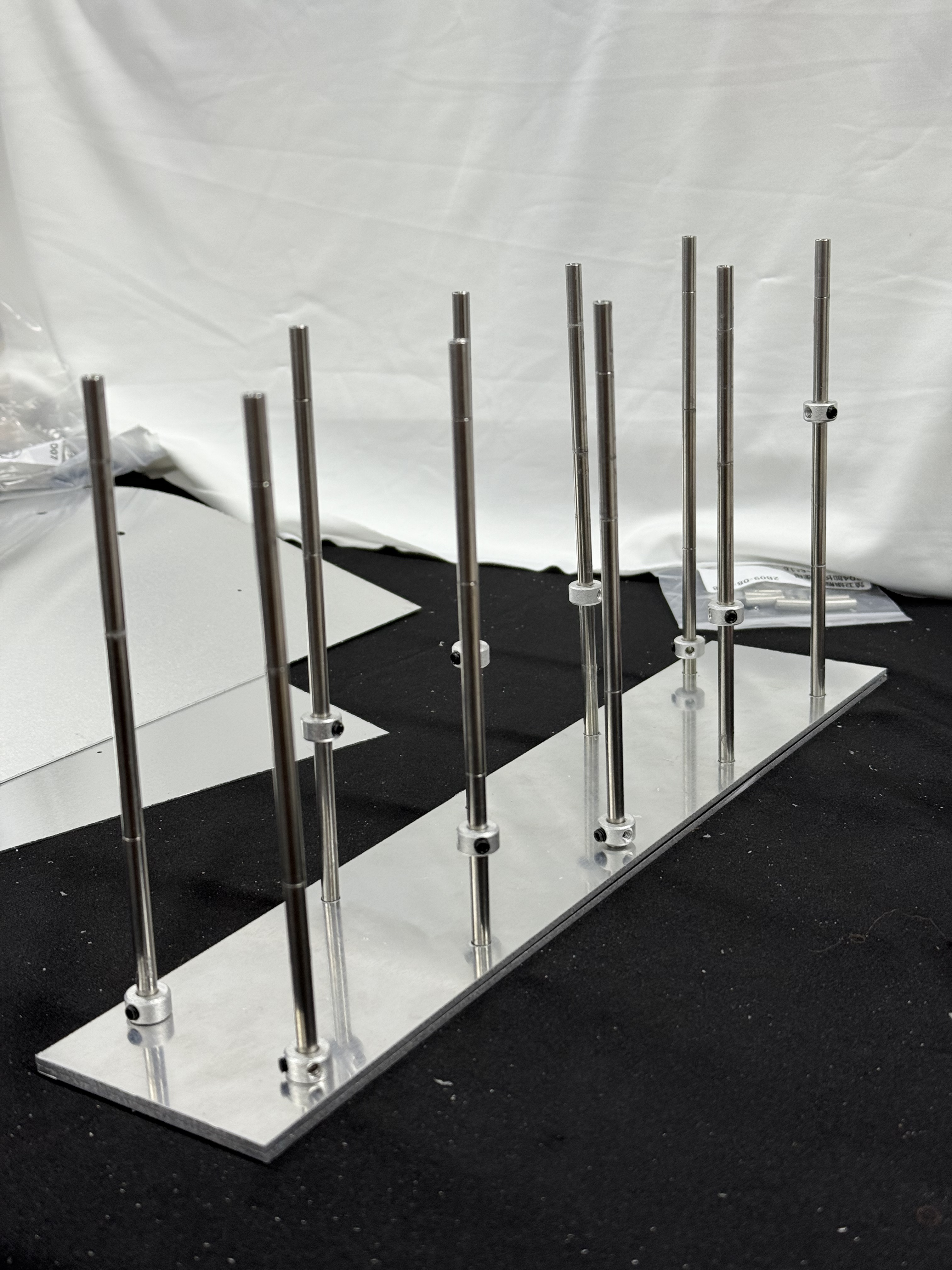

Install the base aluminum plate and supporting rod components.

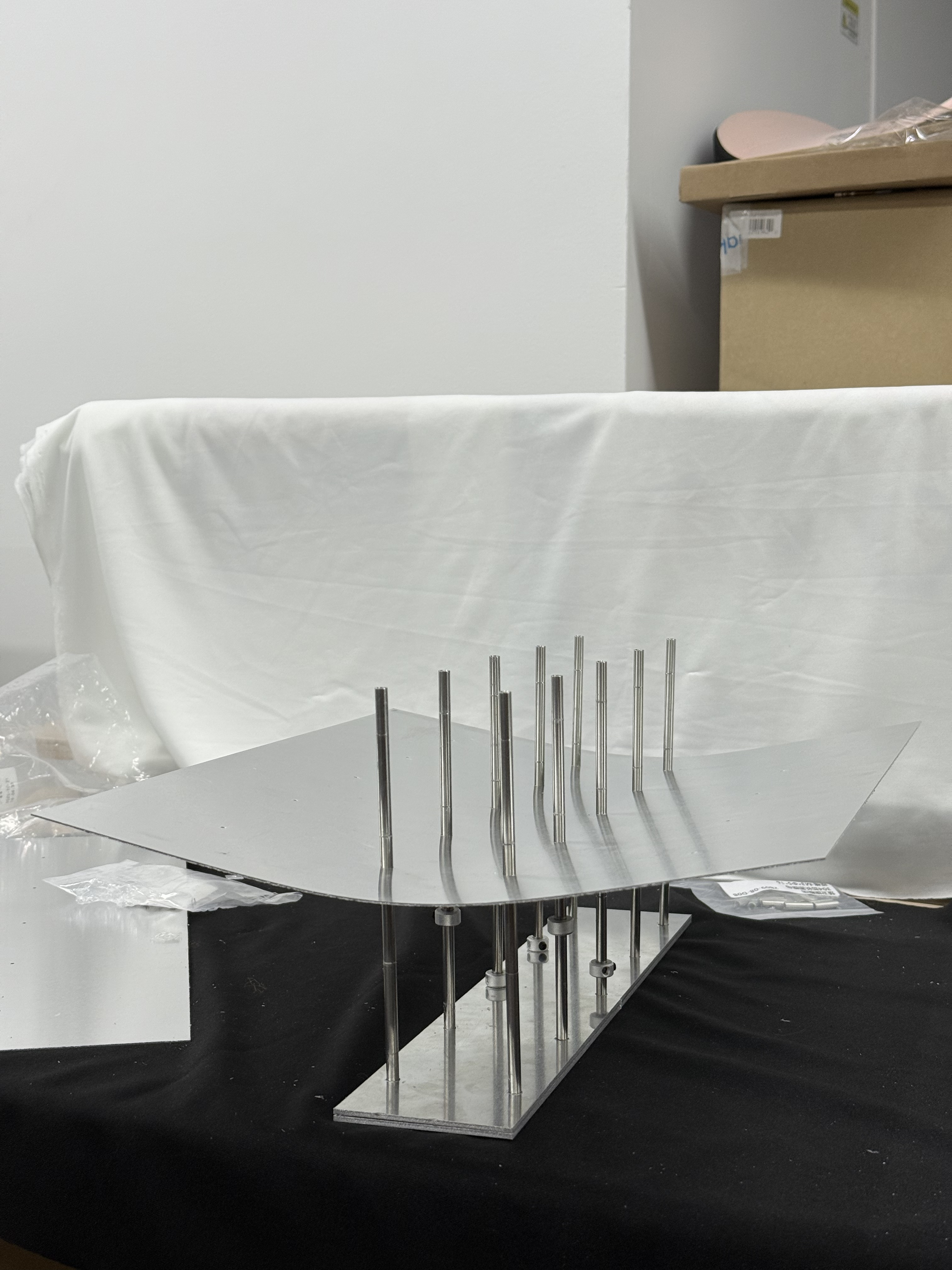

Install the lower arc plate.

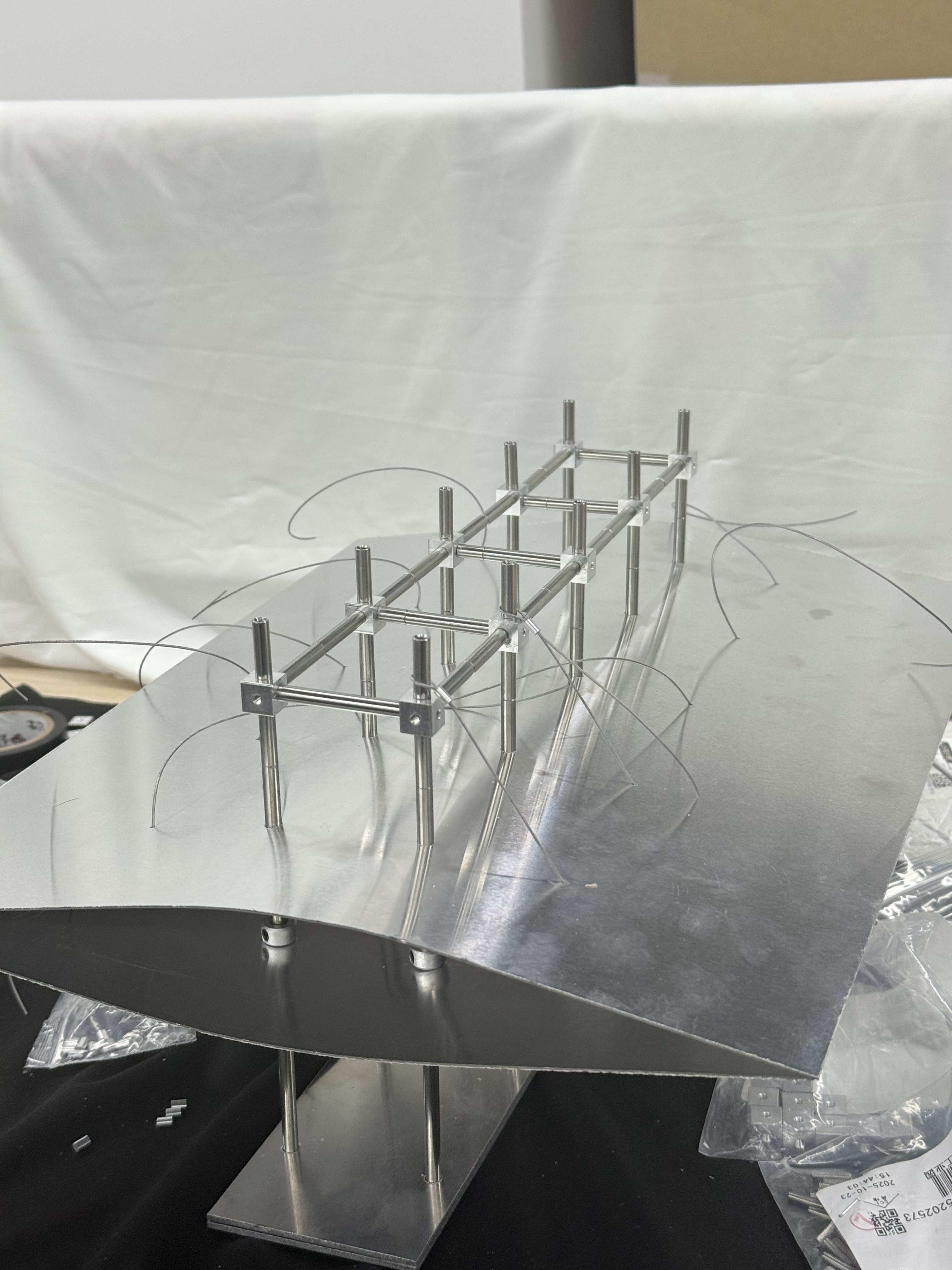

Install the upper arc plate and thread the steel wire rope.
Lock the steel wire rope with a steel wire rope lock, and the installation is completed.
3
Step3: Notes
The steel wire rope should be chosen to be moderately hard and soft; if it is too soft, it will not hold its shape, and if it is too hard, it will be difficult to install.
