Fox 3D layered art

Instruction
fox_layered.xcs
fox_layered
.xcs
Application scenario
Laser processing
Machine & module
xTool M1 Ultra
20W
Compatibles · 12
Material used
1/8"(3mm) Basswood Plywood
151
2074

Information

      A layered fox shaped art piece. The layers produce a forest scene. Painting them in orange / brown colors adds the fall season element to the design.


Instruction

1

Step1: Cut out the pieces

Fox 3D layered art instruction: step 1 - Cut out the pieces
Preview

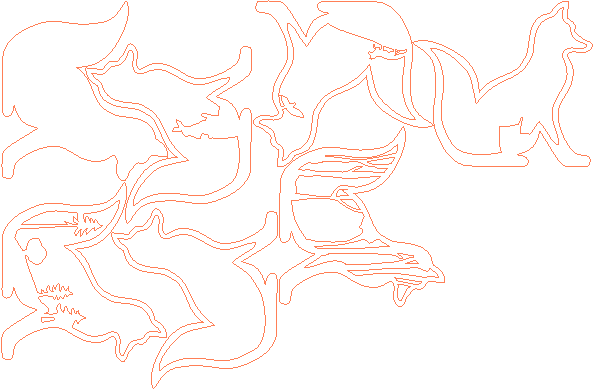

Cut out all of the pieces. The image also shows the order in which the layers will be stacked together.

2

Step2: Paint

Fox 3D layered art instruction: step 2 - Paint
Preview

Paint the pieces.

I went with a dark brown/orange color which goes increasingly to light orange. This adds a fall theme as well as includes the natural fox color.

3

Step3: Assemble the layers

Fox 3D layered art instruction: step 3 - Assemble the layers
Preview
Fox 3D layered art instruction: step 3 - Assemble the layers
Preview
Fox 3D layered art instruction: step 3 - Assemble the layers
Preview

Start by gluing two layers together. Optimize this step and glue layers 1-2, 3-4, 5-6.

Then, glue the two of those parts together, so 1-2 + 3-4 and 5-6 + 7.

Lastly, glue both “halves” together.

4

Step4: Finish up

As it is difficult to perfectly align the pieces, I sand the perimeter of the model once the glue is dry. This evens out everything.

Then, I recommend you paint the perimeter. I chose white color.
