Treasure chest with 3 hidden compartments optimized for A3

Instruction
Treasure Box.xcs
Treasure Box
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40W
Compatible xTool Machine
P3
F2
F2 Ultra UV
F2 Ultra(Single)
F2 Ultra
F1 Ultra
F1
F1 Lite
P2S
P2
M1 Ultra
M1
D1 Pro 2.0
D1 Pro
D1
Laserbox
M2
Material used
1/8"(3mm) Basswood Plywood
gift
1
38

Information

      I sat there in the evening and watched a few movies.
Indiana Jones and some movie about safecracker.

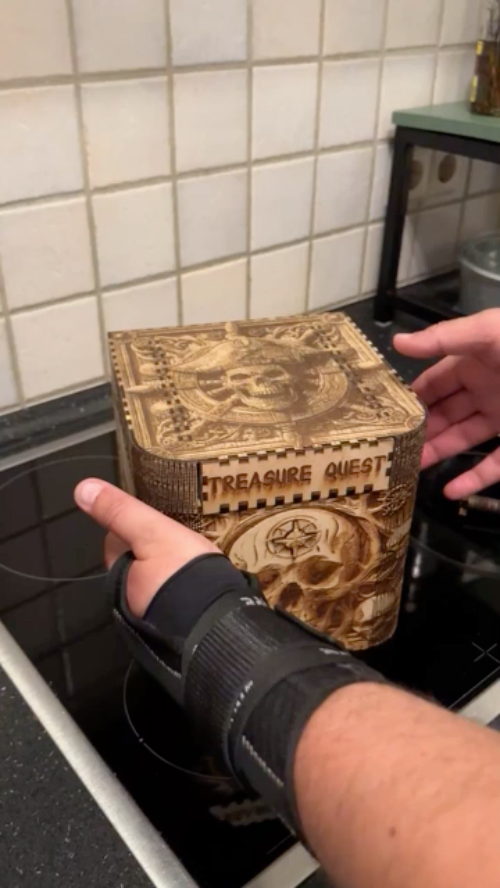

That's when I came up with the idea of building a treasure chest that requires a key and has hidden chambers that you can't see at first glance and that can only be opened with the key.
What occurred to me or noticed afterwards is that I forgot the lock.
At least for the main box. You can lift the lid as well without using the key. 🤷🏻‍♂️
Sorry guys, it was my first major project.
However, the 2 compartments on the back are locked in such a way that you can't open them without the master key.
I also exaggerated it a bit, I think.
The 2nd key to open the lid is not just put into the lock but has to be twisted.
That means the wire wrench goes into the lock to a third, then twist, then further in, then turn back and back in again until you can move the actual gear mechanism that opens the chest. (I copied that from the safecrackers / 2 to the left 3 to the right .....)
I worked the drawer in the lid in such a way that you can't see it, no matter if you do the engraving on the box or not.
I wish you a lot of fun assembling it and look forward to your feedback and or suggestions for improvement.


Instruction

1

Step1

Cut and engrave all parts.
ATTENTION!
the back wall is engraved from both sides.
Once the motif with the three skulls and then you have to swap the left and the right side and engrave the frame.
This engraving serves as a groove for the drawers that are in the box from the back.

2

Step2

It's not only a puzzle box when it's finished, but also when you assemble it.
I hope you enjoy the puzzle. 😉
