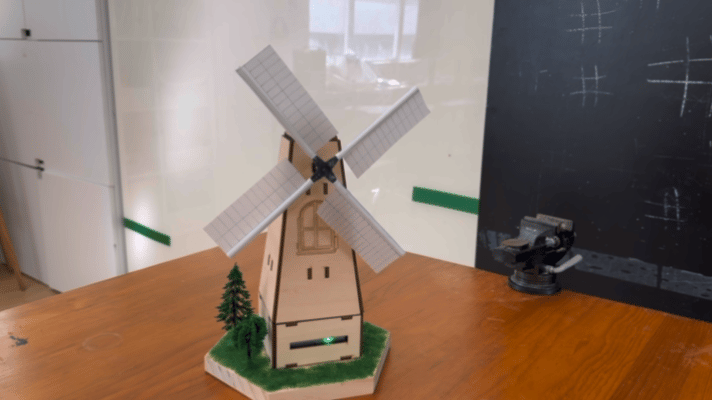

This is a metronome in the shape of a windmill. The blades of the windmill can swing back and forth according to the tempo. The light strip at the bottom of the windmill will flash according to the rhythm pattern and tempo.
Instruction
1
Step1: Process the basswood with p2
Preview
For 30X60 Basswood Plywood one piece is enough.
2
Step2: Assemble the base part of the metrononme.
Preview
Preview
Preview
Preview
Remember to assemble the woods in right positions so that the switch, light strip and TypeC of Cyber Pi can work.
3
Step3: Assemble the main part of the windmill.
Preview
Remember to assemble them in right positions in order to keep a good angle.
4
Step4: Assemble the servo and the perforated wooden board. And connect the walls and the top of the main part.
Preview
Preview
Preview
Preview
You can use hot melt adhesive to fix the servo if necessary.
5
Step5: Connect the floor and the wall.
Preview
Remember to leave the cable of the servo out of the floor.
6
Step6: Connect the roof and the main part of the windmill.
Preview
Preview
You can use hot melt adhesive if necessary.
7
Step7: Connect the botom and the main part.
Preview
Preview
Remember to connect Cyber Pi, servo driver and the servo.
8
Step8: Prepare the blades and connect the blades with servo by a wooden stick.
Preview
Preview
Better make blades with paper as it's light.
9
Step9: Finish the assembling.
Preview
Enjoy it!
