"Daddy's Day" Father's Day Gift

Instruction
Fathers Day Sun Rise.xcs
Fathers Day Sun Rise
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40W
Compatible xTool Machine
New
M2
10W, 20W
F2 Ultra UV
5W
F2
15W
P3
80W
F2 Ultra
40W
F1 Ultra
20W
M1
5W, 10W
D1
5W, 10W, 20W
D1 Pro
5W, 10W, 20W, 40W
P2
55W
F1
10W
S1
10W, 20W
M1 Ultra
10W, 20W
P2S
55W
Material used
1/8"(3mm) Basswood Plywood
gift
52
1407

Information

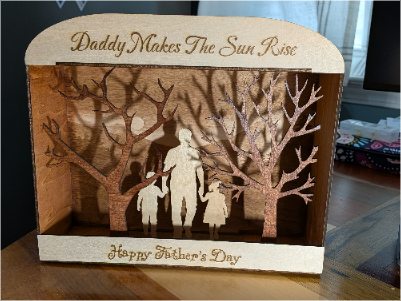

      Created 3d display for a friends dad, using the S1 40watt.  It is quick and easy, make a great gift for Father's Day.


Instruction

2

Step2: Cutout and Engraving

"Daddy's Day" Father's Day Gift instruction: step 2 - Cutout and Engraving
Preview
"Daddy's Day" Father's Day Gift instruction: step 2 - Cutout and Engraving
Preview
"Daddy's Day" Father's Day Gift instruction: step 2 - Cutout and Engraving
Preview
"Daddy's Day" Father's Day Gift instruction: step 2 - Cutout and Engraving
Preview
  1.  Engraved and Cutout is in 4 parts
  2.  Start with the Back Screen, it is a image for the background
  3.  Setting for the Back Screen may change due to the conditions and machine
  4.  Cutout and engrave the remaining parts
3

Step3: Assemble Project

"Daddy's Day" Father's Day Gift instruction: step 3 - Assemble Project
Preview
  1.  Assemble the Outer Box and the Back Screen at the same time
  2.  This will ensure the project is square
  3.   I use blue painters tape when gluing the parts together
  4.   Next add the Father and Children to the Outer Box
  5.   Add the the Trees to the Outer Box
  6.   After drying add the Display Signs
  7.   Final step is to stain or paint as you would like

Have Fun
