Square Lotus Flower Wooden Drop Earrings

Instruction

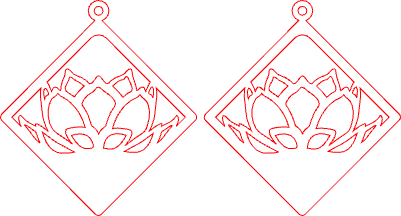

Flora Lotus

.xcs

Application scenario

Laser processing

Machine & module

xTool M1 Ultra

10W

Compatible xTool Machine

F2 Ultra UV

F2 Ultra（Single）

F2 Ultra

F1 Ultra

F1 Lite

P2S

D1 Pro 2.0

D1 Pro

Laserbox

Accessories

xTool M1 Riser Base with Honeycomb Panel

xTool M1 Air Assist Set

Material used

1/8"(3mm) Basswood Plywood

741

Information

      This project provides a simple and original instruction for cutting wooden Earrings using the xTool M1 Ultra (10W diode laser).
The instructions are based on my own setup and testing, focusing on practical use, machine configuration, and common checks before running the job. The earrings size can be adjusted freely to match personal preference or project needs.
Please note that the default settings are optimized for basswood plywood. If you choose a different material, the laser settings will need to be adjusted accordingly, and results may vary if parameters are not recalibrated.
Before starting, make sure the file includes separate Engrave and Cut operations, as the software may occasionally consolidate them automatically.

Instruction

Step1: Machine Set up

⚠️ Important:
If you change the material, the default settings included in this file will also need to be adjusted.
Using a different wood, MDF, or acrylic may result in poor or unsatisfactory results if the parameters are not recalibrated.

XCS may sometimes automatically consolidate operations.
Before running the job, verify that Engrave and Cut are still separated, and manually reassign them if needed.
