Filigree Scroll Pattern Wooden Drop Earrings
Instruction

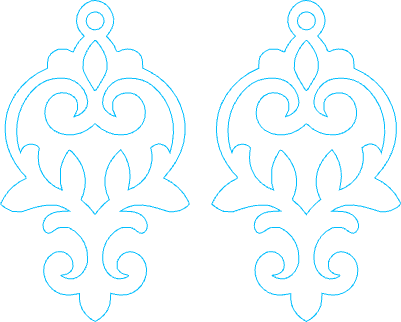

Arabesco
.xcs
Application scenario
Laser processing
Machine & module
xTool M1 Ultra
10WCompatible xTool Machine
New
M2
10W, 20WF2 Ultra UV
5WF2
15WP3
80WF2 Ultra
40WF1 Ultra
20WM1
5W, 10WD1
5W, 10W, 20WD1 Pro
5W, 10W, 20W, 40WP2
55WF1
10WS1
10W, 20W, 40WM1 Ultra
20WP2S
55WAccessories
xTool M1 Riser Base with Honeycomb Panel
xTool M1 Air Assist Set
Material used
1/8"(3mm) Basswood Plywood
14
514
Information
This project provides a simple and original instruction for cutting wooden Earrings using the xTool M1 Ultra (10W diode laser).
The instructions are based on my own setup and testing, focusing on practical use, machine configuration, and common checks before running the job. The earrings size can be adjusted freely to match personal preference or project needs.
Please note that the default settings are optimized for basswood plywood. If you choose a different material, the laser settings will need to be adjusted accordingly, and results may vary if parameters are not recalibrated.
Before starting, make sure the file includes separate Engrave and Cut operations, as the software may occasionally consolidate them automatically.
Instruction
1
Step1: Machine Set up
⚠️ Important:
If you change the material, the default settings included in this file will also need to be adjusted.
Using a different wood, MDF, or acrylic may result in poor or unsatisfactory results if the parameters are not recalibrated.
XCS may sometimes automatically consolidate operations.
Before running the job, verify that Engrave and Cut are still separated, and manually reassign them if needed.
- Power ON the xTool M1 Ultra
- Install the honeycomb bed
- Place the wood sheet on the honeycomb
- Secure material using magnets, ensuring flatness
2
Step2
- Open xTool Creative Space (XCS)
- Import the bookmark file
- Position the design within the material area
- Perform Auto Focus
- Use Frame to confirm alignment
3
Step3
Acceptance Criteria
No excessive burn marks
Clean cut-through edges
Earrings dimensions per design
4
Step4: Finishing & Storage
FINISHING (IF APPLICABLE)
Light edge sanding (grit 220–320)
Optional sealing or oil finish
STORAGE
Store the earrings flat
Protect from moisture and bending
Avoid stacking without separators
