Report

Distributor of inspirational messages

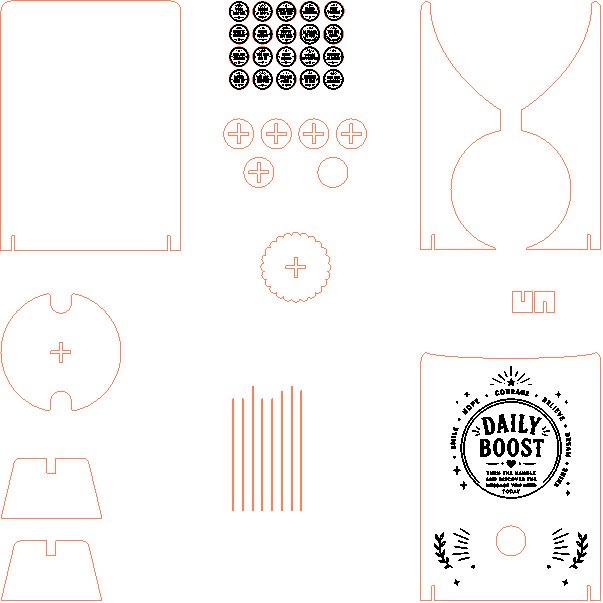

DISTRIBUTEUR ENGLISH.xcs
DISTRIBUTEUR ENGLISH
.xcs
Application scenario
Laser processing
Machine & module
xTool M1 Ultra
20W
Compatible xTool Machine
P3
F2
F2 Ultra UV
F2 Ultra(Single)
F2 Ultra
F1 Ultra
F1
F1 Lite
S1
P2S
P2
M1
D1 Pro 2.0
D1 Pro
D1
Laserbox
M2
Material used
1/8"(3mm) Basswood Plywood
gift
257
3768

Information

      ✨ Daily Boost – The Distributor of Incentives ✨

Because a simple word can sometimes brighten a day, here is my new project Daily Boost! 💛

Spin the wheel and let the dispenser give you a positive, motivating or comforting message when you need it most.

🔹 Made of 3 mm plywood
🔹 Made with the xTool M1 Ultra 20W
🔹 Ideal for an office, classroom, wellness area or as an original gift

French and English versions.

A small gesture, a big boost of motivation! 🌟

You can also create the version of your choice on totally different themes (advent calendar for Christmas with 24 activities for example).

SVG size 600 x 600 mm
Settings used for my project with the M1 Ultra 20W: V8 P80 Cutting / V130 P30 Engraving

https://www.facebook.com/photo/?fbid=122100010670513050&set=pcb.122100011078513050

⚠️ !?️If the wheel gets stuck from time to time or no chips fall, don't panic, gently shake the dispenser from left to right to get the chips moving again! ✨



Instruction

1

Step1

Distributor of inspirational messages instruction: step 1 -
Preview
Distributor of inspirational messages instruction: step 1 -
Preview

Glue the axle of the wheel.

2

Step2

Distributor of inspirational messages instruction: step 2 -
Preview
Distributor of inspirational messages instruction: step 2 -
Preview
Distributor of inspirational messages instruction: step 2 -
Preview
Distributor of inspirational messages instruction: step 2 -
Preview

Place the axle in the wheel without gluing it,

then glue three levels of washers to the wheel and between them.

3

Step3

Distributor of inspirational messages instruction: step 3 -
Preview
Distributor of inspirational messages instruction: step 3 -
Preview
Distributor of inspirational messages instruction: step 3 -
Preview
Distributor of inspirational messages instruction: step 3 -
Preview

Glue the inner part (2 sides).

In order to check that it is properly aligned you can place the wheel in the center and rotate it manually, adjust the position if necessary.

4

Step4

Distributor of inspirational messages instruction: step 4 -
Preview
Distributor of inspirational messages instruction: step 4 -
Preview
Distributor of inspirational messages instruction: step 4 -
Preview
Distributor of inspirational messages instruction: step 4 -
Preview

Place the wheel.

Then glue the chopsticks.

Put glue on the chopsticks.

Then glue the front to the strips

5

Step5

Distributor of inspirational messages instruction: step 5 -
Preview
Distributor of inspirational messages instruction: step 5 -
Preview
Distributor of inspirational messages instruction: step 5 -
Preview
Distributor of inspirational messages instruction: step 5 -
Preview

Glue the cogwheel to the axle, then glue 2 levels of washers and finish by gluing the full round.

6

Step6

Distributor of inspirational messages instruction: step 6 -
Preview
Distributor of inspirational messages instruction: step 6 -
Preview
Distributor of inspirational messages instruction: step 6 -
Preview

Place the dispenser on its feet.

Put the message disks in the dispenser.
