The House of Butterflies

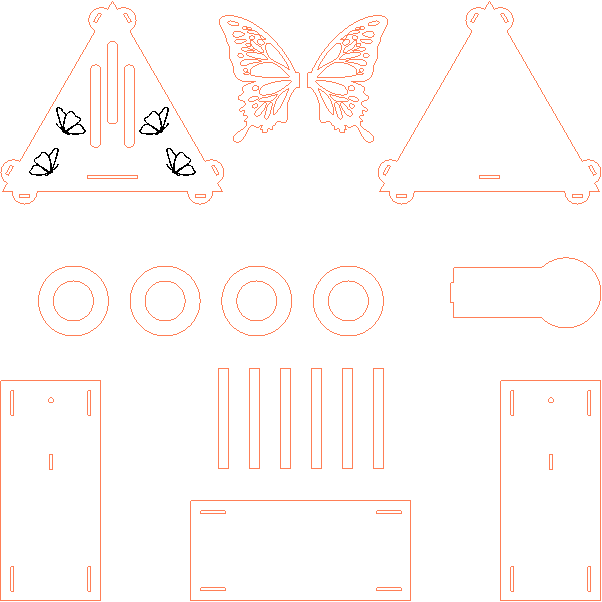

MAISON PAPILLON.xcs
MAISON PAPILLON
.xcs
Application scenario
Laser processing
Machine & module
xTool M1 Ultra
20W
Compatible xTool Machine
New
M2
10W, 20W
F2 Ultra UV
5W
F2
15W
P3
80W
F2 Ultra
40W
F1 Ultra
20W
M1
5W, 10W
D1
5W, 10W, 20W
D1 Pro
5W, 10W, 20W, 40W
P2
55W
F1
10W
S1
10W, 20W, 40W
M1 Ultra
10W
P2S
55W
Material used
1/8"(3mm) Basswood Plywood
gift
94
1706

Information

      Hello everyone! 🦋✨

Today, I present to you my new butterfly shelter, a decorative and functional project designed to welcome these precious visitors to the garden.

This model has been designed to be completely disassembled. Only the decorative wings are glued, everything else comes together without gluing.

The shelter also has a small built-in feeder, to be filled with a mixture of water and sugar to attract butterflies. For this part, I used a simple aluminum tealight holder (38 mm x 15 mm), easily found at a low price on the internet.

Two installation modes are possible:

🌿 To be placed on a flat surface thanks to its integrated legs.
🌿 To be hung high up for natural integration into a tree or near a flower bed.

The project is designed to be made of 3 mm plywood and requires 3 boards of 30 x 30 cm for its complete manufacture.

As always, the cutting and engraving was done with my M1 Ultra 20W

Cutout: Power 80 Speed 8
Engraving: Power 30 Speed 130

SVG size 600 x 600 mm

I hope this creation will find its place in many gardens and help provide a small refuge for these beautiful pollinators. 🦋💛

https://www.facebook.com/permalink.php?story_fbid=pfbid0Kc25mHhjDRHMxYYWj5tyK7EULVDorfYPVCKCVNVFC2Vcgr4UykWq9WmXAJUFrm44l&id=61565391516936


Instruction

1

Step1

The House of Butterflies instruction: step 1 -
Preview
The House of Butterflies instruction: step 1 -
Preview
The House of Butterflies instruction: step 1 -
Preview

Glue 4 rows of circles to form the feeder.

2

Step2

The House of Butterflies instruction: step 2 -
Preview
The House of Butterflies instruction: step 2 -
Preview

Insert the notches on the bottom board.

3

Step3

The House of Butterflies instruction: step 3 -
Preview

Secure with tabs

4

Step4

The House of Butterflies instruction: step 4 -
Preview
The House of Butterflies instruction: step 4 -
Preview
The House of Butterflies instruction: step 4 -
Preview
The House of Butterflies instruction: step 4 -
Preview

Thread a thin cord through the hole and position the board on the right.

Thread a thin cord through the hole and position the board on the left.

5

Step5

The House of Butterflies instruction: step 5 -
Preview
The House of Butterflies instruction: step 5 -
Preview

Secure on each side with the tabs.

6

Step6

The House of Butterflies instruction: step 6 -
Preview

Glue the decorative wings to each side.

7

Step7

The House of Butterflies instruction: step 7 -
Preview
The House of Butterflies instruction: step 7 -
Preview

Slide the feeder into the notch. No need to glue it, it stays in place on its own.
