Kingdom Glory Leather Trifold Wallet

Instruction
KingdomGloryTrifoldWallet.xcs
KingdomGloryTrifoldWallet
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40W
Compatibles · 12
Material used
Deep Brown Top Grain Cowhide Leather
63
417

Information

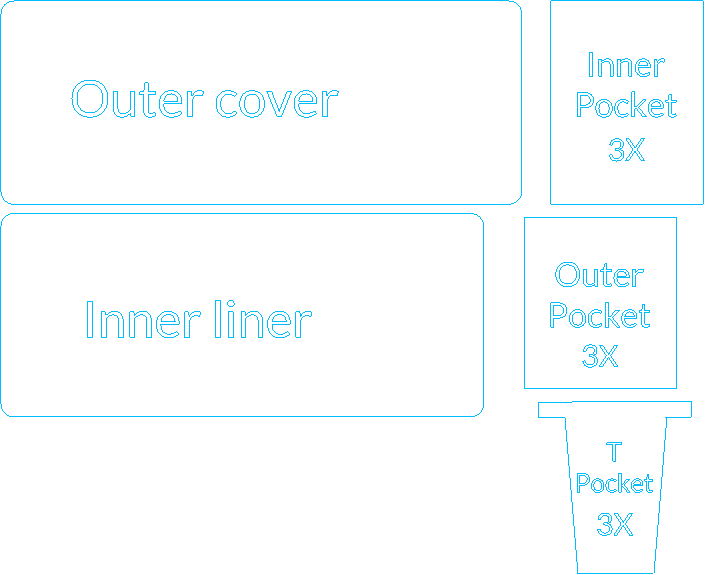

      This is a pattern to make the trifold wallet designed by Kingdom Glory Leather. You can find the instructional video on YouTube


Instruction

1

Step1: Pocket Assy

take 1  each inner, outer, T pocket piece. Lay together as they should look assembled. Mark top of T pocket on back. Mark vertical lines on all 3 pieces 3/8” from long edges. Mark ¼ “ from bottom edges. Lay T pocket on inner pocket, mark outline of bottom of T’s and bottom of pocket. Double stick T pocket in place and sew. Next Glue T ears down and glue outer pocket on top to complete assy. Repeat for remaining pockets.
Trim 1/8” of each vertical side of all assy’s.

2

Step2: Placement and first stitching

Determine which assy goes in which position ( left center right) On left and center, mark a vertical line 1/8”on the right side of the assy and stitch. On the right, mark a vertical line 1/8” on the left side and stitch

3

Step3: Sew pockets to inner liner

Place pocket assy’s on inner liner. Mark where they will lay with a line ¼ from edge – this will be your glue “limit” line -  being careful that the spacing between the center pocket and the outers is even. Glue the pocket assy’s down on three sides – top, side and bottom. For the left and center glue the left side, on the right glue the right side.

Mark a line 1/8” from the top on all three assy’s and down the unsewn edge (left) edge of the center pocket and stitch the tops and the center left to inner liner.

4

Step4: Attach outer cover and inner liner

On inner liner and outer cover, make a mark at the center on the bottom edge. On inner surface, mark ¼” line vertical on both ends, along bottom 2 ¾ long from both bottom corners and 2 ¾ in the center. Apply glue or double sided tape. Align center marks of both pieces and attach center of both pieces first, then align outside left and right edges and attach leaving a “pucker” in the outer cover between both pocket areas.

5

Step5: Final Stitching

Mark a 1/8” line along both outer ends and along bottom for the outer pockets and the bottom of the center pocket. Note- do not mark or punch stitch holes in the two gaps. Sew these lines.
