Team Papa Photo Frame

Instruction
papa_photostand.xcs
papa_photostand
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40W
Compatibles · 11
Material used
1/8"(3mm) Basswood Plywood
9
162

Information

      Let's cheer your dad with this wooden photo frame of logo of "Team Papa!"
You can easily create the face parts with your own family photo by using AImake( the function of Xtool Creative Space), and replace them to pre-made logo in the data.
All design fits in one A4 3mm plywood.

Instruction

1

Step1: Create the face drawings of families with AImake

Team Papa Photo Frame instruction: step 1 - Create the face drawings of families with AImake
Preview
Team Papa Photo Frame instruction: step 1 - Create the face drawings of families with AImake
Preview
Team Papa Photo Frame instruction: step 1 - Create the face drawings of families with AImake
Preview
Team Papa Photo Frame instruction: step 1 - Create the face drawings of families with AImake
Preview

With AI make function of Xtool Creative Space, you can easily create your own family member's face drawings!

  1. Insert the family photo to Xtool Creative Space
  2. To make the drawings, Filter > AI Filter > Line art realistic
  3. To remove the background, Cut out > AI cut out >confirm
  4. Clop the pictures to each member's faces



2

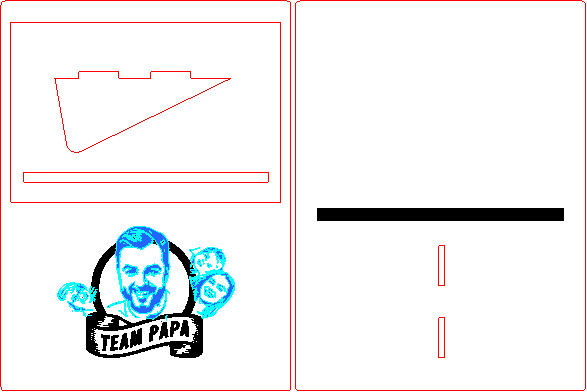

Step2: Replace the face images to example images in the data(Blue parts)

Team Papa Photo Frame instruction: step 2 - Replace the face images to example images in the data(Blue parts)
Preview
3

Step3: Laser cut and engrave!

Team Papa Photo Frame instruction: step 3 - Laser cut and engrave!
Preview

Use the settings above.

Processing time was about 10 min with Xtool S1 40W.

4

Step4: Paint, Assemble, and glue!

Team Papa Photo Frame instruction: step 4 - Paint, Assemble, and glue!
Preview
  1. Paint them if you like.
  2. Glue the long and narrow rectangle on the engraved part.
  3. Glue the front plate on the top of the back plate
    (It's like putting the rectangle between two plates)
  4. Insert the stand part on the back (Glue it if you like)

Source text


Source text


Source text


Source text


Source text


5

Step5: Done!

Team Papa Photo Frame instruction: step 5 - Done!
Preview

Insert the photo from the side.

To fit all designs in A4 wood plate, frame size is a bit smaller than normal photo size(100×150mm)

You might need to cut the outer part of the photo slightly.
