Dad's Coffee Capsule Holder

Instruction

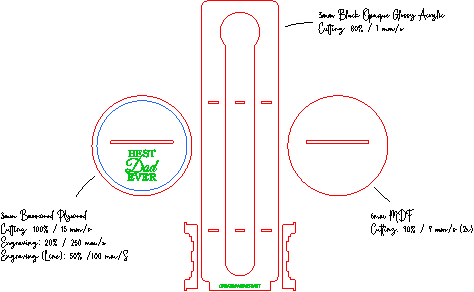

coffeeholder1.0.xcs
coffeeholder1
.0
Application scenario
Laser processing (15min)
Machine & module
xTool S1
40W
Compatibles · 9
Material used
3mm Black Opaque Glossy Acrylic
3mm Black Opaque Glossy Acrylic(3pcs)
3mm Basswood Plywood
6mm MDF
20
255

Information

      Even the best coffee mug is useless without coffee. With this capsule holder (for 7 capsules), it's now within easy reach for Dad!

You have to open the pickture file to see the full size!

(Attention! The individual parameters can be found in the XCS file)


Instruction

1

Step1

Dad's Coffee Capsule Holder instruction: step 1 -
Preview

At first - Thank you for the download and have fun building! We will start with cutting the acrylic parts.

2

Step2

Dad's Coffee Capsule Holder instruction: step 2 -
Preview
Dad's Coffee Capsule Holder instruction: step 2 -
Preview

Please take the brackets and place each one into the recesses in the base plate. Starting with one side, bend the bracket and the base plate simultaneously to push the other side through the opening. A little bit of feeling is required—please do not bend too forcefully.

Once both brackets are in place, please place the middle section using the existing recesses. We'll permanently secure the middle section with a little superglue.

3

Step3

Dad's Coffee Capsule Holder instruction: step 3 -
Preview
Dad's Coffee Capsule Holder instruction: step 3 -
Preview

Now we turn our attention to the base. Once both parts are engraved and cut, we glue everything together.

4

Step4

Dad's Coffee Capsule Holder instruction: step 4 -
Preview

Insert the capsule holder and the stand into each other and fill the stand with coffee capsules. A ribbon completes this gift for Dad.

Done!
