[Laser cut and engrave] Heart Shape Pendant Jig Wooden Craft Template
Project made with xTool D1 Pro machine for Laser cut and engrave.
[Laser cut and engrave] Heart Shape Pendant Jig Wooden Craft Template
[Laser cut and engrave] Heart Shape Pendant Jig Wooden Craft Template

heart shape pendant jig

Instruction
heartpendantjig--9.xcs
heartpendantjig--9
.xcs
Application scenario
Laser processing
Machine & module
xTool D1 Pro
20W
Compatibles · 11
Material used
1/8"(3mm) Basswood Plywood
26
331

Information

      heart shape pendant jig for necklaces, bracelets, or other wearable fashion.

Instruction

1

Step1

heart shape pendant jig instruction: step 1 -
Preview
heart shape pendant jig instruction: step 1 -
Preview
heart shape pendant jig instruction: step 1 -
Preview

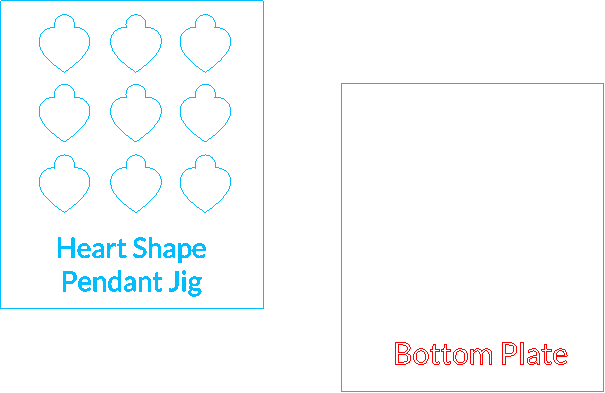

cut out designs in blue, and cut out the baseplate..  glue the top plate and the bottom plate together.  words in RED should already be ignored in the processing..  this jig was cut with minimal tolerance to alleviate any moving of the charm pieces.
