xTool Miniature Beach Chair

Instruction
KlappliegeStrand.xcs
KlappliegeStrand
.xcs
Application scenario
Laser processing (30min)
Machine & module
xTool S1
40W
Compatibles · 11
Material used
1/8"(3mm) Basswood Plywood
265
2362

Information

      Summer can come...!

In addition to materials such as wood and leather, you will also need a skewer (3mm), wood glue and superglue


Instruction

1

Step1

Thank you in advance for your download. I'm glad you like my creation.

We'll start by opening the file in Creative Space.

2

Step2

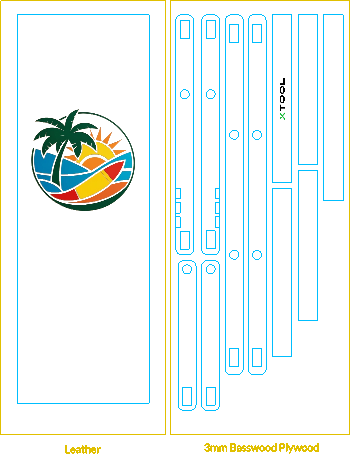

xTool Miniature Beach Chair instruction: step 2 -
Preview

Start Cutting and Engraving.

3

Step3

xTool Miniature Beach Chair instruction: step 3 -
Preview
xTool Miniature Beach Chair instruction: step 3 -
Preview

First we put the long side parts together with the longer short bars

4

Step4

xTool Miniature Beach Chair instruction: step 4 -
Preview

Then follow the rear chair legs (support frame)

5

Step5

xTool Miniature Beach Chair instruction: step 5 -
Preview
xTool Miniature Beach Chair instruction: step 5 -
Preview

Once both parts are finished, we place them together and secure them with 6mm pieces of skewer. Please note that only one side is glued at a time. Otherwise, the chair won't fold.

6

Step6

xTool Miniature Beach Chair instruction: step 6 -
Preview

Next comes the height adjustment element. Once assembled, we secure it with 6mm long skewer rods. Again, please note that both sides are not glued.

7

Step7

xTool Miniature Beach Chair instruction: step 7 -
Preview

The leather seat surface is now glued to the respective ends with a little superglue, see photo.
