Decorative Aluminum Garden Lamp

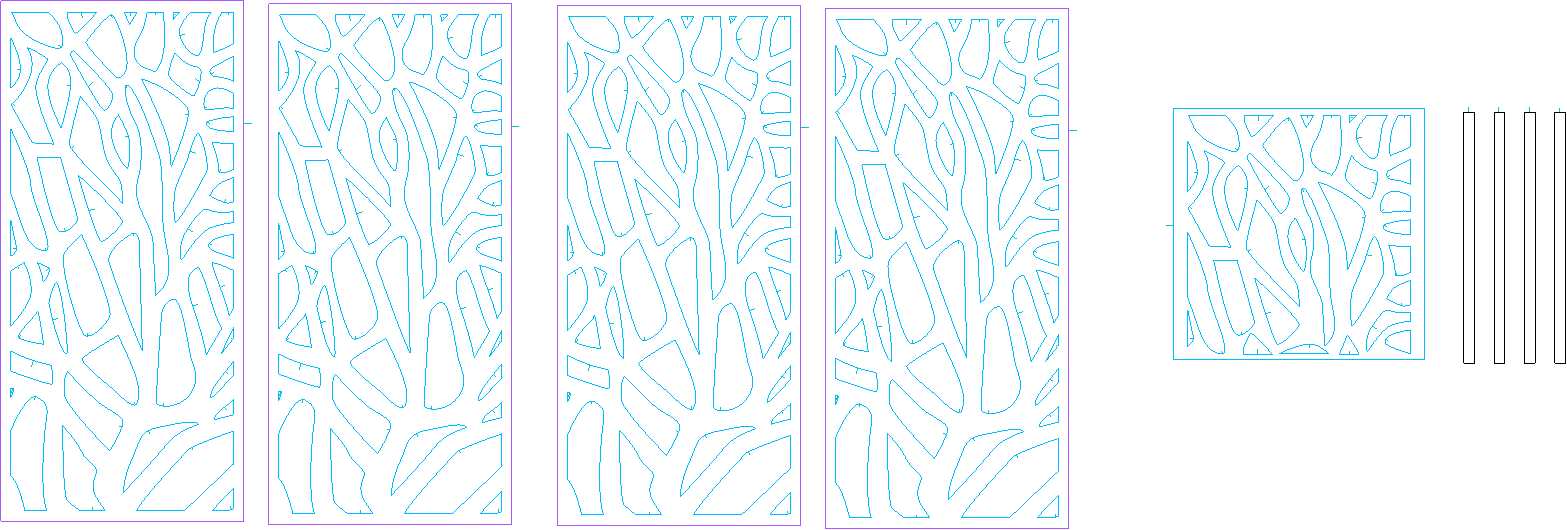

Instruction3mmAluminumGardenLamp
.xcs
Application scenario
Laser welding / cleaning (70min)
Machine & module
xTool MetalFab Laser Welder
1200WCompatibles · 1
Accessories
xTool Wire Feeder
xTool Selected Ary Dryer
xTool Selected Air Compressor
Material used
Aluminum Sheet
143
1639
Information
Are you still using ordinary garden lights? Transform your garden with xTool MetalFab! This aluminum garden lamp is not only elegant but also decorative, resembling a piece of art. The soft lighting creates a magical atmosphere, perfectly illuminating your garden or patio. Its durable design is suitable for outdoor use, making it a must-have for every garden enthusiast.
Instruction
1
Step1: Connect the machine, place the material
Preview
Preview
- Open and connect the welding machine to the cutting platform, then plug on, turn on the gas(nitrogen cylinder of 174 PSI/1.2 MPa or set the xTool air compressor with dryer at the highest pressure of 145 PSI/1.0MPa while xcs will show 0.5-0.7MPa when processing).
- Place a 24''x 24''(610 x 610 mm) sheet on the cutting platform and secure it with the blade and clamps.
2
Step2: Insert the XCS file
Preview
- Turn on the machine, open xTool Creative Space on the computer, drag in the required xcs file, and adjust the parameters.
Parameters for 1/8'' (3mm) Aluminum
- Refer to the built-in settings in Easyset Library of XCS of 5mm Carbon Steel
- Use the right nozzle and gas: ordinary nozzle + 1.2MPa pressure or Telescopic nozzle + 0.6MPa
- Defocus Distance
For ordinary nozzle: -4~-5
For telescopic nozzle: -3~-5
3
Step3: Calibrate the capacitive sensor, Framing and Processing
- Click the start calibration button and then click on the center area of the material image to perform calibration.
- Click the "Framing" to confirm that it is within the processing range. If there are no issues, close the lid, click "Process" and press the "Start" button of the cutting platform.
- Follow the steps above to replace the material and cut out all the patterns
4
Step4: Equipment Switching
Preview
Preview
Preview
- Switch to the nitrogen cylinder and set the pressure to 14.5-29 PSI(0.1-0.2 MPa).
- Disconnect the wiring between the welding machine and the cutting platform
- Remove the capacitor head from the welding gun and install the welding nozzle.
- Install the welding wire and connect the workpiece sensing cable onto the metal part that needs to be welded to complete the circuit.
5
Step5: Assembly and Welding
- Choose the material 1/8'' (3mm) Aluminum to apply the built-in welding parameters, and proceed with welding (Must enable wiring and lasering)
- Pause welding at key points first and then use continuous welding for stronger connection
6
Step6: 4. Must-know Suggestions
- Before cutting, you must correct the red light and confirm the zero-focus position or it will cause bad cutting effects.
- For 3mm-Aluminum cutting, you must set the lead-in lines and enable the soft-start for best cutting results.
- Please choose the correct cutting nozzle and gas pressure: Ordinary nozzle requires pressure over 174 PSI/1.2 MPa of Nitrogen or compressed air. If the air pressure is only about 87 PSI/0.6MPa, must use the telescopic cutting nozzle.
- It is recommended to conduct a small-scale test before cutting and welding to confirm the results before proceeding with further processing.
