Personalized Intricate Cat Tile
Instruction
Information
Exploring different materials. For people wanting "personalzed" accent tiles for their home improvement fun, this is a multi step approach to using an S1 to engrave.
Instruction
Step1: Setting up the material
The first step is to clean your tile. You can wash but do a final wipe with ethanol.
Next take blue tape and make sure to place over the tile without creases or bubbles.
Step2: Process using your laser
Make sure to complete your steps.
First, place tape (shiny side) up. Mark the focal length (tape icon). Next set the processing area (gold flag).

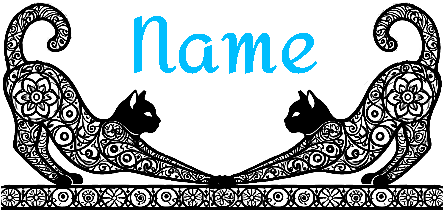

I used different settings for the detailed cat (P35%, speed 10) and increased the speed to 30 for the name)
Make sure to edit the name to reflect your personalization (also make sure to change the setting to process - currently ignore since I wanted to ensure you edited the name).
Make sure the image fits in the processing area.
Before you begin - check the processing area (framing button above process).
Given the detail and speed this will take over 2 hours to process.
Step3: Remove tape and clean
Once the processing is done, remove the tape.
I used a soft brush an water. Final cleaning with ethanol rub.
Enjoy!
