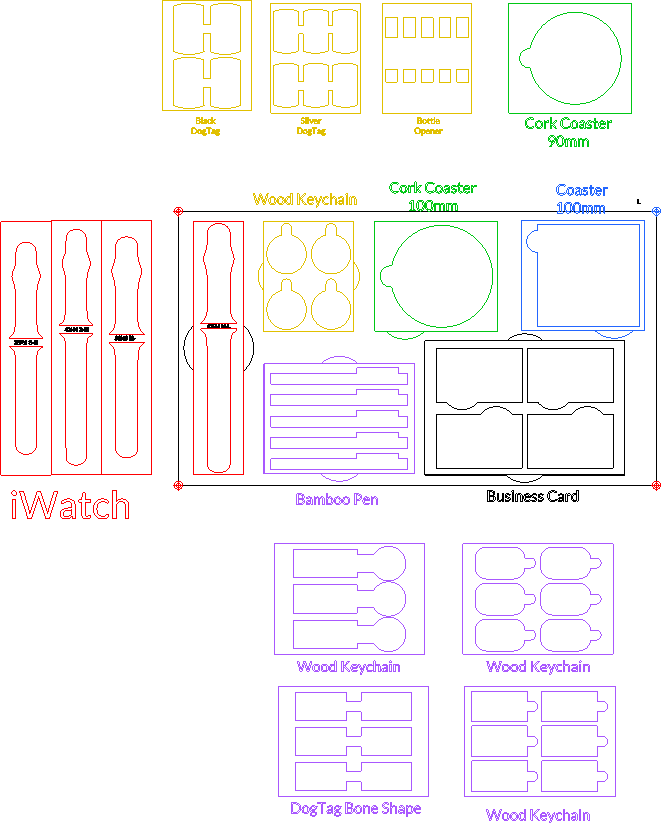

XTool 40W laser Multi Jigs

Instruction
SetJigs.xcs
SetJigs
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40W
Compatibles · 10
Material used
6mm Basswood Plywood
190
1184

Information

      A made a Multi Jig Set up because i think  is the best option for beginners to have everything in order all in one place

Instruction

1

Step1

XTool 40W laser Multi Jigs instruction: step 1 -
Preview

Cut your first Level plywood to 493.45 x 292.74 And score the jigs

2

Step2

XTool 40W laser Multi Jigs instruction: step 2 -
Preview

Remove the First level and do a second one and cut it to 478.05 x 274.3 with the jigs together you must remove the first level jigs and cut only the square with the jig style desire

3

Step3

XTool 40W laser Multi Jigs instruction: step 3 -
Preview

Glue the firs level and the second one, and add the jigs after

4

Step4

XTool 40W laser Multi Jigs instruction: step 4 -
Preview

All ready to gooo good luck i hope you like it
