15-Note Hand-Cranked Music Box

Instruction
Top Cover of 15-Note Hand-Cranked Music Box_D1-10w.xcs
Top Cover of 15-Note Hand-Cranked Music Box_D1-10w
.xcs
Application scenario
Laser processing (60min)
Machine & module
xTool D1
10W, 20W
xTool M1
10W, 5W
xTool M1 Ultra
10W, 20W
xTool P2
55W
xTool S1
10W, 20W, 40W
xTool D1 Pro
10W, 40W, 20W, 5W
Material used
3mm Walnut Plywood
3mm Basswood Plywood

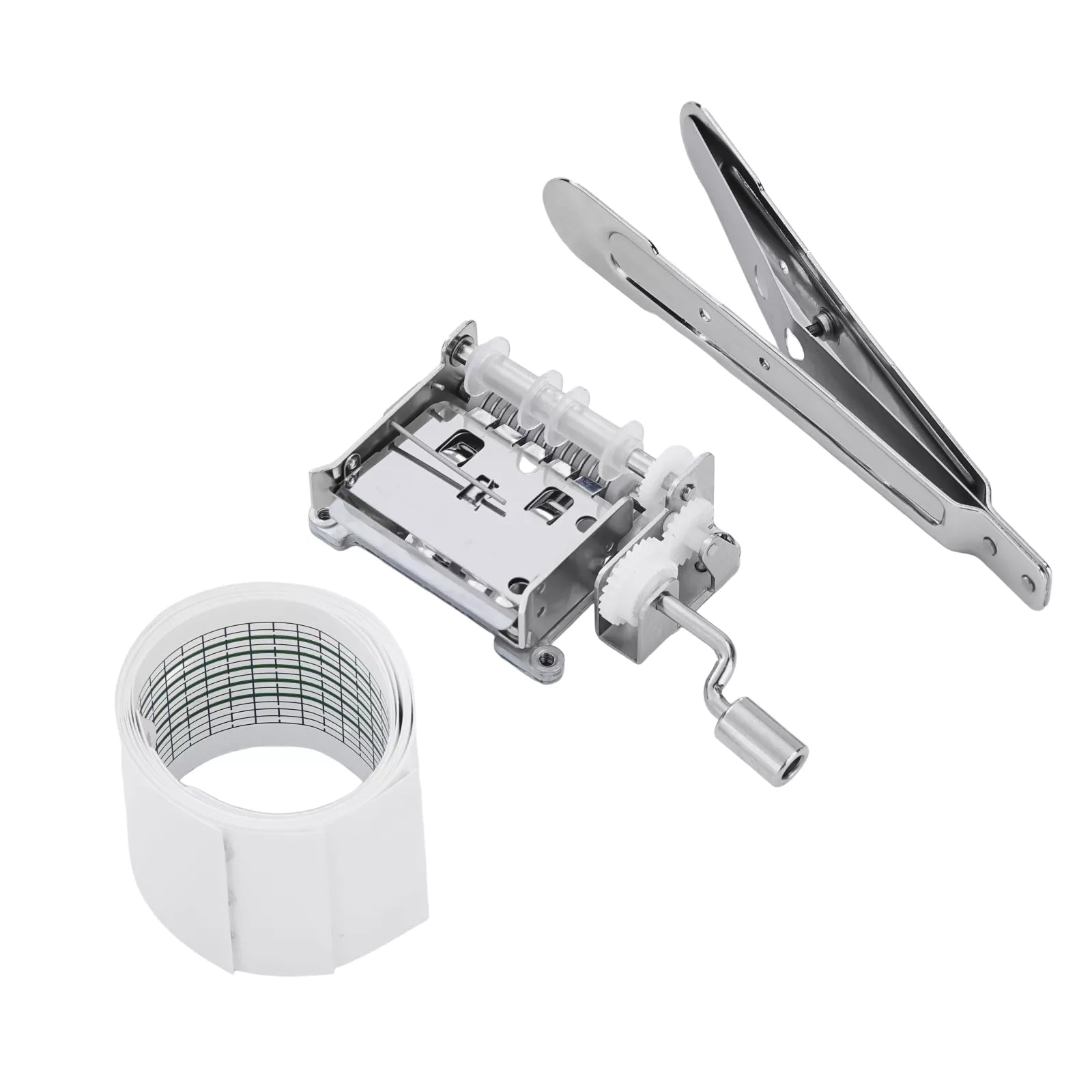

15-note music box movement
60
1830
Information
        The 15-note hand-cranked music box is made with high-quality wood which provides a comfortable touch. The box makes a beautiful decoration in any setting thanks to its fine craftsmanship and elegant wood grain. With its interactive hand-crank design, you can enjoy creating and listening to music at the same time.

  To make the music box a unique present for your friends or beloved ones, you can laser engrave their names and your sincere wishes onto the box.

Bill of Materials
xTool parts
atomm-bom-image
x1
atomm-bom-image
x1

* Currently only available in US store
Instruction
1
Step1: Prepare your laser machine and plywood sheets
Preview
Preview
  1. Turn on your laser machine and connect it to your computer using the USB cable.
  2. Open the xTool Creative Space (XCS) software and connect your machine on XCS.
  3. Open the "Top Cover of 15-Note Hand-Cranked Music Box.xcs" file.
  4. Prepare a 3 mm black walnut plywood sheet and a 3 mm basswood plywood sheet.
2
Step2: Laser engrave and cut the two plywood sheets
Preview
Preview
Preview
  1. Process each plywood sheet in the machine one at a time. After processing the first sheet, select the other canvas on XCS before processing the second sheet.
  2. After the processing is complete, you will obtain the boards shown in the images. Select two boards you prefer to use as the upper and lower covers for the top of the music box. Clean the boards using a tissue before assembly.
3
Step3: Prepare the components of the music box
Preview

The components of the music box are shown in the image, including a wooden box, movement, upper cover, lower cover, and three screws.

4
Step4: Assemble the top cover
Preview
Preview
Preview
  1. Apply glue to the back of the upper cover.
  2. Align the edges of the upper and lower covers, and glue them together. Press the upper cover for 15 seconds to ensure a strong bond.
5
Step5: (Optional) Apply wood polish
Preview
  1. Apply wood polish to the music box's top cover, and you can see the effect shown in the image.
  2. Note: Do not apply wood polish to the boards before sticking them together, as this can prevent the boards from adhering to each other.
6
Step6: Place the movement into the wooden box
Preview
Preview
Preview
Preview
  1. Insert the movement handle into the round hole on the side of the wooden box.
  2. Rotate the movement so that the handle's thickest part can pass through the round hole in the wooden box.
  3. Place the movement flat inside the wooden box with its bottom facing downward.
7
Step7: Secure the music box movement
Preview
Preview

Align the three holes at the bottom of the movement with those at the bottom of the wooden box. From the bottom of the wooden box, insert three screws through the aligned holes and secure them using a screwdriver. This ensures the music box movement is fixed inside the wooden box.

8
Step8: Place the top cover
Preview

Place the top cover on the wooden box. Now, the assembly of the music box is complete.

9
Step9: Use the Music Box
Preview
Preview
Preview
2 More images
  1. Align the puncher’s cross mark with a horizontal-vertical intersection on the paper strip, and press the puncher to punch a hole. You can punch any number of holes.
  2. Feed the punched paper strip into the music box's input slot, following the direction marked on the paper strip.
  3. Note: Feed the punched paper strip into the music box from the input slot framed in red in the image.
  4. Insert the paper strip into the music box movement from the input slot. After the movement tinkles or the handle starts to rotate automatically, turn the handle clockwise to play the music. Enjoy the melody you've created!
