Laser Cut Wooden Sport Sign with Shoe and Ball Icons
Instruction
Sport
.xcs
Application scenario
Laser processing (120min)
Machine & module
xTool S1
20WCompatible xTool Machine
M2
10W, 20WF2 Ultra UV
5WF2
15WP3
80WF2 Ultra
40WF1 Ultra
20WM1
5W, 10WD1
5W, 10W, 20WD1 Pro
5W, 10W, 20W, 40WP2
55WF1
10WS1
10W, 40WM1 Ultra
10W, 20WP2S
55WMaterial used
1/8"(3mm) Basswood Plywood
10
532
Information
📝 Summary
Modern wall-mounted medal hanger made from plywood panels sized 50 × 30 cm, designed for strong laminated construction and a premium 3D layered look.
The hanger is built from 4 separate plywood parts, which are glued together to create a rigid and durable structure.
On top of the base structure, a separately cut and engraved decorative title piece is mounted to achieve a clean 3D raised effect.
The top decorative design (sport name and graphics) is customizable and can be changed depending on the sport theme.
Perfect for athletes who want a bold and personalized medal display.
Instruction
1
Step1
⚙️ Design Concept
Strong laminated construction for stability.
Engraved sport title is interchangeable (Football, Hockey, Athletics, etc.).
Raised top piece creates premium layered look.
Optimized for laser cutting.
Clean cut lines and engraving separation.
🛠 Assembly Instructions
Cut all 4 plywood parts.
Lightly sand edges.
Dry-fit layers to ensure alignment.
Glue structural layers together.
Clamp and allow full curing.
Glue the engraved decorative top layer.
Optional: Sand lightly and apply finish (paint / varnish).
Mount securely to the wall.

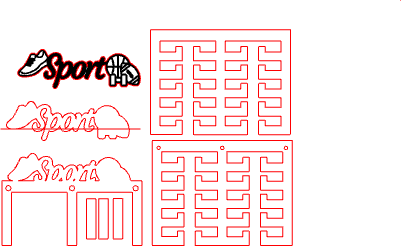

📂 Files Included
50 × 30 cm base panels
Layered structural layout
Engraved decorative top design
Ready-to-cut vector files
Separate decorative title file for customization
