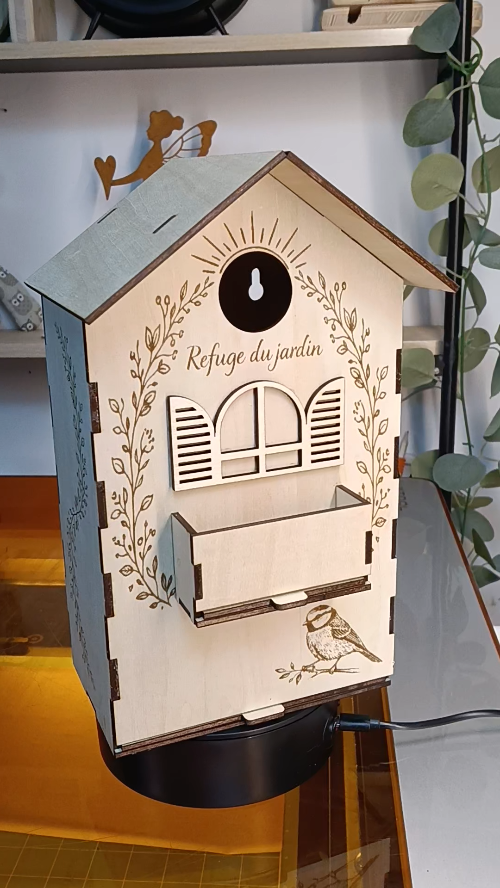

🌿 Garden Refuge – Original engraved birdhouse, designed according to the needs of local birds

Remix
Instruction
cabane a oiseau.xcs
cabane a oiseau
.xcs
Application scenario
Laser processing (90min)
Machine & module
xTool M1 Ultra
10W
Compatibles · 13
Material used
1/8"(3mm) Basswood Plywood
gift
417
6305

Information

      🏡 Presentation of the project
🌿 Refuge du Jardin – Birdhouse adapted to the birds in my environment

This project was born from a simple desire:
Creating a home that is actually useful for the birds in my environment, and not just a beautiful decorative object.

Before designing this birdhouse, I did a lot of research on the species around my home, including, small passerines and other local cave-dwelling birds.
I was particularly interested in:

The right inlet diameter to avoid predators

The ideal depth for nesting

The absence of a perch (in order to limit the risks)

Natural ventilation

The recommended direction

Every dimension of this cabin has been designed to meet the real needs of the birds in my area.
This cabin has 2 cleaning hatches, 1 for food in the small balcony and the other under the cabin so that I can clean it easily, in addition to a removable roof pant that I don't stick.

✨ Creative concept

I wanted to transform a simple nesting box into a real "Garden Refuge".

The botanical engravings represent:

The surrounding natural vegetation

Harmonious integration into the landscape

A safe and warm space

The sun engraved on the roof symbolizes the thoughtful orientation of the birdhouse.

🪵 Manufacturing

Material: Plywood 3 mm 3 sheet of 30cmx30cm

Precise cutting and assembly

Optimized design for repeatability

Clean and reusable files provided

The interlocking connection allows for a solid structure despite the thinness of the material.

🐦 Animal Interaction

This birdhouse has been designed to be used in real life.
It is not just a decorative object, but a shelter designed to welcome and protect local birds.

The aim is to promote local biodiversity and encourage the sustainable installation of birds in the garden.

🎯 Approach

I took care of:

✔ Create an original design
✔ Respect the biological needs of local birds
✔ Combining aesthetics and functionality
✔ Produce a fully physical and finalized project

For me, this project represents the balance between craftsmanship, creativity and respect for nature.

https://www.facebook.com/share/p/1C48WEqCL5/


This remix is based on

atomm-remix-cover
Sliding Lid Keepsake Box
template master Pro

Instruction

1

Step1

🌿 Garden Refuge – Original engraved birdhouse, designed according to the needs of local birds instruction: step 1 -
Preview

🏗️ Assembly


Steps

🟢 Step 1 – Prep

Check that all parts are clean and burr-free.

Lightly sand the edges if necessary.

Do a blank mount (without glue) to check the fit.


🟢 Step 2 – Mounting the sides

Insert the side panels into the notches on the back panel.

Add the floor in the grooves provided.

Apply a thin line of glue in each notch.

Hold for a few minutes.

⚠️ Make sure to keep everything straight while drying.


🟢 Step 3 – Installing the façade

Apply glue to the remaining notches.

Position the front panel.

Check the alignment.

Hold under pressure for 15–20 minutes.


🟢 Step 4 – Installing the roof

Glue the first roof slope.

Leave it slightly to protect the entrance from rain.

Add the second panel.

Hold with rubber bands or clamps.

Let dry for at least 1 hour.


🟢 Step 5 – Adding the decorative elements

Glue the window and engraved shutters.

Attach the decorative balcony.

Clean up any traces of glue.


🌿 Outdoor protection (recommended)

For sustainable outdoor use:

Apply a natural oil or ecological protection.

Do not varnish the interior.

Do not process the hole entry.


📍 Installation

Recommended height: 2 to 4 meters

Orientation: East or Southeast

Avoid full sun and prevailing winds

Do not install a perch


🐦 Tips for Promoting Installation

Install before spring.

Avoid areas that are too exposed to predators.

Do not disturb during the nesting period.


🧼 Maintenance

Clean up in the fall after the chicks have left.

Remove old nests.

Check the annual solidity.



facebook link:
