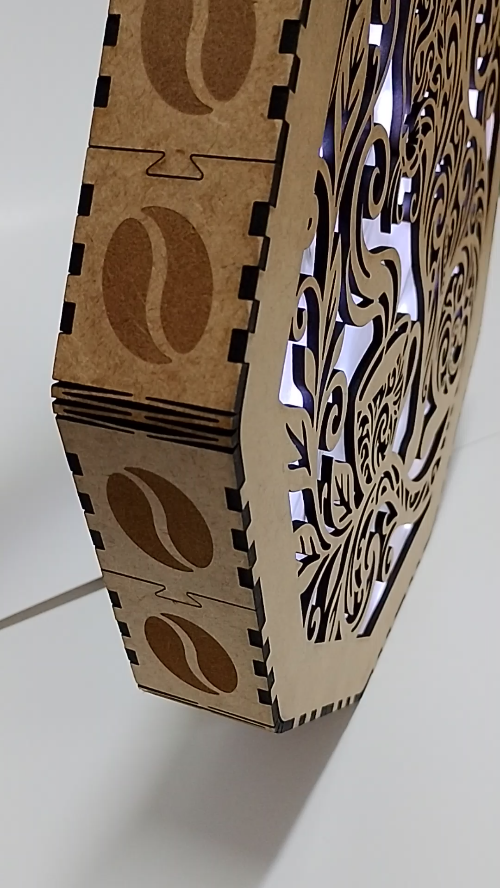

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor

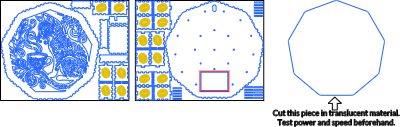

cat lamp with coffee.xcs
cat lamp with coffee
.xcs
Application scenario
Laser processing (150min)
Machine & module
xTool M1
10W
Compatibles · 14
Material used
1/8"(3mm) Faux Maple MDF Board
310
3779

Information

      A lamp for the coffee corner, decorated with the image of a cute cat with its coffee, to make your space more special and cozy.
It can be used either on a table or hung on the wall.


Instruction

1

Step1

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 1 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 1 -
Preview

engrave and cut the pieces in MDF note:I cut out the translucent part on the paper; if you want to make this part in another material, the vector is included in the file. In that case, you will need to test the power and speed.

2

Step2

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 2 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 2 -
Preview
Join all the side pieces together; the joints are very tight. Use a hammer, but be careful not to damage the pieces
3

Step3

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 3 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 3 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 3 -
Preview
Fit the top together, adjusting the parts and carefully securing them with the hammer.
4

Step4

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 4 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 4 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 4 -
Preview
2 More images
Assemble the box to hold the battery for the light bulbs or to thread the wire through. This step will also depend on the type of light you want to use or have available. I used a string of decorative Christmas lights (it was what was available here), but you can use your creativity.
5

Step5

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 5 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 5 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 5 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 5 -
Preview
These small pins help distribute the light a little more evenly, they are also optional ( glue them on if you want to use them that way)  The last two photos show different lighting versions, one with a battery and the other with a plug.
6

Step6

Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 6 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 6 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 6 -
Preview
Laser Cut Wooden Cat and Coffee Cup Light Panel Home Decor instruction: step 6 -
Preview
Attach the back part using the hammer as well, just like with the other parts, be careful to ensure everything fits together without damage. Since all the joints are tight, there's no need for glue, and the lamp is ready to use
