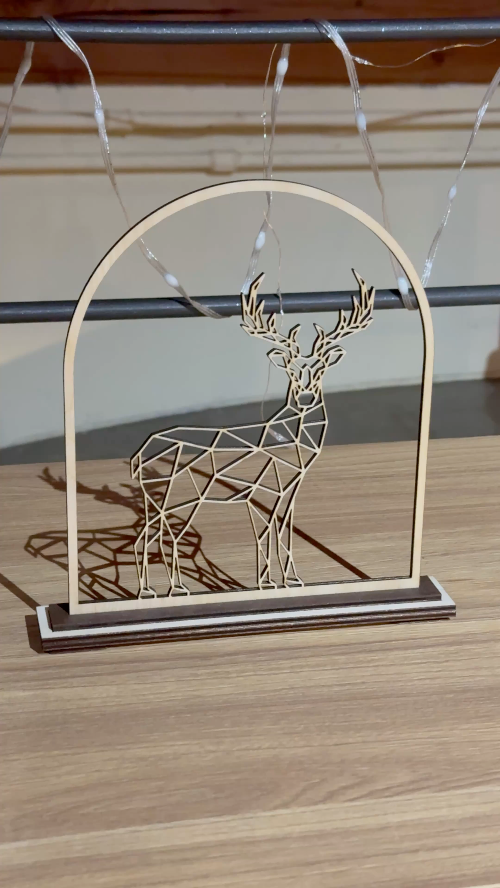

Laser Cut Geometric Deer Wooden Table Ornament

Instruction
DeerDeskDecor.xcs
DeerDeskDecor
.xcs
Application scenario
Laser processing
Machine & module
xTool M1 Ultra
10W
Compatibles · 9
Material used
1/8"(3mm) Basswood Plywood
1/8"(3mm) MDF Board
8

Information

      "Oh deer, look at those lines! 😉 This geometric stag is a super clean cut that adds a modern touch to any space. I used 3mm Basswood for that nice natural finish, but MDF is perfect if you plan to paint it. Easy to assemble and guaranteed to make your other decor jealous."


Instruction

1

Step1

Laser Cut Geometric Deer Wooden Table Ornament instruction: step 1 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 1 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 1 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 1 -
Preview

Step 1:
Glue the two identical wooden base pieces together. Ensure the long slots in both pieces are perfectly aligned to create a single, deep channel.

2

Step2

Laser Cut Geometric Deer Wooden Table Ornament instruction: step 2 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 2 -
Preview

Step 2:
Take the solid rectangular base panel and the open frame panel. gluing them in place. Ensure the outer edges of are perfectly aligned to create a solid, uniform base structure.

3

Step3

Laser Cut Geometric Deer Wooden Table Ornament instruction: step 3 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 3 -
Preview

Step 3:
Flip the base assembly from Step 2 upside down. Glue the two small, square wooden feet onto the bottom surface, placing one at each end of the base.
This will raise the base slightly and provide stability.

4

Step4

Laser Cut Geometric Deer Wooden Table Ornament instruction: step 4 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 4 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 4 -
Preview

Step 4:
Take the slotted strip you assembled in Step 1 and place it into the open rectangular recess of the base assembly. Ensure it fits snugly inside the frame and sits flat, creating the final slot for the deer to stand in.

5

Step5

Laser Cut Geometric Deer Wooden Table Ornament instruction: step 5 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 5 -
Preview
Laser Cut Geometric Deer Wooden Table Ornament instruction: step 5 -
Preview

Step 5:
Finally, take the main deer arch panel shown in and slide it vertically into the slot you just created on the base. Push it down gently until it sits flush and secure. Your geometric stag is now fully assembled and standing tall.

THANKS. IT'S DONE. Now you can relax, this is the only buck you’ll ever make that doesn't require hard work! 🦌💸
