Squares for optimal plywood sheet placement
gabarit
.xcs
Application scenario
Laser processing (1min)
Machine & module
xTool S1
20WCompatibles · 13
Material used
1/8"(3mm) Basswood Plywood
4
55
Information

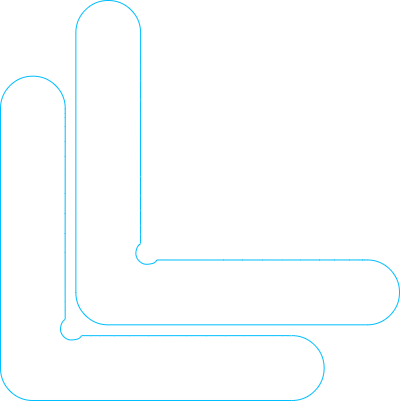

Squares / stops to allow identical placement of your plywood (or other material) sheets on your machine bed when making identical parts over and over.
Parts are roughly 80x80mm.
Simple but effective.
Does not spare you from having to clamp the sheet itself on the bed ;-)
