Harry Potter Magic Disappearing Coin Box

Instruction
Magic Coin Box.xcs
Magic Coin Box
.xcs
Application scenario
Laser processing (60min)
Machine & module
xTool S1
40W
Compatibles · 13
Material used
1/8"(3mm) Basswood Plywood
3
44

Information

      Kids love magic, this Harry Potter Magic Box will amuse the kids and some adults.  It is simple to make and lots of fun.


Instruction

1

Step1

Harry Potter Magic Disappearing Coin Box instruction: step 1 -
Preview

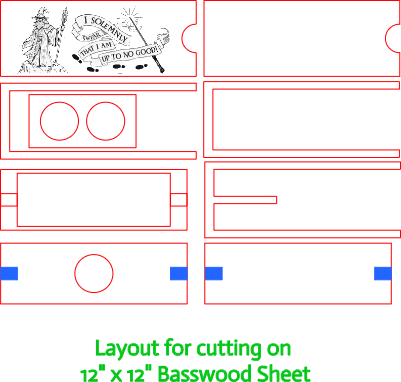

Cutout and Engrave the project parts as shown on canvas 2.

2

Step2

Harry Potter Magic Disappearing Coin Box instruction: step 2 -
Preview
Harry Potter Magic Disappearing Coin Box instruction: step 2 -
Preview
Harry Potter Magic Disappearing Coin Box instruction: step 2 -
Preview
  1.  Layout the Outer Box parts as shown.
  2.  Glue the parts together (Note: Be careful not to use to much glue, it will keep the inner box from sliding in correctly.
  3.  Clamp after gluing (Let dry for 30 min)
3

Step3

Harry Potter Magic Disappearing Coin Box instruction: step 3 -
Preview
Harry Potter Magic Disappearing Coin Box instruction: step 3 -
Preview
Harry Potter Magic Disappearing Coin Box instruction: step 3 -
Preview
  1.  Layout the Inner Box parts as shown.
  2.  Do Not Glue the center coin holder (It needs to move from side to side)
  3.  Glue the othe parts together (Note: Again, be careful not to use to much glue, it will keep the inner box from sliding in correctly.
  4.  Clamp after gluing (Let dry for 30 min)
4

Step4

Harry Potter Magic Disappearing Coin Box instruction: step 4 -
Preview
Harry Potter Magic Disappearing Coin Box instruction: step 4 -
Preview
Harry Potter Magic Disappearing Coin Box instruction: step 4 -
Preview
  1. The Engraving can be done during the cutting stage of after (Your Choice).
  2. Next, lightly sand the boxes.
  3. Check the inner box for fit, it should slide in the outer box.  (You may need to sand the inner box more then the outer box to get the right fit.
5

Step5

Have Fun…
