Pen Template
Instruction

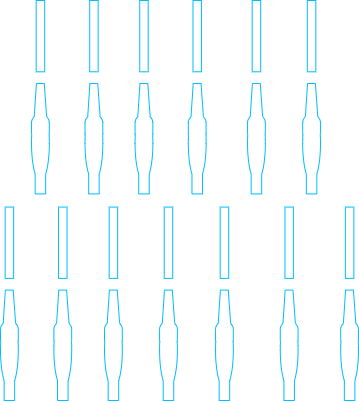

New Pen Template
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40WCompatibles · 13
Material used
1/4"(6mm) Basswood Plywood
3
64
Information
Needed a template for the ball point LED lighted pen so I make one. Placed with clip in top cutout with bottom opening to cradle lower pen. Gives you plenty of lasering space. Glued cutout pieces to bottom of template to give more clearance, but not necessary. Pen does not protrude through openings.
Instruction
1
Step1
Wanted to do multiple pens at a time. Place pen with Clip in upper slot facing down. Bottom of pen will cradle in lower slot for stability.
