Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design

Air Freshener 3mm Basswood.xcs
Air Freshener 3mm Basswood
.xcs
Application scenario
Laser processing (2min)
Machine & module
xTool D1 Pro V2
20W
Compatibles · 13
Material used
1/8"(3mm) Basswood Plywood
42

Information

      This is my version of a reusable/refillable vehicle air freshener. You can run a cord through the 3mm holes in the top of the case and hang it from your rear view mirror. You could add a clip on the back and attach it to the vents in your vehicle.

All you need to add to this design is to cut out a 3mm thick piece of felt, slide it in the top then and add your own scented oils to the felt, then hang it. Easy as pie.

The insert dimensions should be:
 - Width: 48mm
 - Height: 72mm to 77mm (depending on your preference)
 - Thickness: 2mm to 3mm

The whole idea was to make this reusable and refillable.

As this was submitted for the Christmas2025 Contest, I would add Christmas Oil Scents - Cinnamon, Peppermint, Spruce etc etc.


Instruction

1

Step1

Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 1 -
Preview
Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 1 -
Preview
Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 1 -
Preview
4 More images

Notes:

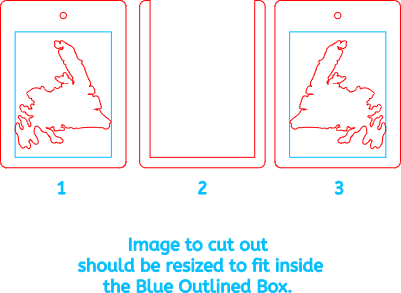

Your own design for the center of the back and front should be with in the confines of the Blue Outlined box, this will allow for 3mm thick felt to fit in nicely. (The image on this design is the outline of the Island of Newfoundland Canada, Where I live.)

2

Step2: Step one

Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 2 - Step one
Preview
Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 2 - Step one
Preview

Place and glue then square up Number Two on top of Number One.

3

Step3

Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 3 -
Preview
Laser Cut Wooden Vehicle Air Freshener with Custom Cutout Design instruction: step 3 -
Preview

Place and glue then square up Number Three on top of Number Two.
