Laser Cut Wooden Merry Christmas Gift Card Holder with Reindeer Design

Instruction
MH_Sane.xcs
MH_Sane
.xcs
Application scenario
Laser processing (25min)
Machine & module
xTool S1
20W
Compatibles · 13
Material used
1/8"(3mm) Basswood Plywood
3

Information

      This foldable wooden Christmas card is designed as a creative and elegant way to gift money. The card consists of two decorative panels and a central bar used for holding rolled banknotes. Once assembled, the card folds together and is securely locked using small wooden tabs, creating a compact and sturdy gift without the need for glue.
The design is modular – only the decorative pattern changes between versions, while the structure remains the same. This makes it perfect for creating multiple themed designs using one proven construction.


Instruction

1

Step1

Laser Cut Wooden Merry Christmas Gift Card Holder with Reindeer Design instruction: step 1 -
Preview
Laser Cut Wooden Merry Christmas Gift Card Holder with Reindeer Design instruction: step 1 -
Preview

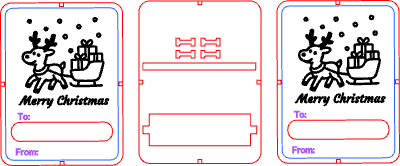

Laser Cutting Information

Designed for laser cutting only

All parts are cut from a single layer

No mandatory engraving (engraving is optional depending on the design)

Slots and tabs are optimized for 3 mm plywood

If using different material tolerance, a test cut is recommended


Parts Included

1× Front decorative panel

1× Back decorative panel

1× Central money holder bar

Multiple small wooden locking tabs


Assembly Instructions

Prepare all laser-cut parts
Remove any soot or residue from cutting and lightly sand edges if needed.

Insert the money holder bar
Place the bar into the center slot between the two panels.

Attach the banknotes
Roll the banknotes and wrap them around the central bar.

Close the card
Fold both panels together over the money holder.

Lock the card
Insert the small wooden tabs into the side slots. The tabs snap into place and securely hold the card closed.

➡️ No glue is required
➡️ The card can be reopened and reused


Design Notes

The card is double-sided, each side features a decorative motif

The structure is identical across all versions

Only the visual pattern changes, making this a reusable system for multiple designs

Ideal for Christmas, holidays, and gift occasions


Use Cases

Christmas money gift

Handmade holiday card

Decorative wooden gift envelope

Reusable keepsake
