Laser Cut Wooden Merry Christmas Money Gift Card Holder

Instruction

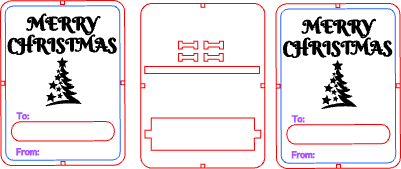

MH_MCH.xcs
MH_MCH
.xcs
Application scenario
Laser processing (25min)
Machine & module
xTool S1
20W
Compatibles · 13
Material used
1/8"(3mm) Basswood Plywood
1
18

Instruction

1

Step1

Laser Cut Wooden Merry Christmas Money Gift Card Holder instruction: step 1 -
Preview
Laser Cut Wooden Merry Christmas Money Gift Card Holder instruction: step 1 -
Preview

Laser Cutting Information

Designed for laser cutting only

All parts are cut from a single layer

No mandatory engraving (engraving is optional depending on the design)

Slots and tabs are optimized for 3 mm plywood

If using different material tolerance, a test cut is recommended


Parts Included

1× Front decorative panel

1× Back decorative panel

1× Central money holder bar

Multiple small wooden locking tabs


Assembly Instructions

Prepare all laser-cut parts
Remove any soot or residue from cutting and lightly sand edges if needed.

Insert the money holder bar
Place the bar into the center slot between the two panels.

Attach the banknotes
Roll the banknotes and wrap them around the central bar.

Close the card
Fold both panels together over the money holder.

Lock the card
Insert the small wooden tabs into the side slots. The tabs snap into place and securely hold the card closed.

➡️ No glue is required
➡️ The card can be reopened and reused


Design Notes

The card is double-sided, each side features a decorative motif

The structure is identical across all versions

Only the visual pattern changes, making this a reusable system for multiple designs

Ideal for Christmas, holidays, and gift occasions


Use Cases

Christmas money gift

Handmade holiday card

Decorative wooden gift envelope

Reusable keepsake


Customization

You can easily:

Change the front and back artwork

Add engraving (names, year, message)

Paint or stain the plywood

Scale the design (keeping material thickness consistent)
