Laser Engraved Material Test Samples for XTool S1

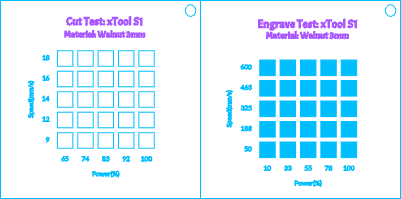

s1 Material Test Array Grid
.xcs
Application scenario
Laser processing (36min)
Machine & module
xTool S1
20WCompatible xTool Machine
F2 Ultra UV
5WF2 Ultra
40WF1 Ultra
20WM1
5W, 10WD1 Pro
40WF1
10WS1
10W, 40WMaterial used
1/8"(3mm) Basswood Plywood
1/8"(3mm) Birch Plywood
1/8"(3mm) Walnut Plywood
1/8"(3mm) Frosted Black Acrylic
304 Stainless Steel
55
1151
Information
I have a new S1 so I made these material test arrays. They differ slightly to the ones loaded into XTS. The file has multiple canvases - basswood, birch, walnut, and frosted black acrylic (all 3mm).
