Light Lattice - Lighting
Instruction
Light Lattice - 6mm Acrylic
.xcs
Show 3 more
Application scenario
Laser processing
Machine & module
xTool P3
80WMaterial used
6mm Acrylic
6mm frosted acrylic
37
Information
Introducing the Light Lattice, a highly contemporary and striking table lamp that seamlessly blends industrial hardware with advanced material design. This piece is a celebration of translucency, structure, and focused light.
The lamp is housed within a sleek, rectangular column crafted from frosted or milky acrylic (Plexiglass) panels. This translucent shell acts as a sophisticated diffuser, softening the internal light source to produce a warm, ambient glow while obscuring the intense glare of the bulb.
Key Features:
Design Style: Contemporary, Industrial-Chic, High-Tech Minimalism.
Materials: Frosted/Translucent Acrylic (Plexiglass) and Polished Metal Hardware.
Aesthetic Appeal: Minimalist rectangular column with detailed "lattice" inserts and exposed structural bolts.
Illumination: Provides a soft, diffused, and uniform ambient light, perfect for modern living spaces or offices.
Instruction
1

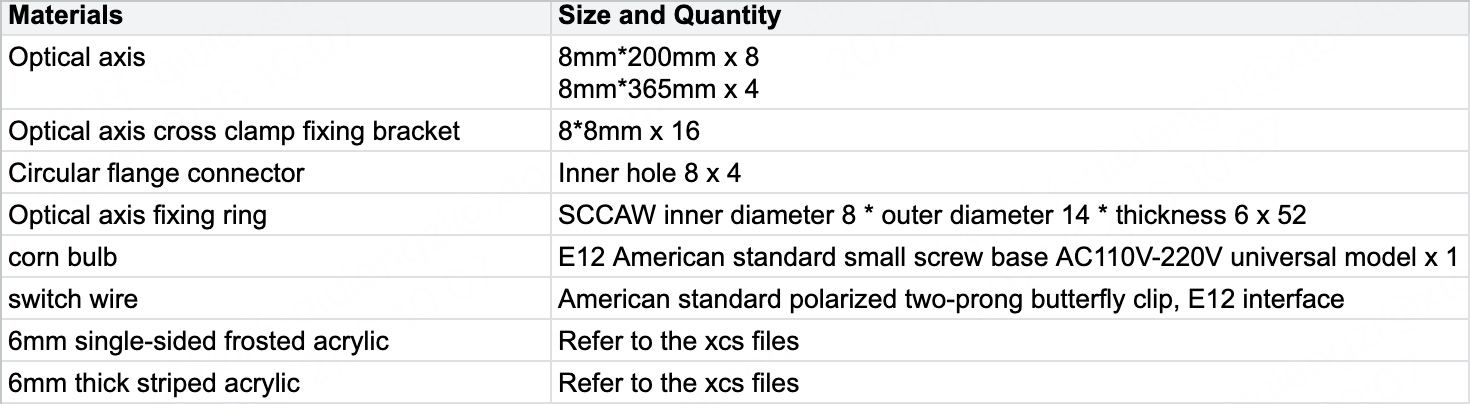

Step1: Bill of Materials
2
Step2: Assembly Steps

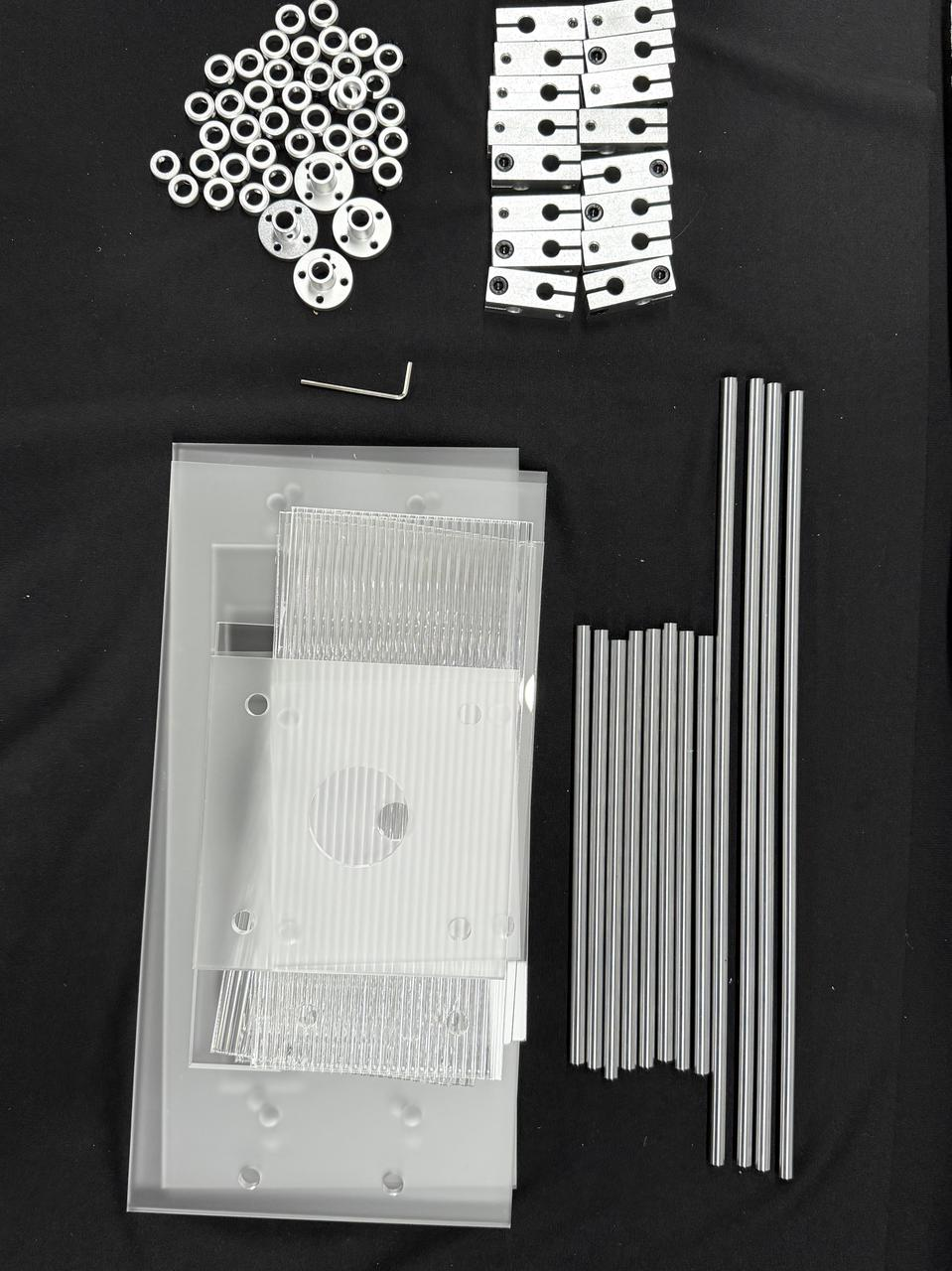

Prepare the installation materials.

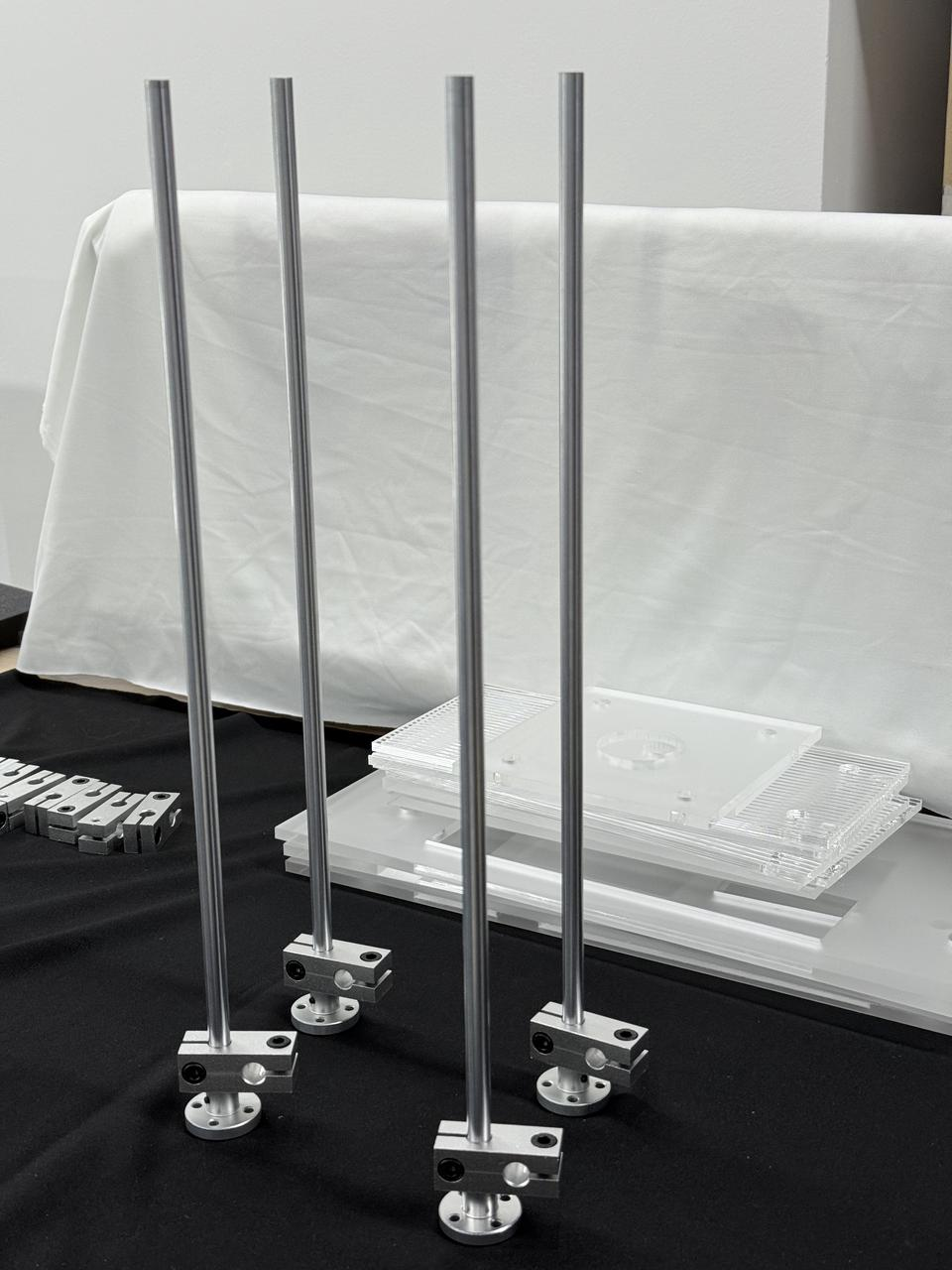

Install four supporting optical axes.

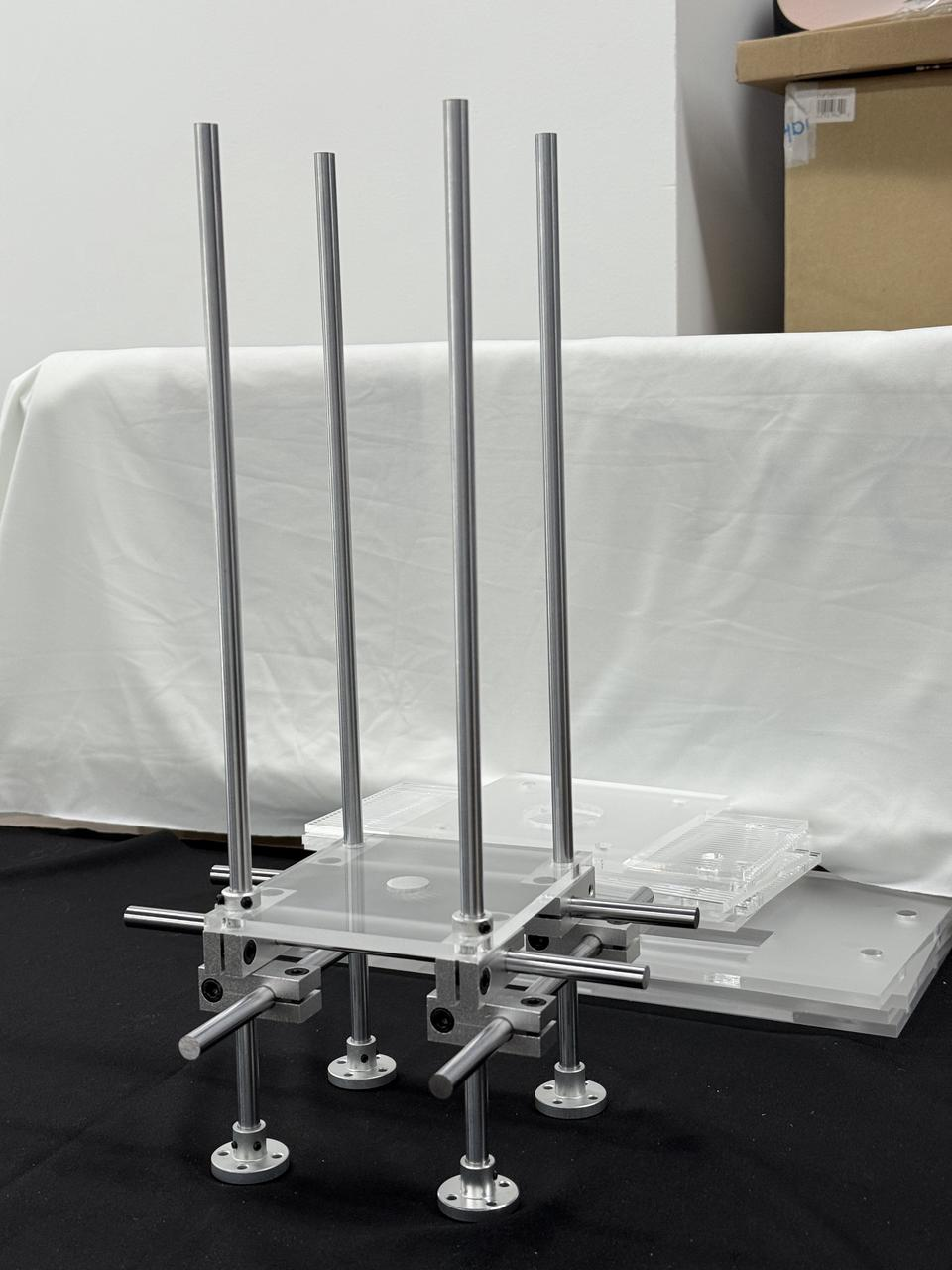

Install the optical axis cross clamp and acrylic plate.

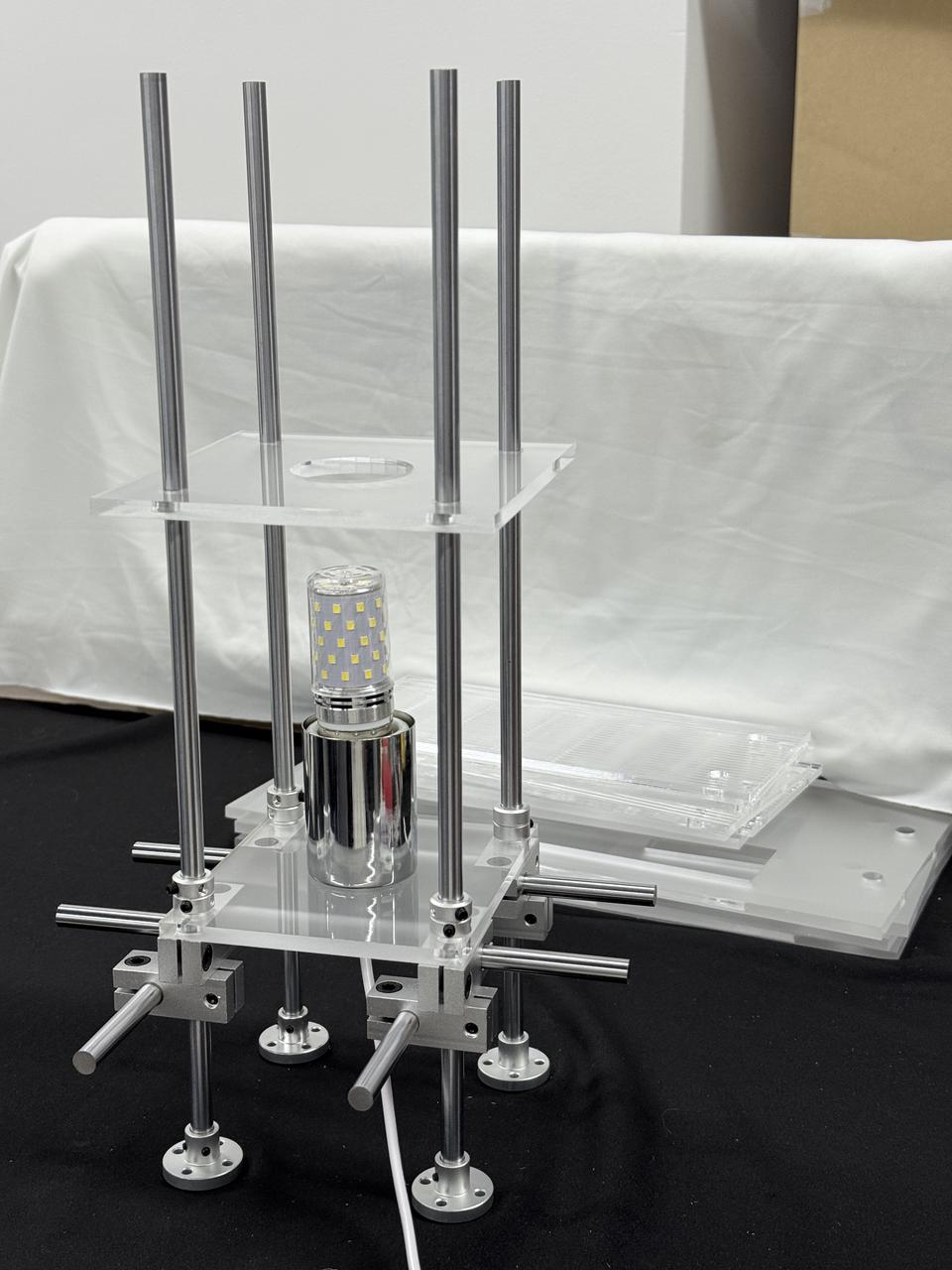

Install light bulbs, lamp holders, and switch wires.

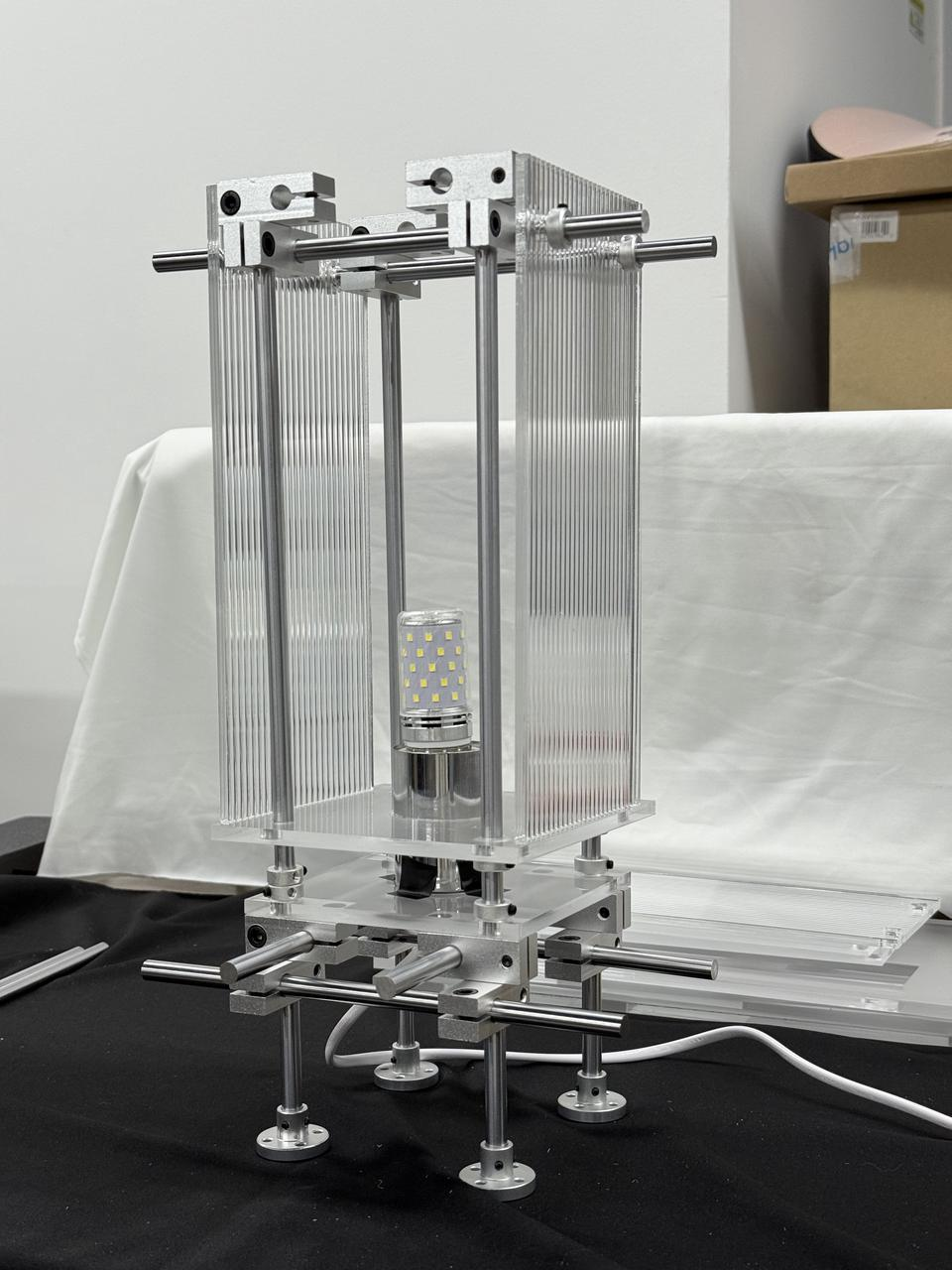

Install the inner striped acrylic.

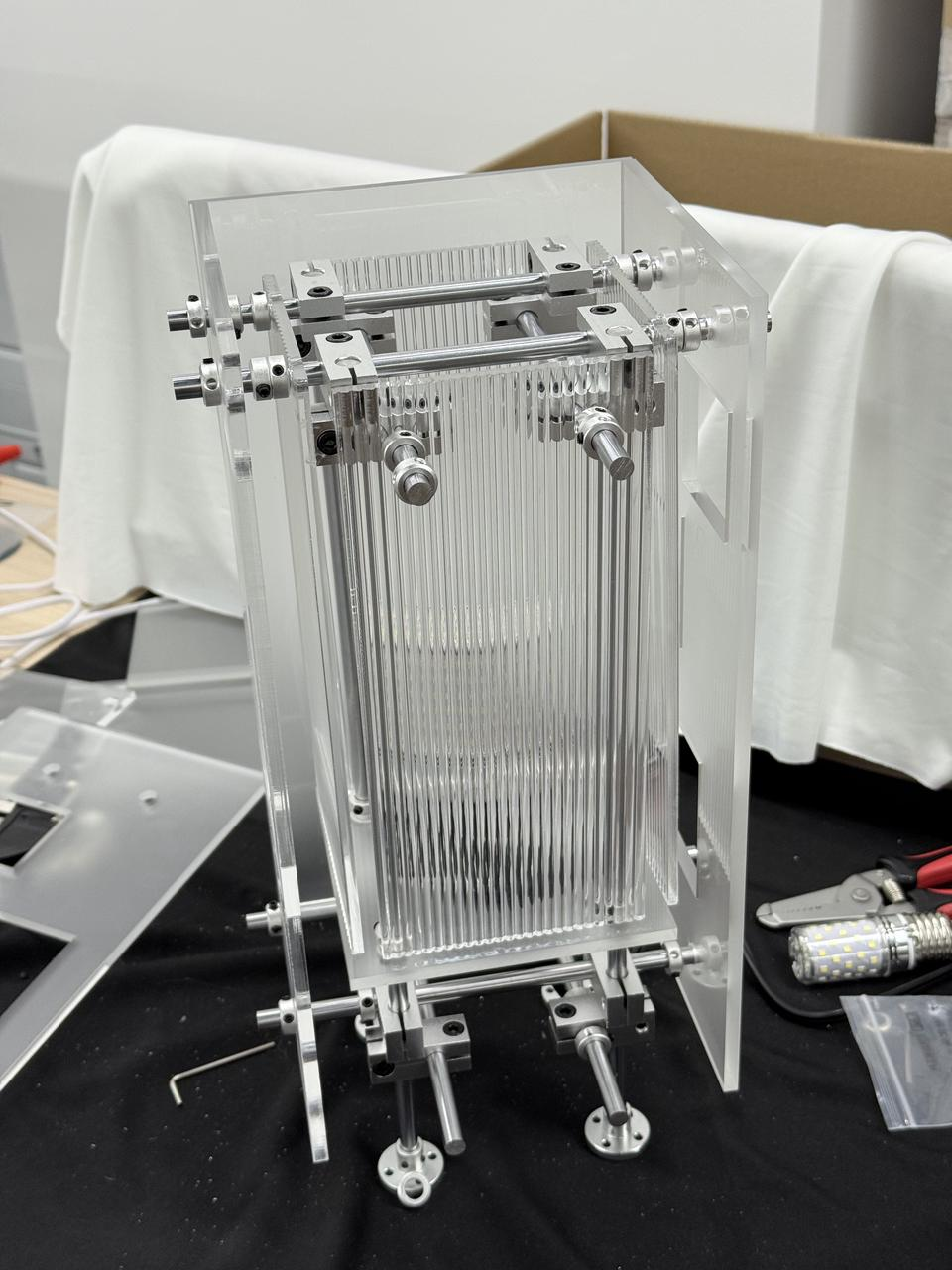

Install the outer frosted acrylic.

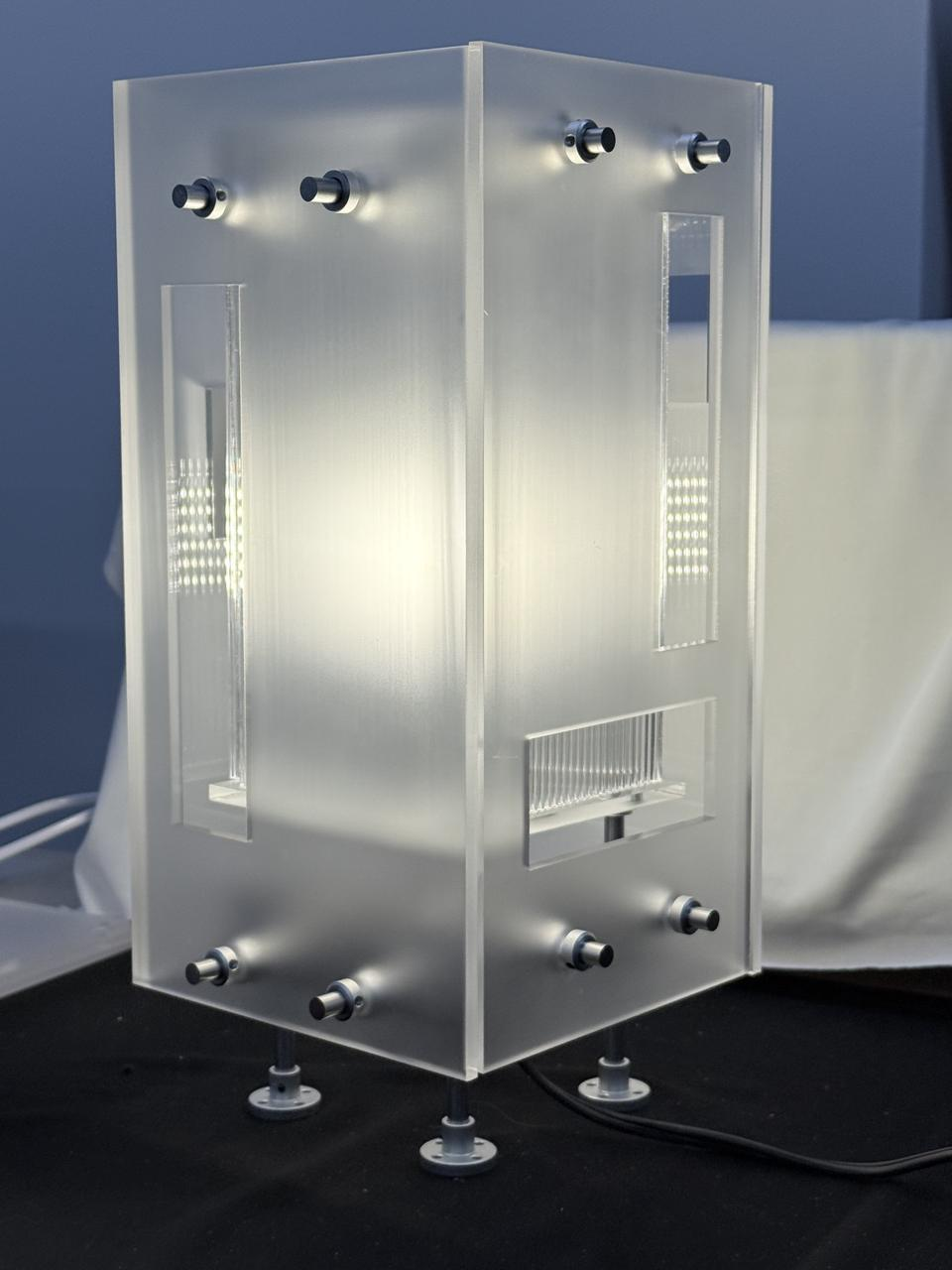

Done!
3
Step3: Notes
- The switch wires and bulbs in the bill of materials are all universal wide-voltage versions compatible with national standards and American standards, which can be replaced, and using transparent switch wires will yield better results.
- Customization of the optical axis may have errors, which need to be adjusted manually during installation.
