Ark Series:Core - Lighting

Instruction
Core - Aluminum.xcs
Core - Aluminum
.xcs
Application scenario
Laser processing、Laser welding / cleaning
Machine & module
xTool P3
80W
xTool MetalFab Laser Welder
1200W
Compatibles · 1
Material used
5/64"(2mm,Ga.12) 1060 Aluminum
7
270

Information

      Introducing the Ark Series: Core, a desk or table lamp defined by its purity of form and sophisticated material selection. This design strips lighting down to its essential structure, celebrating simplicity and refined craftsmanship.
The "Core" features a tall, open metal cage or frame (likely blackened or dark-finished steel/metal) that encases a prominent, vertical light source. The geometric, skeletal framework provides an industrial yet elegant container for the light.

Key Features:
Design Style: Minimalist, Industrial, Architectural.

Materials: Dark-finished Metal (Steel/Iron) and Exposed Glass Filament Bulb.

Aesthetic Appeal: Open, skeletal cage structure that emphasizes verticality and light source.

Illumination: Direct, warm, and ambient light, suitable for task lighting or decorative placement.


Instruction

1

Step1: Bill of Materials

2

Step2: Assembly Steps

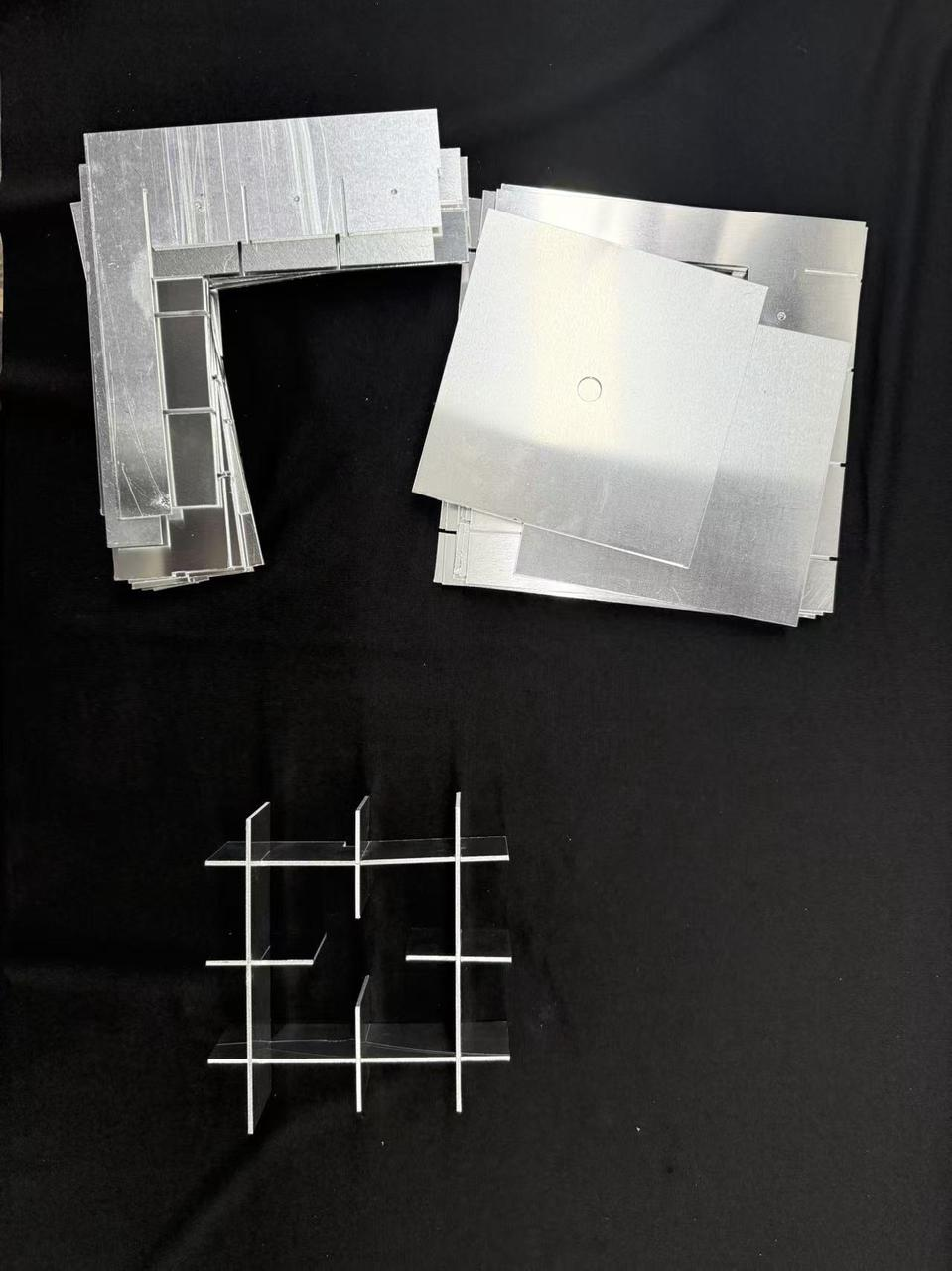

Prepare the installation materials.

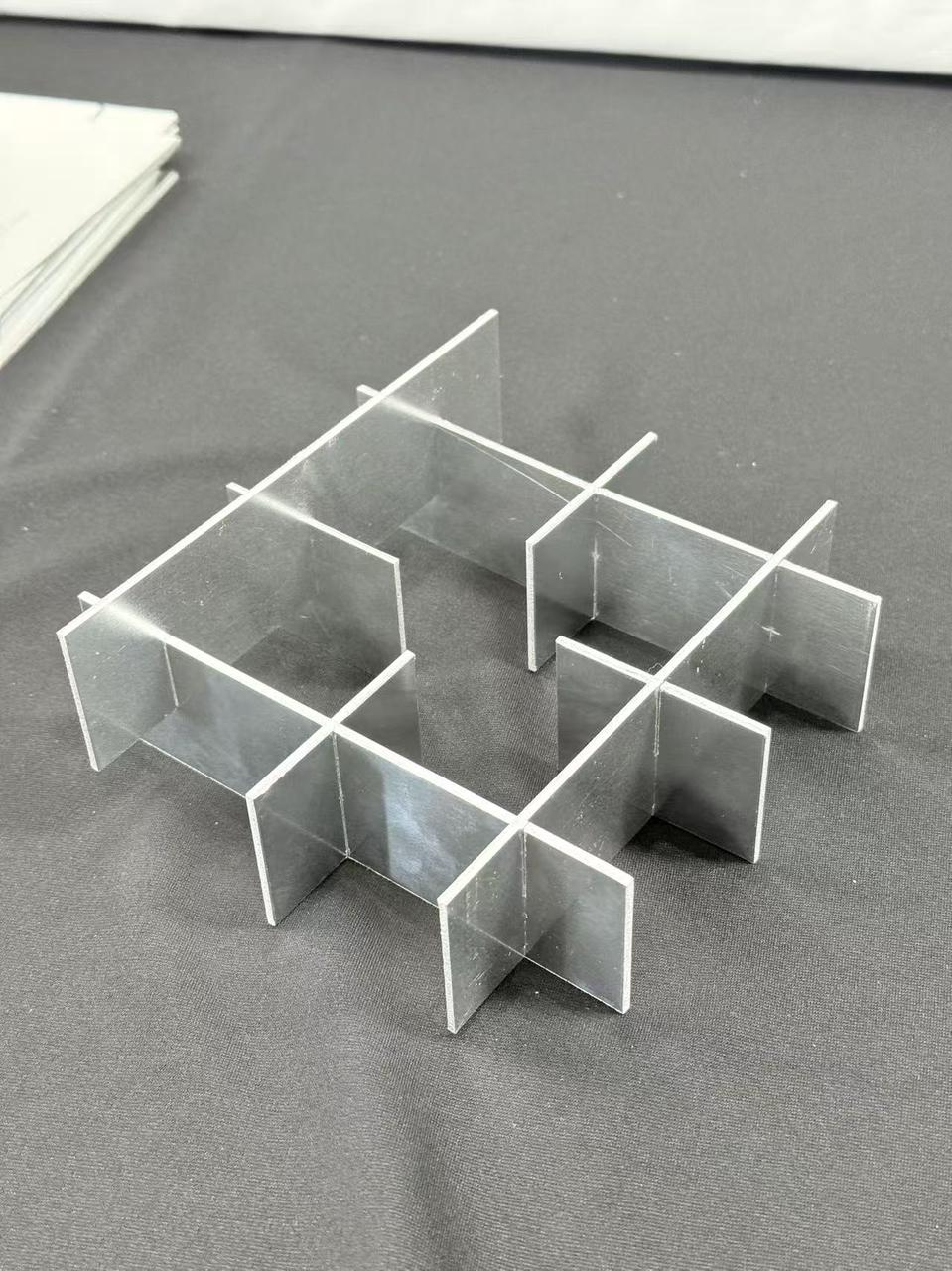

Install the base, in an interspersed manner.

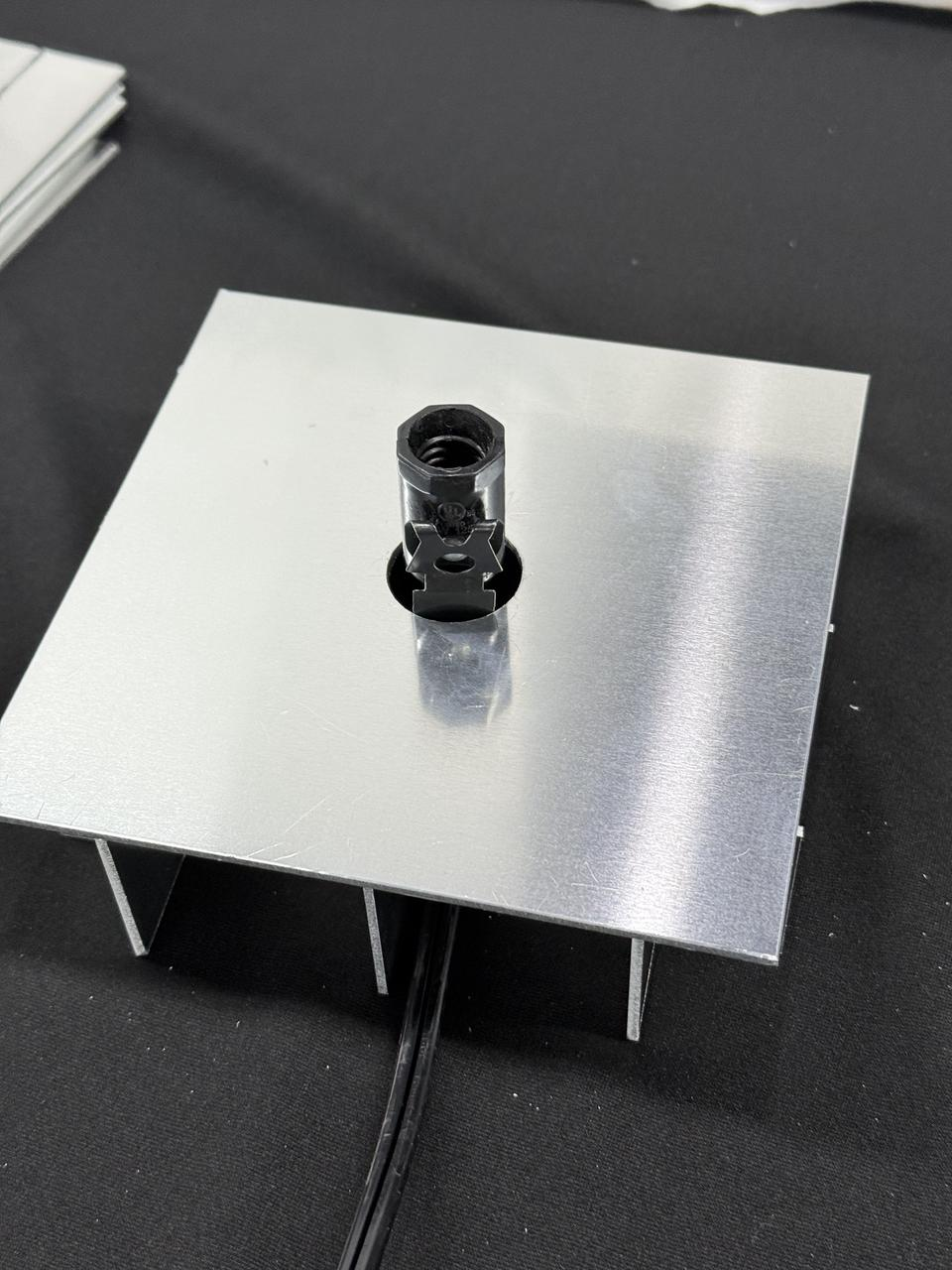

Install the lamp base.

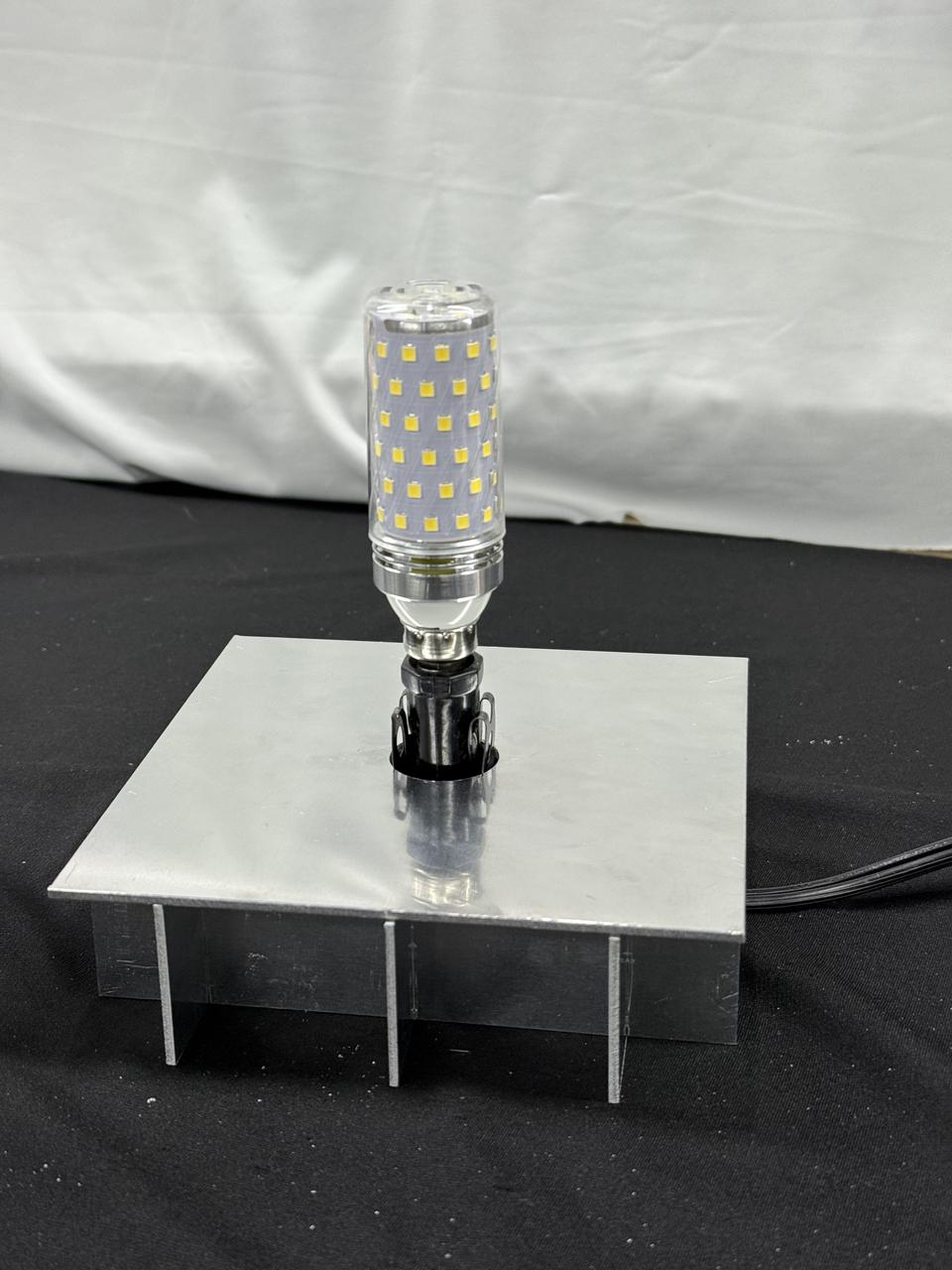

Install the light bulb.


Install the upper aluminum plate frame, in an interspersed manner.

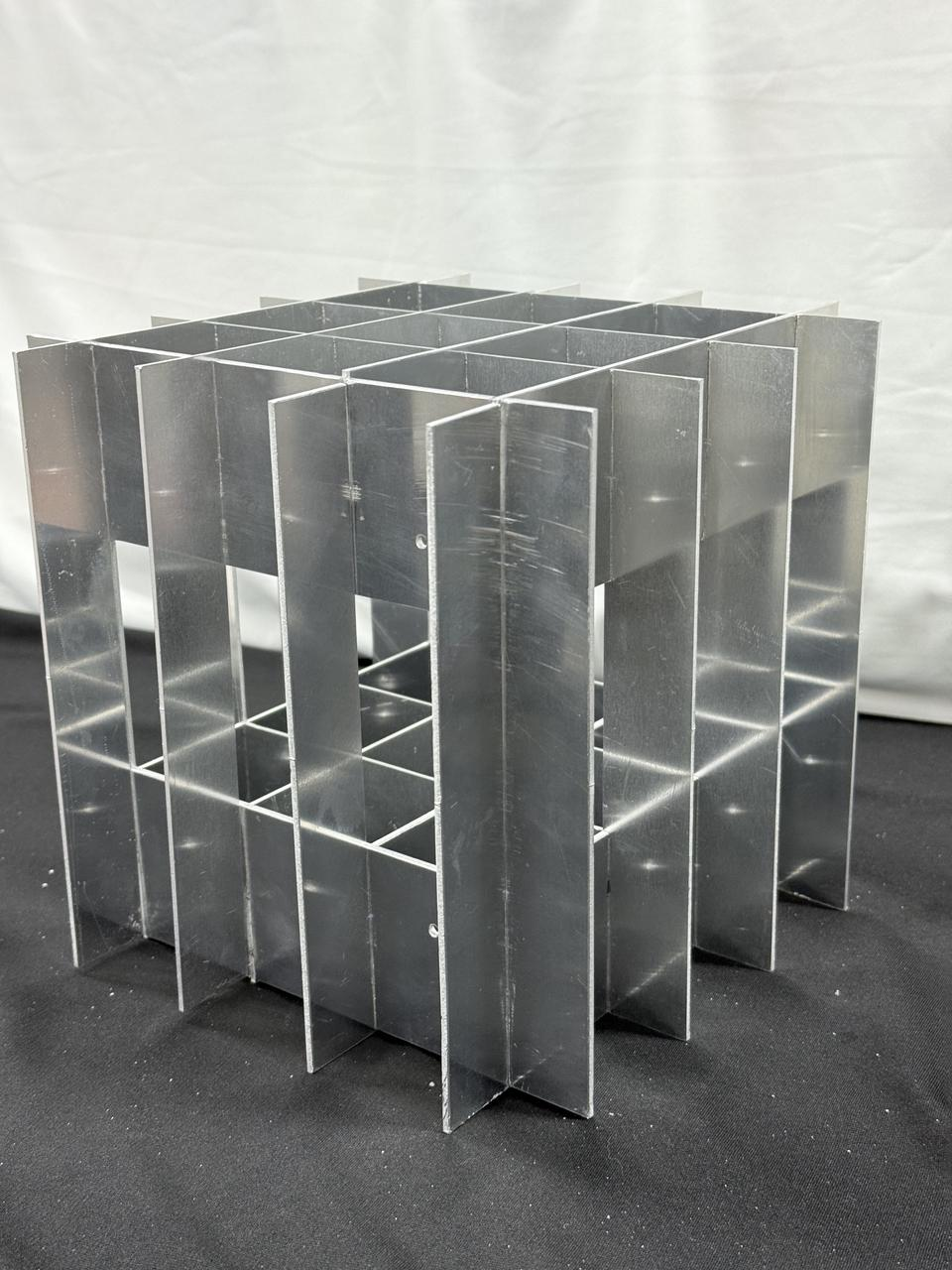

The upper layer installation is completed.

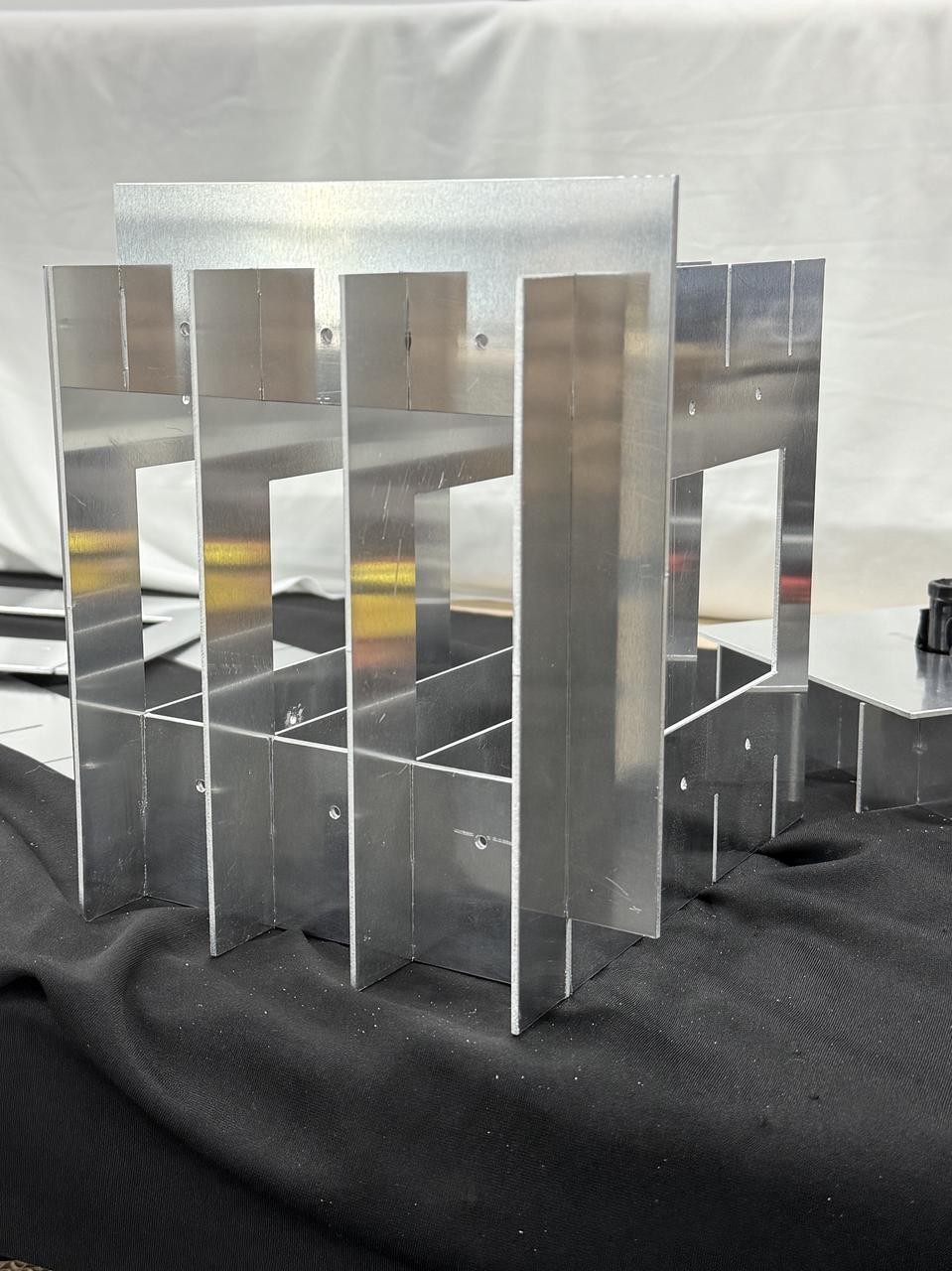

Connect the upper and lower layers.

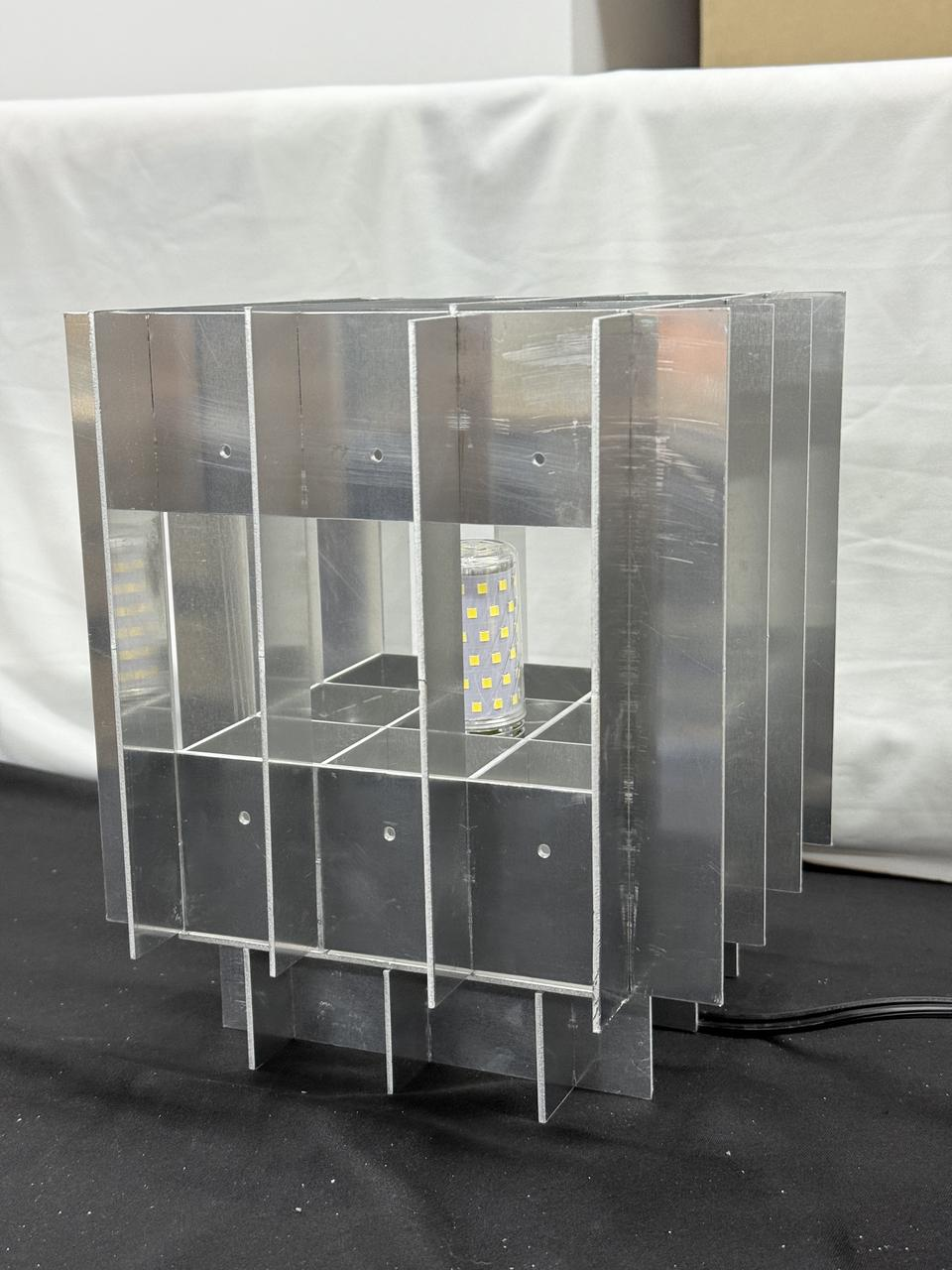

Install 12 external hot-bent acrylics, completed!

3

Step3: Notes

  • In the case of interspersed installation of aluminum plates, there may be situations where they are too tight to install. You can use a hammer or reserve an error during cutting.
