Ark Series: Grid - Lighting
Instruction
Grid - Acrylic
.xcs
Show 3 more
Application scenario
Laser processing
Machine & module
xTool P3
80WCompatibles · 13
Material used
1/8"(3mm) Walnut Plywood
4
275
Information
Introducing the Ark Series: Grid, a stunning table lamp that embodies the luxury and geometric precision of Art Deco and mid-century design. This piece elevates any interior, serving as a beacon of structured elegance whether placed on a desk, console, or bedside table.
Key Features:
Design Style: Art Deco / Mid-Century Modern with Architectural detailing.
Materials: Premium Dark Hardwood, Polished Brass/Gold-Toned Metal, and Clear Acrylic/Plexiglass.
Aesthetic Appeal: Floating cubic design with high-contrast, reflective panels.
Illumination: Creates a soft, warm, and structured ambient light.
Instruction
1

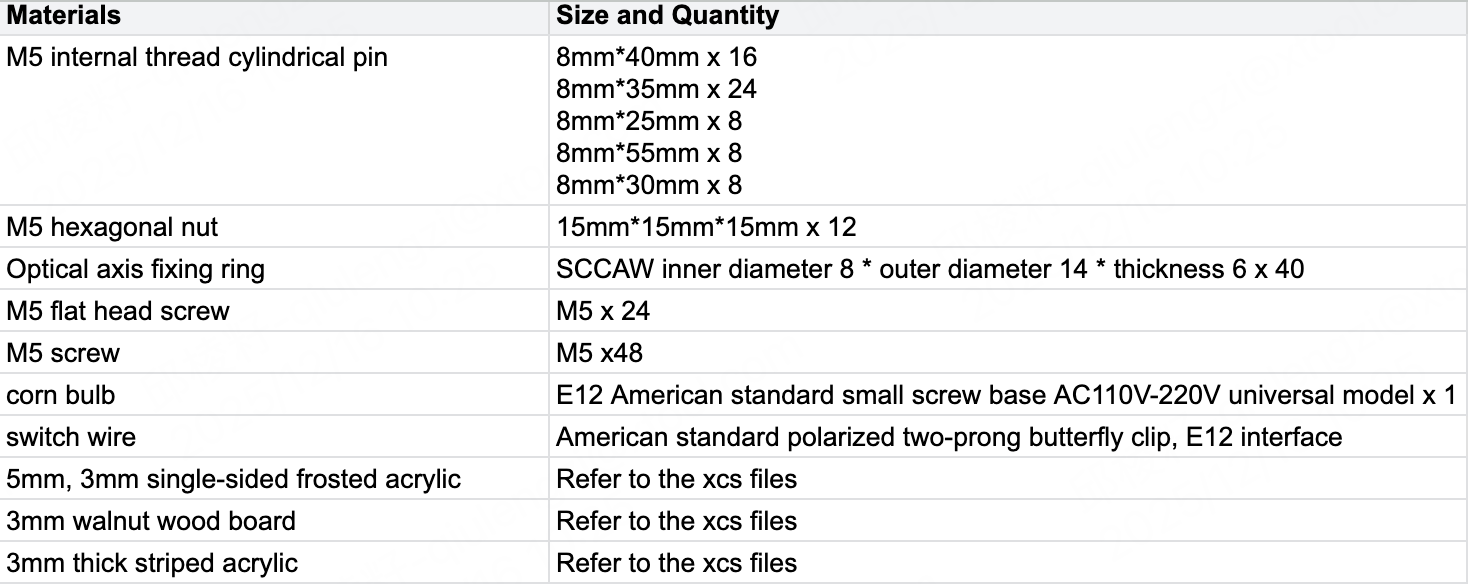

Step1: Bill of Materials
2
Step2: Assembly Steps
Prepare the installation materials.

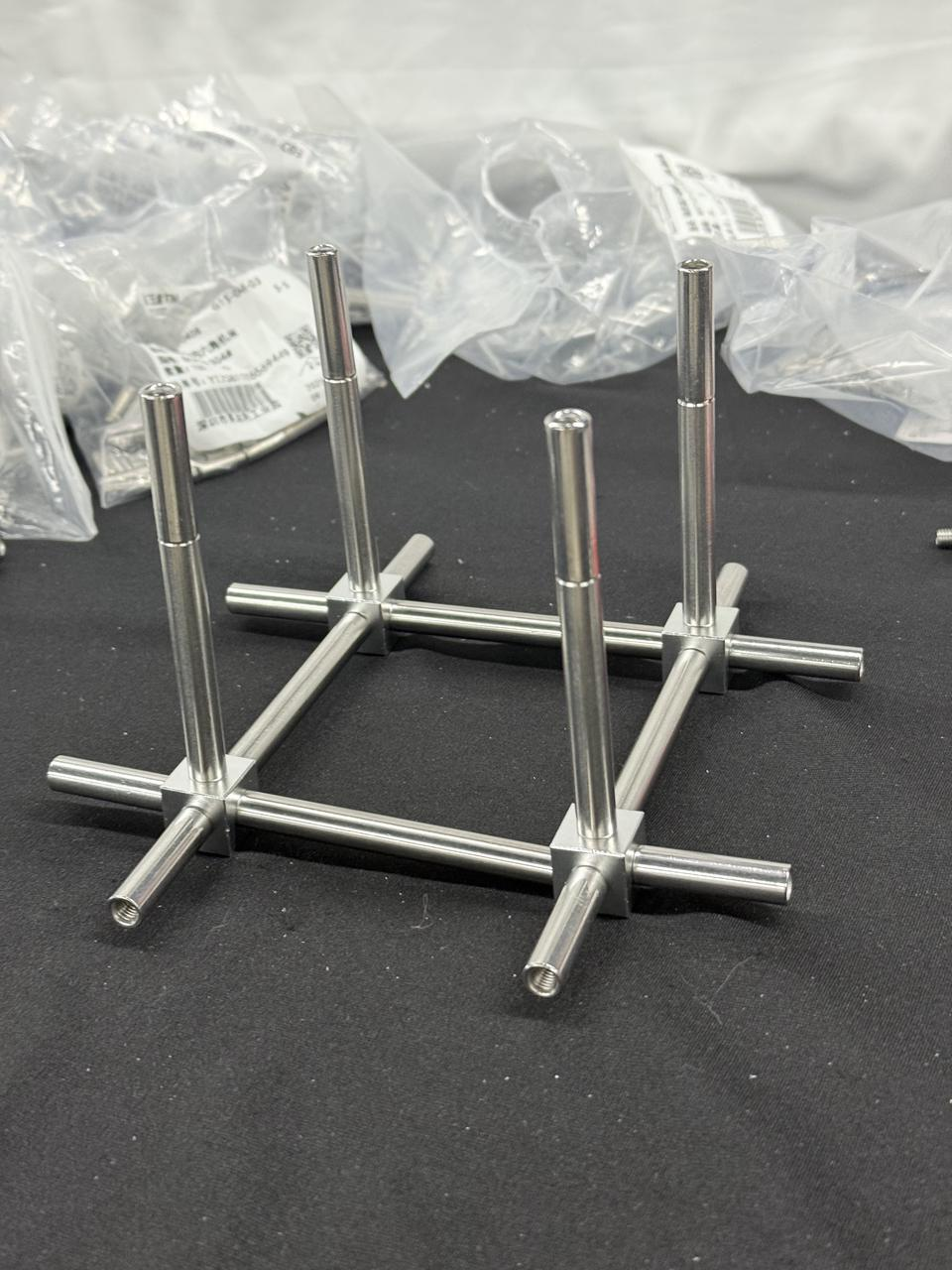

Install the underlying support framework.

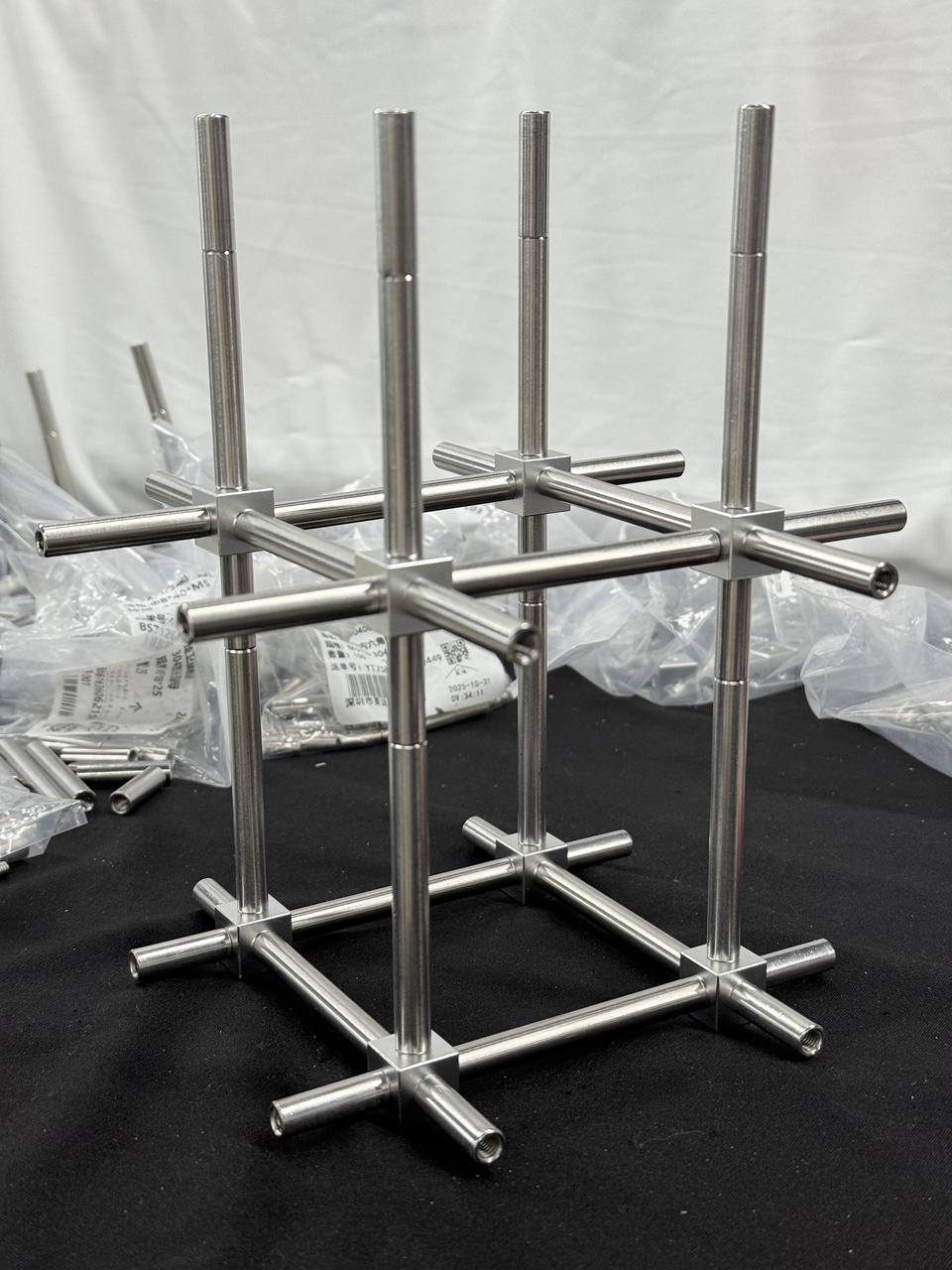

Install the support framework.

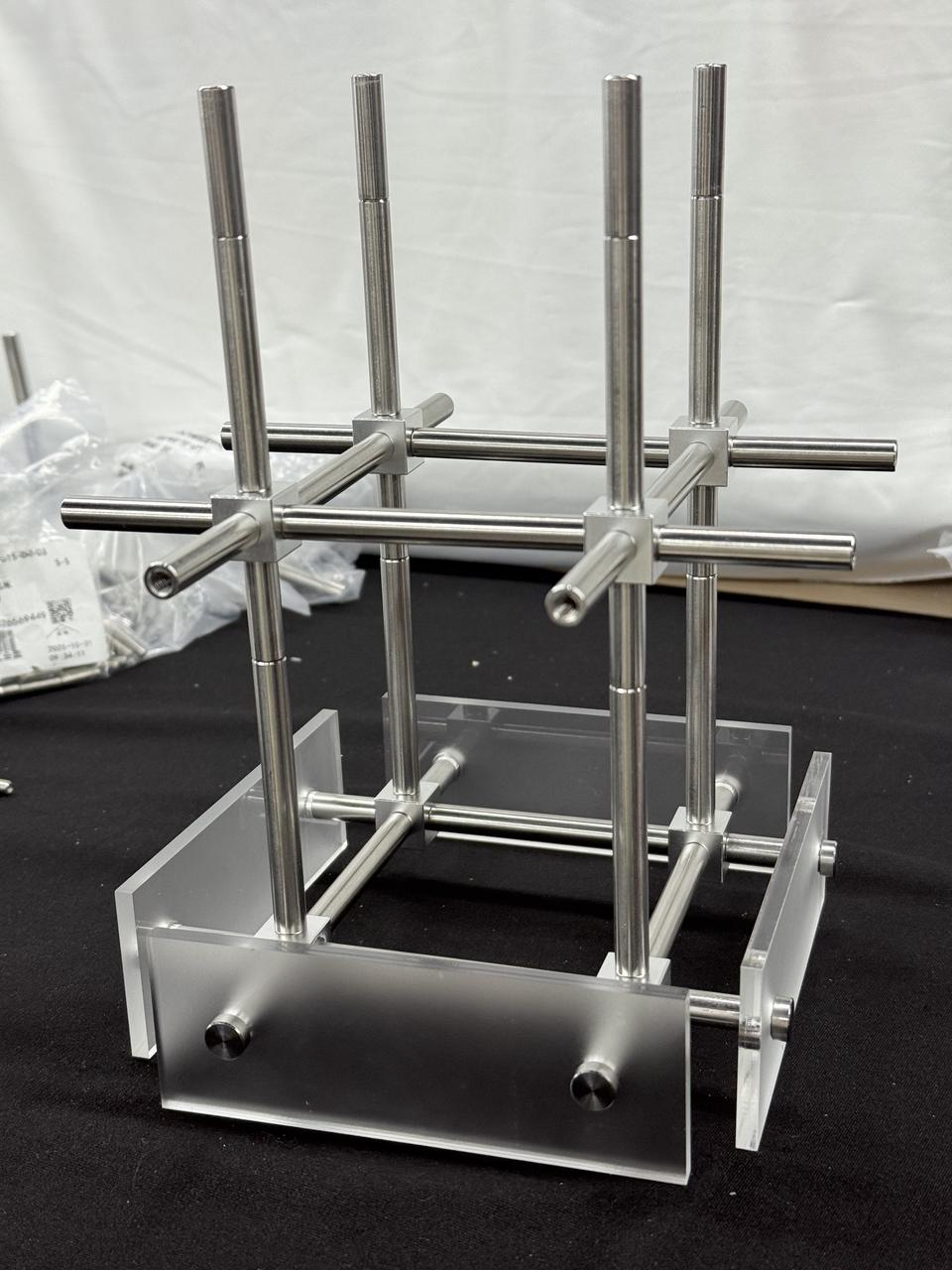

Install the underlying acrylic board.

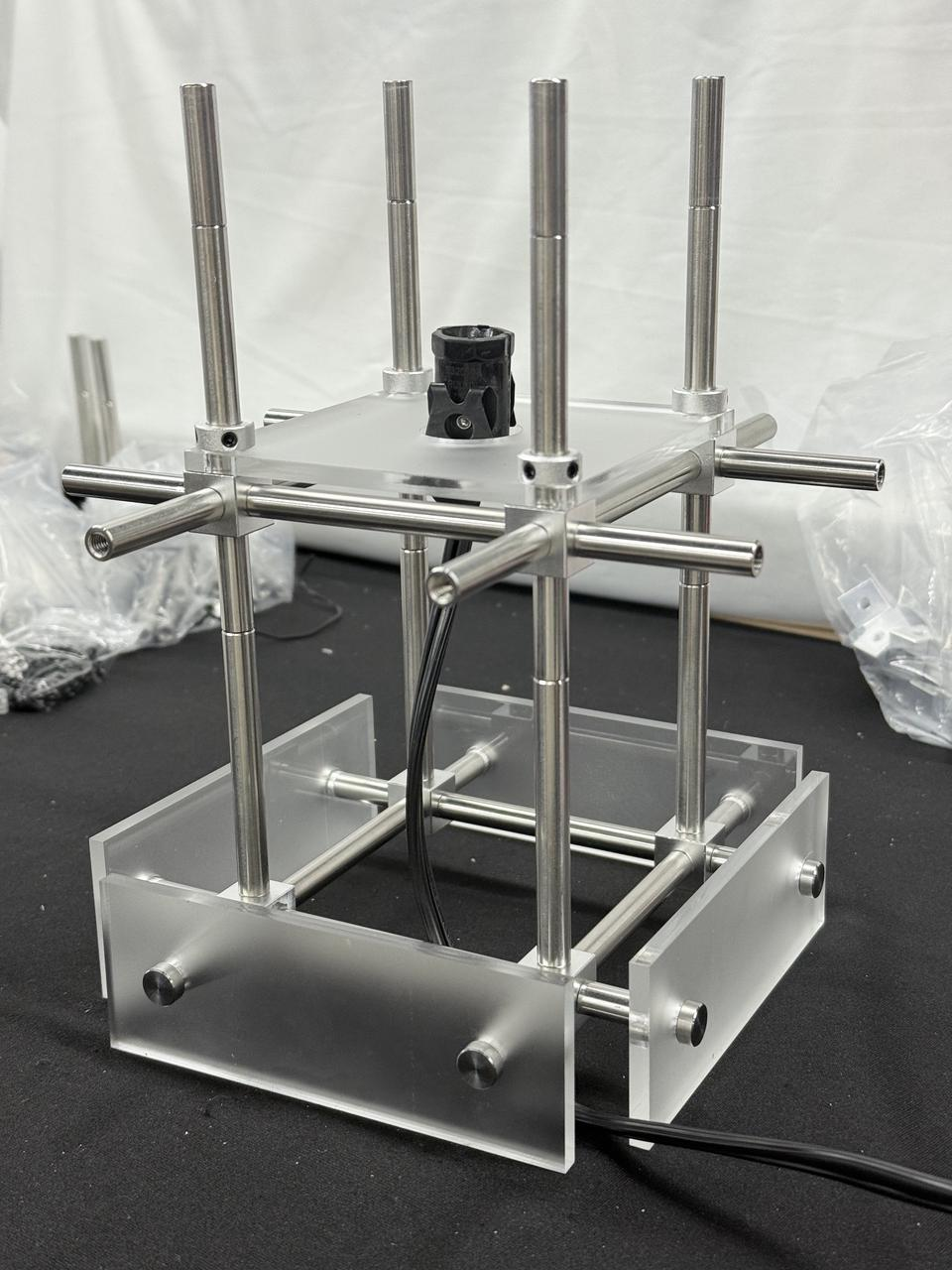

Install the middle acrylic board, lamp holder, and switch wire.

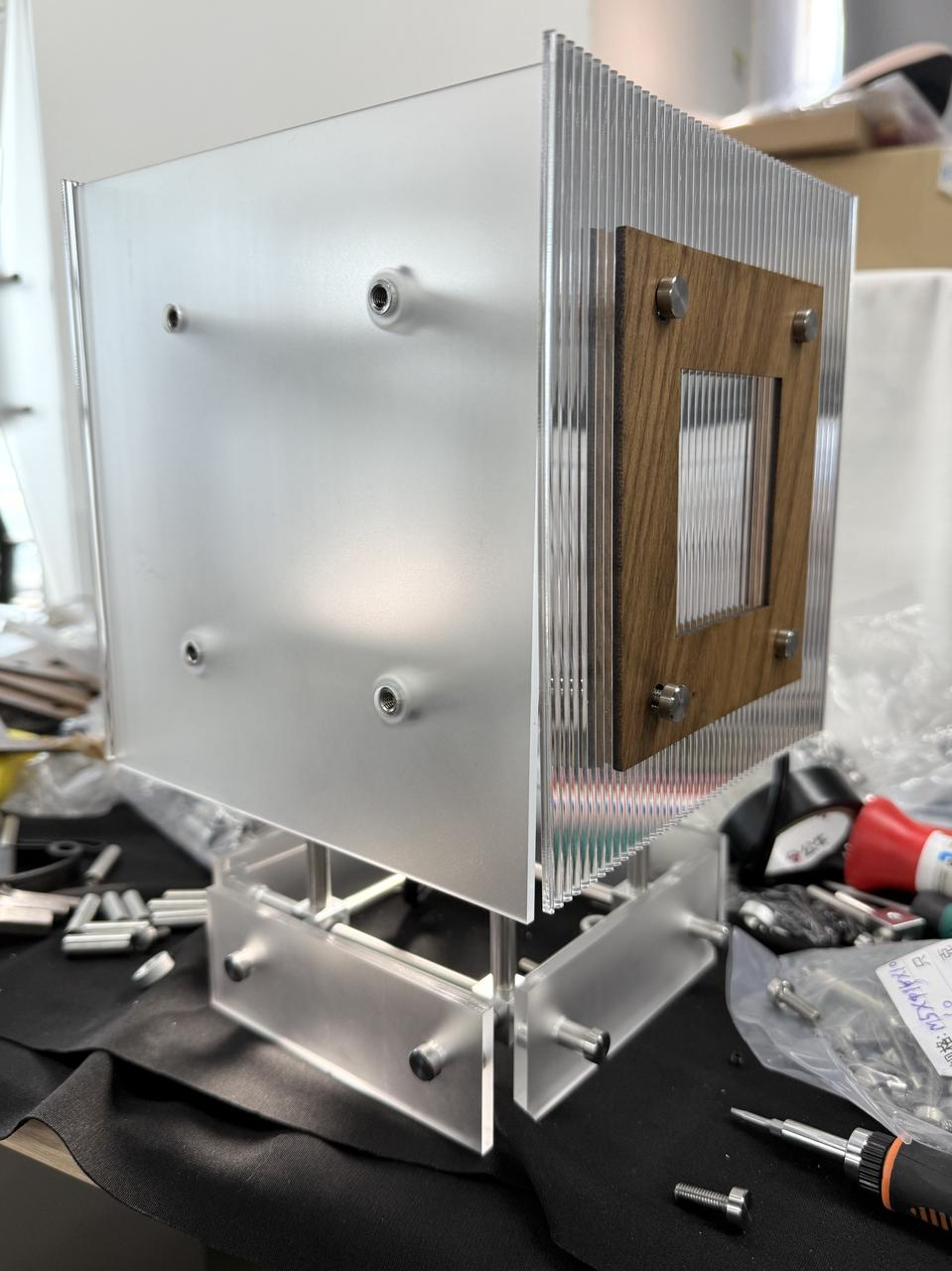

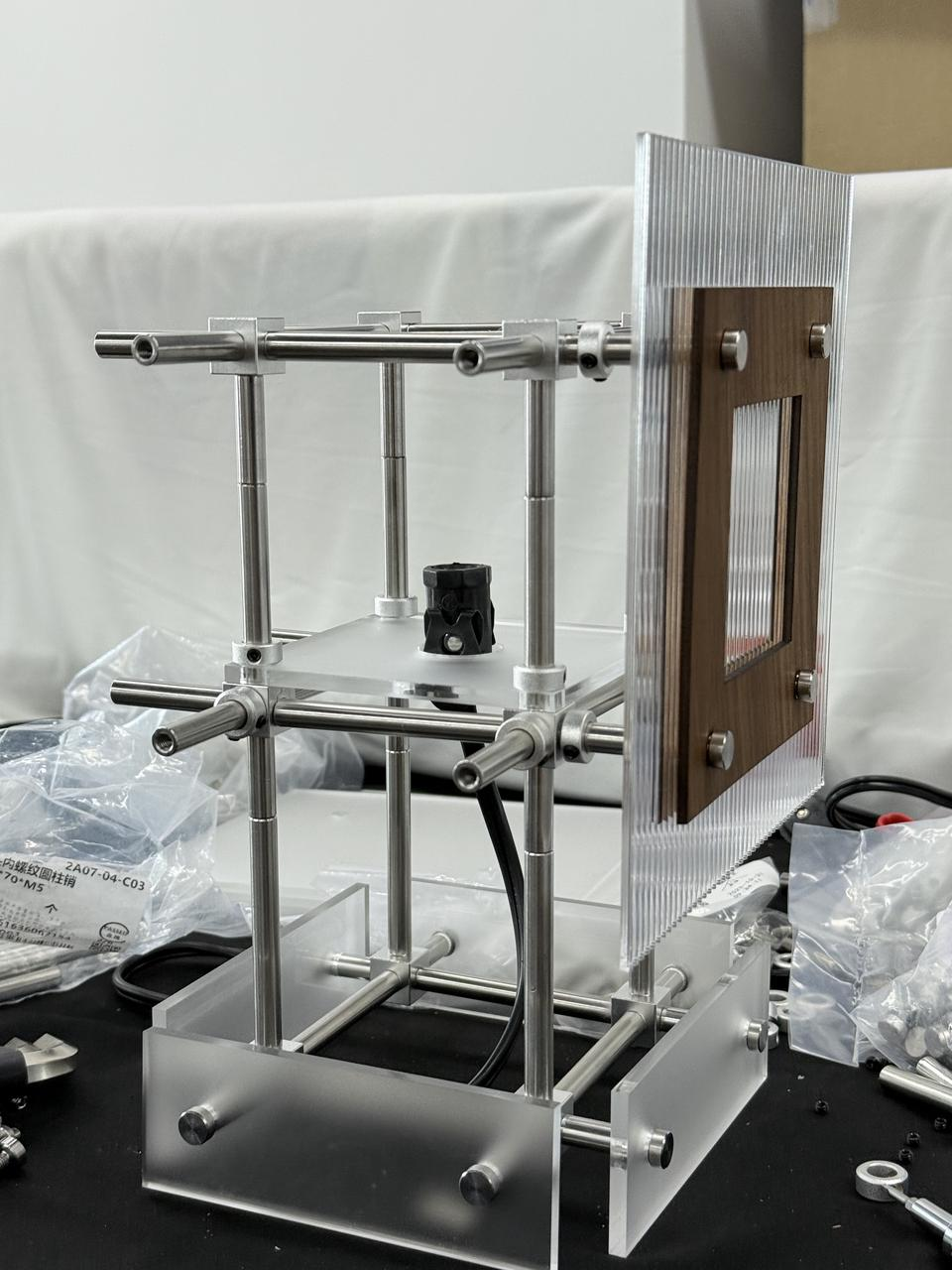

Install the outer acrylic and wooden boards.
Install the outer acrylic and wooden boards; install the light bulbs.
Done!
