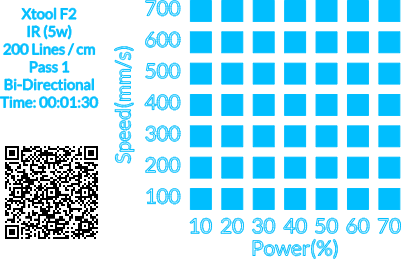

Black Coated Aluminum Card - IR Speed / Power Test Grid with QR Code
Aluminium Card IR test for xTOOL F2
.xcs
Application scenario
Other、Laser processing
Machine & module
xTool F2
5WCompatibles · 14
Material used
1/64"(0.2mm) Black Coated Aluminum Alloy
6
115
Information
Just received my F2 and did a test card based off a similar layout that another creator did for the F1.
This is using IR settings for a black coated aluminum card. Includes QR code to the xTool materials listing. I did not bother doing one for blue diode as I think the IR is the preferred laser to use with metal. If people really want it and request it, I will do another for the blue diode laser.
As with any engraving of this type, you may find a clearer result to review, after wiping/cleaning the surface with a little alcohol or cleaning solution.
