Eiffel Tower Inner Engrave in K9 Crystal Glass
Instruction
Eiffel Tower-3D Inner Crystal Engrave
.xcs
Application scenario
Laser processing (60min)
Machine & module
xTool F2 Ultra UV
5WMaterial used
K9 Inner Carved Glass
7
Information
3D K9 crystal inner engrave with the F2 Ultra UV laser of an aiMake generated Eiffel Tower model
Instruction
1
Step1: Prepare the project and material
- Select Inner engrave process mode
- Install Inner Engraving lens
- Select material: K9 Inner Carved Glass
- Install Riser base
- Center K9 crystal glass block on riser (50x50x100mm)
- Click on Inner Engraving Settings
- Follow onscreen instructions to set material dimensions and position
- Import the resulting canvas
2

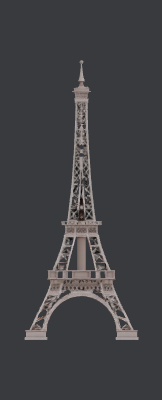

Step2: Generate Eiffel Tower model, place on canvas
- Click on the AImake icon (make sure you are logged in as a user)
- At the bottom left of the screen click on the Choose Style icon
- Select 3D Modeling
- Select General (No Texture) style
- Enter prompt: Detailed 3D model of Eiffel Tower
- Add model to the workspace
3
Step3: Position model, configure object settings, run the project
Preview
Preview
Preview
Preview
- Click on the model, then in the object toolbar, click on the Autofit icon
- Alternately use the scale, rotation, place at center and other controls to position model within the block outline on canvas
- Set the object parameters
- Process the project… it takes about 40 minutes for this size
- For best viewing results, place on LED lighted base
4
Step4: A few videos of the process and finished crystal block
- A quick narrated look at the finished project
- A timelapse video of the engrave (has no sound)
