🌸 Personalized Wedding Cake Topper – Laser Cut Floral Wreath

Instruction

CakeTopperFlower

.xcs

Application scenario

Laser processing (30min)

Machine & module

xTool M1 Ultra

20W

Compatible xTool Machine

F2 Ultra UV

F2 Ultra（Single）

F2 Ultra

F1 Ultra

F1 Lite

P2S

D1 Pro 2.0

D1 Pro

Laserbox

Material used

1/8"(3mm) Basswood Plywood

156

2229

Information

Every celebration deserves a personal touch — especially weddings and birthdays.
This elegant cake topper combines natural wood, delicate flowers, and your own names, making every cake feel truly yours. Whether you’re crafting for your own big day or creating a thoughtful gift for someone special, this project is the perfect mix of creativity and love — just like a good marriage. 💍

🪵 Material Notice
This design is intended for use with thin plywood or similar materials.
Natural materials may vary in thickness, density, grain, and surface quality, which can affect fit, engraving, and cutting results.

Edges may be sharp and may show burn marks after cutting.
Light sanding is recommended before use.

💧 Wood may react to moisture and environmental conditions (e.g., warping or staining).
Not intended for prolonged outdoor use or exposure to moisture.

🔥 Laser cutting wood produces heat and may cause burn marks or ignition.
Always ensure proper ventilation and never leave the machine unattended.

⚠️ General Safety & Usage Notice
This project is intended for users familiar with laser processing and material behavior.

Laser processing involves heat, smoke, and potential fire risk.
Always operate your machine in a safe environment, ensure proper ventilation, and never leave the machine unattended.

Results may vary depending on machine type, material, settings, and environmental conditions.
Always test on small samples before processing final pieces.

Materials such as wood, cork, paper, or similar natural products may vary in color, density, and structure, which can affect the outcome.

Tested on our machines with similar materials.

⚠️ Important
This project is provided as a digital design only.
We do not manufacture or control the final physical product.

The user is fully responsible for the correct use of materials, machine settings, and the final application of the product.

⚖️ Disclaimer
To the fullest extent permitted by law, we are not responsible for any damage, injury, or loss resulting from the use of this design, files, or instructions.

Instruction

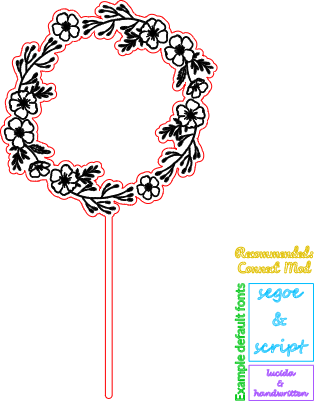

Step1: Download the Template

Preview

Start by downloading the provided design file.
Inside, you’ll find:

A floral wreath base

Two example fonts you can use freely

A recommended professional font that’s perfect for laser cutting.

👉 Recommended font: Connected Script Font on Etsy
This font isn’t ours, but it’s highly recommended because it cuts beautifully and keeps all letters connected — perfect for clean and strong results.

Step2: Add Your Text (page 2)

Preview

Type the names or text you want to appear inside the wreath (e.g., Lina & Markos).
Position your text carefully in the center of the floral frame. You can use the grid for alignment to make sure everything sits symmetrically.

Step3: Merge the Text and Frame

Preview

Now, select your text and use the “Unite” function to connect all letters together.
Then, while both the text and wreath are selected, use “Unite” to merge them into one continuous outline.
This ensures your topper will cut as a single, solid piece — no loose letters, no fragile connections.

Step4: Choose Your Laser Settings

Preview

Set up your xTool machine for engraving and cutting:

Task	Power	Speed	Pass	Module
Engrave (Flowers)	80%	400 mm/s	1	20 W
Cut (Outline) 3mm	100%	10 mm/s	1	20 W
Cut (Outline) 1/8"	90%	4 mm/s	1	20 W

Material: 1/8" or 3 mm Basswood Plywood
Mode: “Lasering on flat surface”

These settings give a clean engraving and smooth edges — perfect for delicate shapes like the floral wreath.

Step5: Laser It!

Run your engraving pass first, then your cut pass.
Once finished, gently remove the topper from the board.

To clean it up, lightly sand the surface — this helps smooth the edges and remove any small burn marks or smoke stains from cutting.
Fine-grit sandpaper (around 400 grit) works perfectly for this.

You can leave the topper natural for a rustic look or add a touch of clear coat for a subtle shine.

Step6: Celebrate!

Your personalized wooden cake topper is ready!
Use it as a wedding decoration, birthday highlight, or anniversary keepsake. Each one tells its own story — crafted with care and a bit of laser-powered love. 💖

If you plan to ship or gift it, keep the cut-out wooden piece from the engraving process.
You can place the topper back into the original cutout for protection, then sandwich it between two thin A4-sized sheets of poplar plywood or other cheap wood.
Secure everything with a rubber band and pack it inside a cardboard envelope — this simple method prevents bending and breakage during shipping.
