Laser Cut Black Acrylic Dual Hook Stand Holder

Instruction

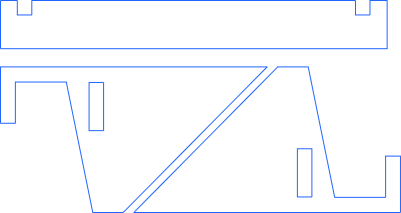

AcrylicStand

.xcs

Application scenario

Laser processing

Machine & module

xTool P2S

55W

Compatible xTool Machine

F2 Ultra UV

F2 Ultra（Single）

F2 Ultra

F1 Ultra

F1 Lite

M1 Ultra

D1 Pro 2.0

D1 Pro

Laserbox

Material used

1/8"(3mm) Black Acrylic

177

2083

Information

      Quick hook style stand.  Designed to be cut from 3mm material.  No gluing required, stand is easily assembled/disassembled by locking 2 side pieces with the center bar linking them through the cutouts.  Be sure the cutouts on the center bar face down.

Instruction

Step1

Cut at recommended settings for model. The 2 hook pieces are identical and the center bar sets your width.

If you are intending on displaying a round object, this stand does not have the clearance for the curved edge.

If you are using a different thickness of material (other than 3 mm), you will need to adjust the cut area where the center bar and both sides come together.
